Chapter 2: Jumpers and Connectors

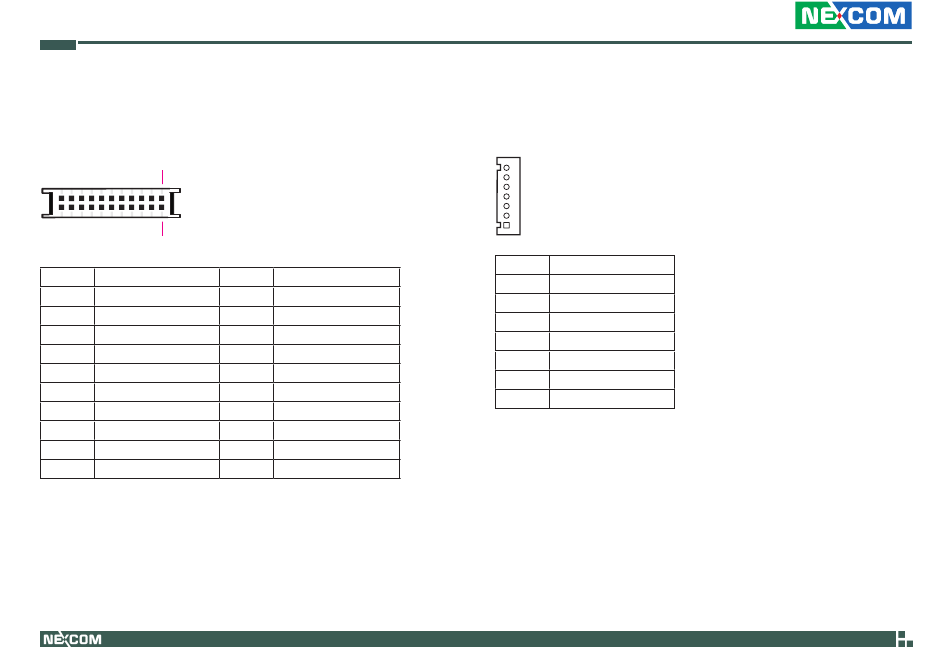

LVDS Channel B Connector

Connector size: LCD-1.25mm-M-180
Connector location: CN1
MH1
1 19
2 20
MH2
Pin Definition
1 L_DDC_CLK
3 PANEL_VDD
5 LB_DATAP3
7 LB_DATAN3
9 GND
11 LB_CLKP
13 LB_CLKN
15 GND_LVDS
17 LB_DATAP2
19 LB_DATAN2
Copyright © 2009 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 L_DDC_DATA
4 LB_DATAP0
6 LB_DATAN0
8 PANEL_VDD
10 LB_DATAP1
12 LB_DATAN1
14 GND
16 +12V
18 +12V
20 GND
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

LVDS Backlight Connector

Connector size: 1x7 (JST-2.5mm-M-180)
Connector location: J2
7
1
Pin Definition
1 VCC5
2 +12V
3 +12V
4 BKLTCTL
5 GND
6 GND
7 BKLTEN
27
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual
