Chapter 3: System Setup

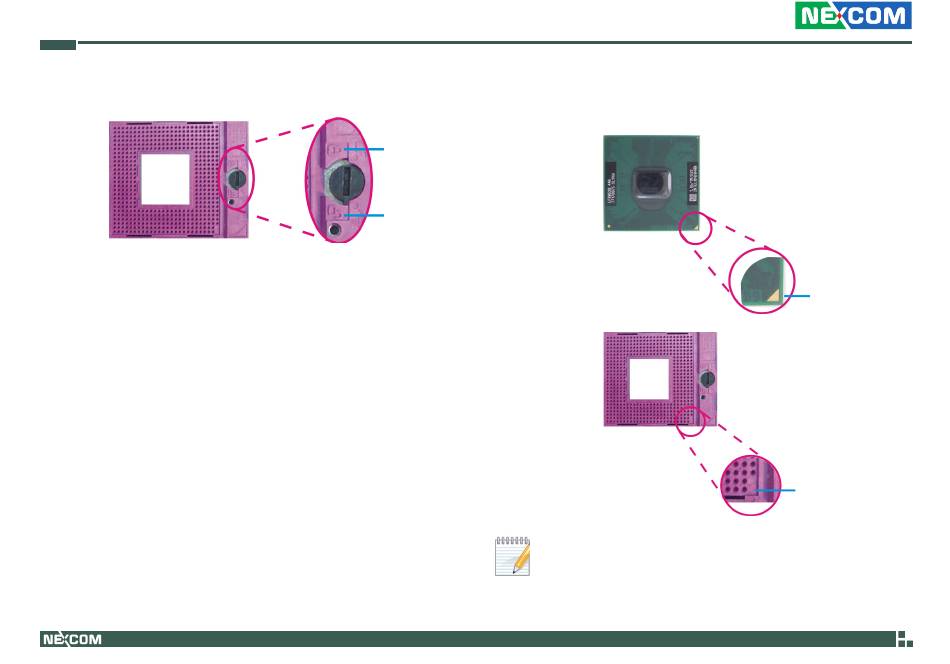

3. Use a screwdriver to turn the screw to its unlocked position.
Copyright © 2009 NEXCOM International Co., Ltd. All Rights Reserved.
Locked
Unocked
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
4. Position the CPU above the socket. The gold triangular mark on the
CPU must align with pin 1 of the CPU socket.
Handle the CPU by its edges and avoid touching the pins.
44
Gold triangular
mark
Pin 1
NISE 3140, NISE 3140E, NISE 3140P2, NISE 3140P2E User Manual
