Summary of Contents for Promac PBD-2870

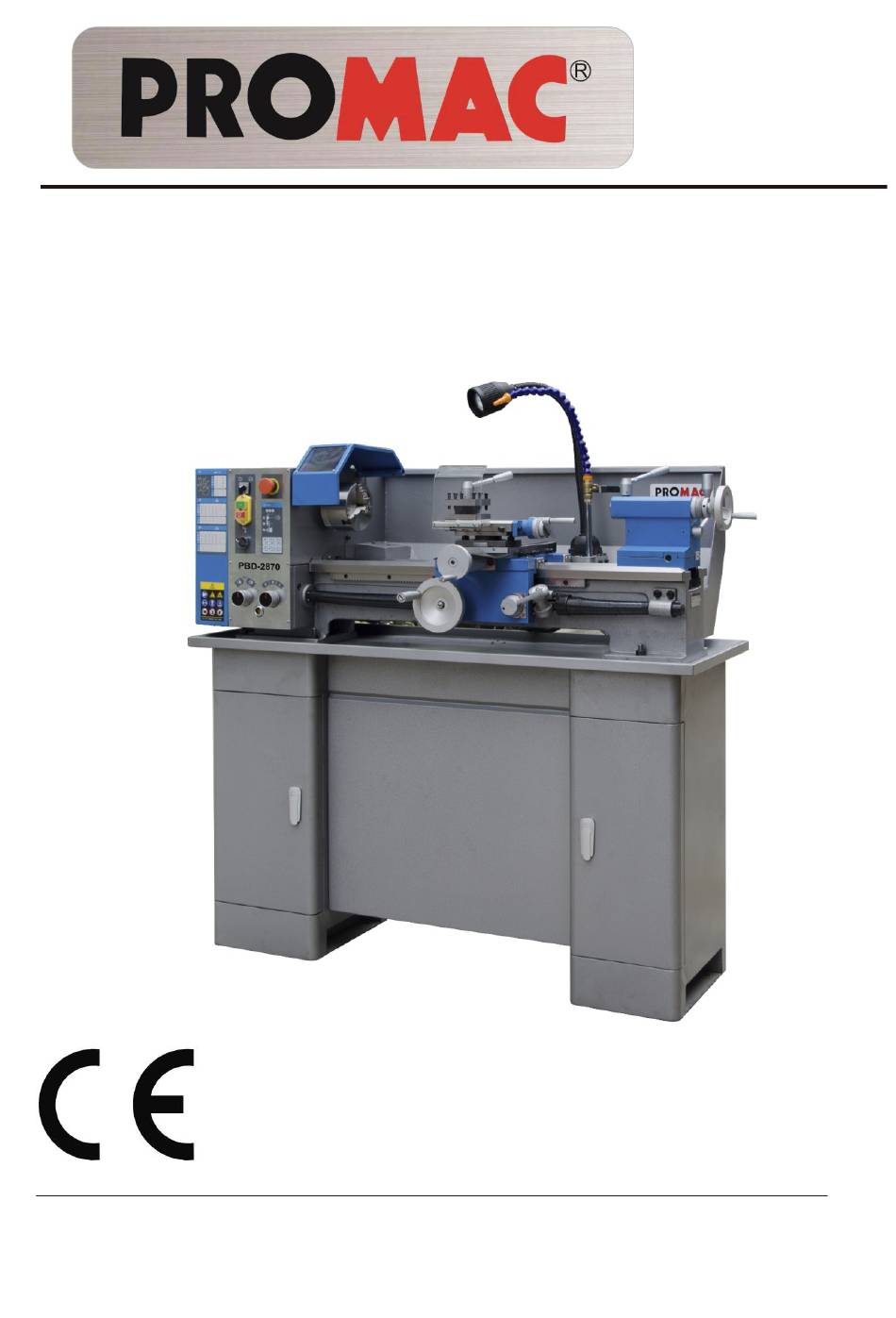

- Page 1 Metal Lathe PBD-2870 Metalldrehbank Tour à métaux Schweiz / Suisse France TOOL France / PROMAC JPW (TOOL) AG 57, rue du Bois Chaland, Z.I. du Bois Chaland Tämperlistrasse 5 case postale 2935 FR-91029 Evry Cedex CH-8117 Fällanden Switzerland www.promac.fr...
- Page 2 CE‐Conformity Declaration CE‐Konformitätserklärung Déclaration de Conformité CE Product / Produkt / Produit: Metal lathe / Metalldrehbank / Tour à métaux PBD‐2870 Brand / Marke / Marque: PROMAC Manufacturer / Hersteller / Fabricant: JPW (Tool) AG, Tämperlistrasse 5, CH‐8117 Fällanden Schweiz / Suisse / Switzerland We hereby declare that this product complies with the regulations Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht Par la présente, nous déclarons que ce produit correspond aux directives suivantes 2006/42/EC Machinery Directive Maschinenrichtlinie Directive Machines 2014/30/EU electromagnetic compatibility elektromagnetische Verträglichkeit compatibilité électromagnétique designed in consideration of the standards und entsprechend folgender zusätzlicher Normen entwickelt wurde et été développé dans le respect des normes complémentaires suivantes EN ISO 12100:2010 EN ISO 23125:2015 EN 60204‐1:2006/AC2010 EN 61000‐6‐2:2005 EN 61000‐6‐4:2007/A1:2011 ...
-
Page 3: Table Of Contents
EN Operating Instructions (Original) 1.0 About this Manual This manual is provided by PROMAC, covering the safe operation and maintenance procedures for a PROMAC Model PBD‐ 2870 Metal Lathe. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. The machine has been designed and constructed to provide consistent, long‐ term operation if used in accordance with the instructions as set forth in this document. Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it. 2.0 Table of Contents Section Page 1.0 About this manual .............................. 3 2.0 Table of contents .............................. 3 3.0 Important safety instructions .......................... 4~5 3.1 Designated use and limitations to use ...................... 6 ... -
Page 4: Important Safety Instructions
12. Make certain the machine is properly grounded. Connect to a properly grounded outlet only. See Grounding 3.0 IMPORTANT SAFETY instructions. INSTRUCTIONS 13. Make all machine adjustments or maintenance with the machine unplugged from the power source. READ ALL INSTRUCTIONS BEFORE USING THIS DRILL PRESS. 14. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting wrenches are removed from the machine before turning it on. ... - Page 5 31. Remove loose items and unnecessary work pieces from 32. Pull the mains plug if the machine is not in use. the area before starting the machine. 33. Make sure the workpiece is securely clamped. Familiarize yourself with the following safety notices used in this manual: WARNING: This means that if precautions are not heeded, it may result in serious, or possibly even fatal, injury. CAUTION: This means that if precautions are not heeded, it may result in minor injury and/or possible machine damage. SAVE THESE INSTRUCTIONS WARNING: These symbols blow advise that you follow the correct safety procedures when using this machine. Read and understand the entire user manual before attempting assembly or Any work piece stock extending the rear machine operation. end of the headstock must be covered on its entire length. High danger of injury ...
-
Page 6: Designated Use And Limitations To Use
3.1 Designated use and limitations to use The machine is designed for turning and drilling machinable metal and plastic materials only. The workpiece must allow to safely be loaded, supported and clamped. The machine is intended for indoor use. The protection rating of the electrical installation is IP 54. To avoid tipping, the machine must be bolted down with four anchor bolts. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. WARNING: The machine is not suitable for machining magnesium…high danger to fire ! Never place your fingers in a position where they could contact any rotating parts or chips. Check the save clamping of the work piece before starting the machine. Don’t exceed the clamping range of the chuck. Work pieces longer than 3 times the chucking diameter need to be supported by the tailstock or a steady rest. Avoid small chucking diameters at big turning diameters. Avoid short chucking lengths and small chucking contact. Do not exceed the max speed of the work holding device. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for which it was not designed. The right tool will do the job better and more safely. Use recommended accessories; improper accessories may be hazardous. Maintain tools with care. Keep cutting tools sharp and clean for the best and safest performance. Follow instructions for lubricating and changing accessories. Do not attempt to adjust or remove tools during operation. Never stop a rotating chuck or workpiece with your hands. Choose a small spindle speed when working unbalanced work pieces and for threading and tapping operations. Any work piece stock extending the rear end of the headstock must be covered on its entire length. High danger of injury! Long work pieces may need a steady rest support. A long and thin work piece can suddenly bend at high speed rotation. Never move the tailstock or tailstock quill while the machine is running. Remove cutting chips with the aid of an appropriate chip hook when the machine is at a standstill only. Measurements and adjustments may be carried out when the machine is at a standstill only. Maintenance and repair work may only be carried out after the machine is protected against accidental starting, pull the mains plug. Remove loose items and unnecessary work pieces from the area before starting the machine. Rotate workpiece by hand before applying power. Use lowest speed when starting new workpiece. Tighten all locks before operating. 3.2 Remaining hazards When using the machine according to regulations some remaining hazards may still exist. The rotating work piece and chuck can cause injury. Thrown and hot work pieces and cutting chips can lead to injury. Chips and noise can be health hazards. Be sure to wear personal protection gear such as safety goggles and ear protection. The use of incorrect mains supply or a damaged power cord can lead to injuries caused by electricity. ... -
Page 7: Specifications
4.0 Specifications Model number .................................... PBD‐2870 Stock number……………………………………………………………………. ...................... PBD‐2870 Motor and electricals: Motor type……………………………………………………. ...................... I nduction motor Motor power .................................... 1 .1 kW Power supply ................................ 1~230V, PE, 50 Hz Protection class .................................... I P 54 Listed load amps .................................... 6 .4 A Machine lamp .............................. Halogen lamp 24V, 35 W Coolant pump .................................... 40 W Capacities: Centre height .................................... 1 40 mm ... - Page 8 4.1 Spindle nose mounting: Figure 4‐1: Spindle nose mounting 4.2 Anchor bolt hole pattern: Figure 4‐2: Lathe Bed (left) & Stand (right) anchor bolt pattern WARNING: To avoid tipping, the machine must be bolted down with four anchor bolts (not provided). ...
-
Page 9: Machine Description
5.0 Machine Description Figure 5‐2: Machine description R ........... Feed speed select knob S ........ Feed forward/off/reverse T ............ Coolant ON/OFF Figure 5‐1: Machine description U .......... S pindle power ON/OFF V ......... Spindle forward/reverse A .......... Machine cabinet stand X ............Emergency Stop B .............. Gear box Y ........... Apron hand wheel C ..............Pulley cover ... -
Page 10: Setup And Assembly
6.0 Setup and Assembly Warning: The machine is heavy (240 kg)! Assure the sufficient load capacity and proper condition of your WARNING: lifting devices. Read and understand the entire contents of this manual Never step underneath suspended loads. before attempting assembly or operation. Failure to comply To avoid tipping, the machine must be bolted down with four may cause serious injury. anchor bolts (not provided). 6.1 Unpacking and clean up To avoid twisting the bed, make sure the setup surface is absolutely flat and level. Remove all contents from shipping crate and compare parts to the contents list in this manual. If shipping damage or any part Loosen anchor bolts, shim and tighten bolts if needed. shortages are identified, contact your distributor. Do not The machine must be level to be accurate ! discard crate or packing material until drill press is assembled and running satisfactorily. Clean all rust protected surfaces with kerosene or a light 7.0 Electrical Connections ... -
Page 11: Extension Cords
8.2 Change gear setup electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug Remove the pulley cover. provided with the tool. The rotational speed of the lead screw, and hence the rate of The green/yellow conductor is the equipment‐grounding feed of the cutting tool, is determined by the gear conductor. If repair or replacement of the electric cord or plug configuration and by the feed speed select lever (R, Fig 5‐2). is necessary, do not connect the equipment‐grounding conductor to a live terminal. Assemble the gears with desired setup (Fig 8‐2) Use only 3‐wire extension cords with grounding plugs. Repair or replace damaged or worn cord immediately. 7.2 Extension cords The use of extension cords is discouraged; try to position machines ... -
Page 12: Taper Turning With Tailstock
8.3 Taper turning with tailstock Mount the work piece fitted with the drive dog between centres. The drive dog is driven by the face plate. Lubricate the tailstock centre with grease to prevent tip from overheating. Figure 8‐5: Three jaw universal chuck To hold big diameter stock, a set of OD chuck jaws is supplied. The jaws need to be inserted to the chuck in the correct order. Use Molykote Paste G (or adequate grease) to lubricate the jaws. 8.6 Four jaw independent chuck (Optional) Figure 8‐3: Taper turning between centres This chuck has four independently adjustable chuck jaws (Fig 8‐6). ... - Page 13 Figure 8‐7: Live centre To eject the live centre, fully retract the tailstock quill. 8.8 Steady rest and follow rest (Optional) The rests prevent flexing of long and thin work pieces under Figure 8‐9: Follow rest pressure from the tool. The steady rest (Fig 8‐8) serves as a support for longer shafts and ensures a safe and chatter free operation. Note: Set the fingers (2) snug but not overly tight. Lubricate the fingers to prevent premature wear. Figure 8‐8: Steady rest The follow rest (Fig 8‐9) is mounted on the carriage and follows the movement of the tool. ...
-
Page 14: Operating Controls
Jaw teeth and scroll must always be fully engaged. Otherwise 9.0 Operating Controls chuck jaws may break and fly off in rotation (Fig 10‐1). Refer to Figure 9‐1: R .......... Feed select knob S ....... Feed forward/off/reverse T .......... Coolant ON/OFF U ........ Spindle power ON/OFF V ......... Spindle forward/reverse X .......... Emergency Stop Figure 10‐1: Poor jaw engagements Avoid long workpiece extensions. Parts may bend (Fig 10‐2) or fly off (Fig 10‐3). Use tailstock or rest to support. Figure 10‐2: Workpiece too long Figure 9‐1: Operating Controls 10.0 Machine Operation 10.1 Cutting execution Before starting the machine check the proper chucking. Close the chuck guard and pulley cover before you start the machine. ... -
Page 15: Cutting Tool Setup
10.3 Cutting Tool Setup 10.5 Manual turning The cutting angle is correct when the cutting edge is in line Apron travel (Y, Fig 10‐6), cross travel (Z) and top slide travel with the centre axis of the work piece. Use the point of the (BB) can be operated for longitudinal and cross feeding. tailstock centre as a gauge and shims under the tool to obtain the correct centre height (Fig 10‐5). Figure 10‐6: Machine controls Figure 10‐5: Cutting tool setup The correct feed depends on the material to be cut, the cutting Use a minimum of two screws to clamp the cutting tool. operation, the type of tool, the rigidity of the work piece Avoid large tool extensions. ... -
Page 16: Thread Cutting
10.7 Thread cutting Threading is performed in multiple passes with a threading tool. Each depth of cut should be about 0,2mm and become less for the finishing passes. A) Cut inch and metric threads: Set the machine up for the desired threading pitch (see chapter 8.2). Select the lowest possible spindle speed. Engage the halve nut (AA, Fig 10‐6). NOTE: The halve nut must stay engaged during the entire threading process. ... -
Page 17: User-Maintenance
11.0 User‐Maintenance WARNING: Before any intervention on the machine, disconnect it from electrical supply, pull the mains plug. Failure to comply may cause serious injury. An important security factor is the cleaning of the machine, of bed, carriage and slides, of the floor and the surrounding places. Loose objects could come into contact with the moving chuck or workpiece, creating hazards. Empty the chip tray regularly. Figure 11‐1: Gearbox oil fill‐up Replace the coolant regularly, follow manufacturer’s advice. Change the oil in the gearbox every 1000 operating hours. Check that bolts are tight and electrical cords are in good Drain oil by removing drain plug (K). condition. If an electrical cord is worn, cut, or damaged in any way, have it replaced immediately. 11.2 Readjustments A) Bearing adjustment: 11.1 Lubrication The main spindle taper roller bearings are adjusted at the Spindle bearings are pre‐lubricated and sealed, and require no factory. further lubrication. If end play becomes evident after considerable use the bearings may be adjusted. A) Weekly apply oil: ... - Page 18 B) Cross slide and Top slide adjustment: Each slide is fitted with a gib (C, Fig 11‐3) and can be adjusted with screws (E) fitted with lock nuts (D). Figure 11‐3: Slide adjustment Adjust until slides move freely without play. C) Cross slide spindle adjustment Remove the top slide and adjust the grub screw (F, Fig 11‐4) until the backlash between the spindle and the nut is eliminated. ...
-
Page 19: Troubleshooting
12.0 Troubleshooting Symptom Possible Cause Correction * Lathe unplugged from wall, or motor. Check all plug connections. Fuse blown, or circuit breaker tripped. Replace fuse, or reset circuit breaker. Lathe will not start. Cord damaged. Replace cord. Chuck guard not closed. Close chuck guard. Pulley cover removed Install pulley cover Extension cord too light or too long. Replace with adequate size and length cord. Lathe does not come up to speed. Low current. Contact a qualified electrician. Base on uneven surface. Locate lathe on even floor. Lathe not bolted to the floor Bolt machine to the floor Unbalanced workpiece Reduce speed Improve chucking length or diameter, support on Workpiece deflection tailstock end Lathe vibrates excessively. Tool deflection Reduce tool length Slide backlash Adjust slides Slides running dry Lubricate with oil Dull tool tip Re‐sharpen or change tool Chip load too high ... -
Page 20: Replacement Parts
15.0 Replacement Parts PBD‐2870 Assembly Breakdown ‐1 ... - Page 21 PBD‐2870 Parts List for Breakdown ‐1 Index Part No. No. Description Size Qty. 201 .. PBD2870‐1‐201 ...... Q UILL .............. ........ 1 202 .. PBD2870‐1‐202 ...... L EADSCREW ............ ........ 1 203 .. GB109679‐3‐10 ...... F LAT KEY .............. 3 x 10 mm ....... 1 204 .. PBD2870‐1‐204 ...
- Page 22 PBD‐2870 Assembly Breakdown ‐2 ...
- Page 23 PBD‐2870 Parts List for Breakdown ‐2 Index Part No. No. Description Size Qty. 401 .. PBD2870‐2‐401 ...... F RONT PANEL ............ ........ 1 402 .. GB702‐4‐10S ...... S OCKET BUTTON HD SCREW ........ M 4 × 10 mm .... 4 403 .. PBD2870‐2‐403 ...... L EADSCREW COVER .......... ........ 2 404 .. GB617286‐10 ...... H EX NUT (THIN) ............ M 10 ...... 4 405 .. PBD2870‐2‐405 ...
- Page 24 PBD‐2870 Assembly Breakdown ‐3 ...
- Page 25 PBD‐2870 Parts List for Breakdown ‐3 Index Part No. No. Description Size Qty. 301 .. GB8941‐12 ...... C IRCLIP FOR SHAFT .......... 1 2 ......... 1 302 .. PBD2870‐3‐302 ...... G EAR. .............. ........ 1 303 .. GB8941‐12 ...... C IRCLIP FOR SHAFT .......... 1 2 ......... 1 304 .. PBD2870‐3‐304 ...... S HAFT C .............. ........ 1 305 .. GB8941‐16 ...... C IRCLIP FOR SHAFT .......... Φ 16 ...... 1 306 .. PBD2870‐3‐306 ...
- Page 26 PBD‐2870 Assembly Breakdown ‐4 ...
- Page 27 PBD‐2870 Parts List for Breakdown ‐4 Index Part No. No. Description Size Qty. 501 .. JBT7940495‐6 ...... B ALL OILER .............. Φ 6 ........ 2 502 .. GB7085‐8‐35 ...... S OCKET HD SCREW .......... M 8 × 35 mm .... 1 503 .. PBD2870‐4‐503 ...... R AIL… ............ ........ 1 504 .. PBD2870‐4‐504 ...... B RACKET .............. ........ 1 505 .. GB7085‐5‐10 ...
- Page 28 PBD‐2870 Assembly Breakdown ‐5 ...
- Page 29 PBD‐2870 Parts List for Breakdown ‐5 Index Part No. No. Description Size Qty. 28 .. PBD2870‐5‐28 ...... S PRING .............. 0 .8 x 5 x 15 mm .... 1 29 .. GB30889‐5 ...... S TEEL BALL .............. 5 ........ 1 40 .. JBT7940495‐6 ...... B ALL OILER .............. 6 ........ 2 71 .. PBD2870‐5‐71 ...... A PRON .............. ........ 1 72 .. PBD2870‐5‐72 ...
- Page 30 PBD‐2870 Assembly Breakdown ‐6 ...
- Page 31 PBD‐2870 Parts List for Breakdown ‐6 Index Part No. No. Description Size Qty. 20 .. GB7085‐5‐20 ...... S OCKET HD SCREW .......... M 5 × 20 mm .... 3 21 .. TBB‐51101 ...... T HRUST BALL BEARING ........... 5 1101 ...... 2 22 .. PBD2870‐6‐22 ...... S PRING .............. 6 ........ 1 23 .. PBD2870‐6‐23 ...... W ASHER .............. ........ 1 24 .. GB7085‐5‐10 ...
- Page 32 PBD‐2870 Assembly Breakdown ‐7 ...
- Page 33 PBD‐2870 Parts List for Breakdown ‐7 Index Part No. No. Description Size Qty. 1 ... PBD2870‐7‐1 ...... H ANDLE .............. ........ 1 3 ... PBD2870‐7‐3 ...... H ANDLE SEAT ............ ........ 1 4 ... PBD2870‐7‐4 ...... W ASHER .............. ........ 1 5 ... PBD2870‐7‐6 ...... Q UADRUPLE TOOL HOLDER ........ ........ 1 6 ... GB7085‐8‐35 ...
-
Page 34: Wiring Diagrams
16.0 Wiring Diagrams PBD‐2870 ……………….1~230V, PE, 50Hz ... - Page 35 PBD‐2870 Electrical Parts List ITEM DESCRIPTION TYPE SPECIFICATION Qty. Note IP‐55 AC‐1 18A Ue250V SB1 Magnetic Contactor KJD17GF 1 AC‐3 15A CE Ue 250V IEN 12A 5E4 SA1 Fwd/0/Rev ‐ Switch ZH‐A 1 CE UI 690V IEN 20A KM Contactor LC1K0910 1 CE 20VA 230VAC TC1 Transformer 230V/24V/20VA 1 CE 20VA 230VAC TC2 ...
