7.4

Adding Device Profiles


Click on the Profile Loader button

Choose the Profile to load from the drop down.

Choose the appropriate Connection and Node ID for both the incoming Modbus device and the
mapped BACnet output.

Click Add to include the device profile in the Configuration.

Repeat for all Modbus Devices you plan on connecting to the EZ Gateway

Click the Save button in the Controls Section once completed adding all device profiles.

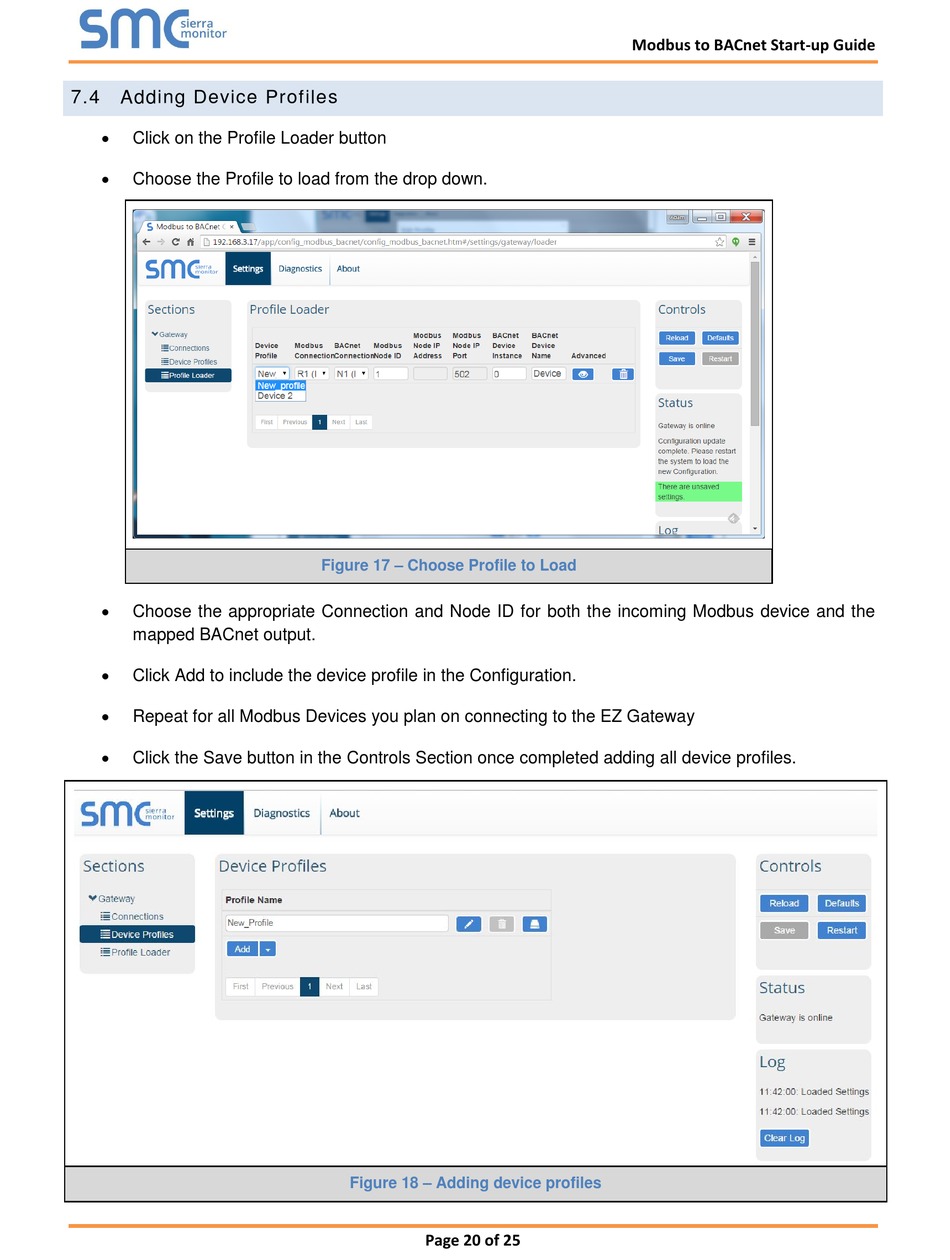

Figure 17 – Choose Profile to Load
Figure 18 – Adding device profiles
Page 20 of 25
Modbus to BACnet Start-up Guide
