6.3.2 Using a Web Browser directly


Open a Web Browser and connect to the EZ Gateway's Default IP address. The Default IP
Address of the BACnet Router is 192.168.2.101, Subnet Mask is 255.255.255.0

If the PC and the EZ Gateway are on different IP Networks, assign a Static IP Address to the
PC on the 192.168.2.X network.
6.4

Set IP Address of the EZ Gateway

6.4.1 Using the Toolbox Application to set the IP address:


From the Toolbox main page, click on the setup icon (the gear picture).

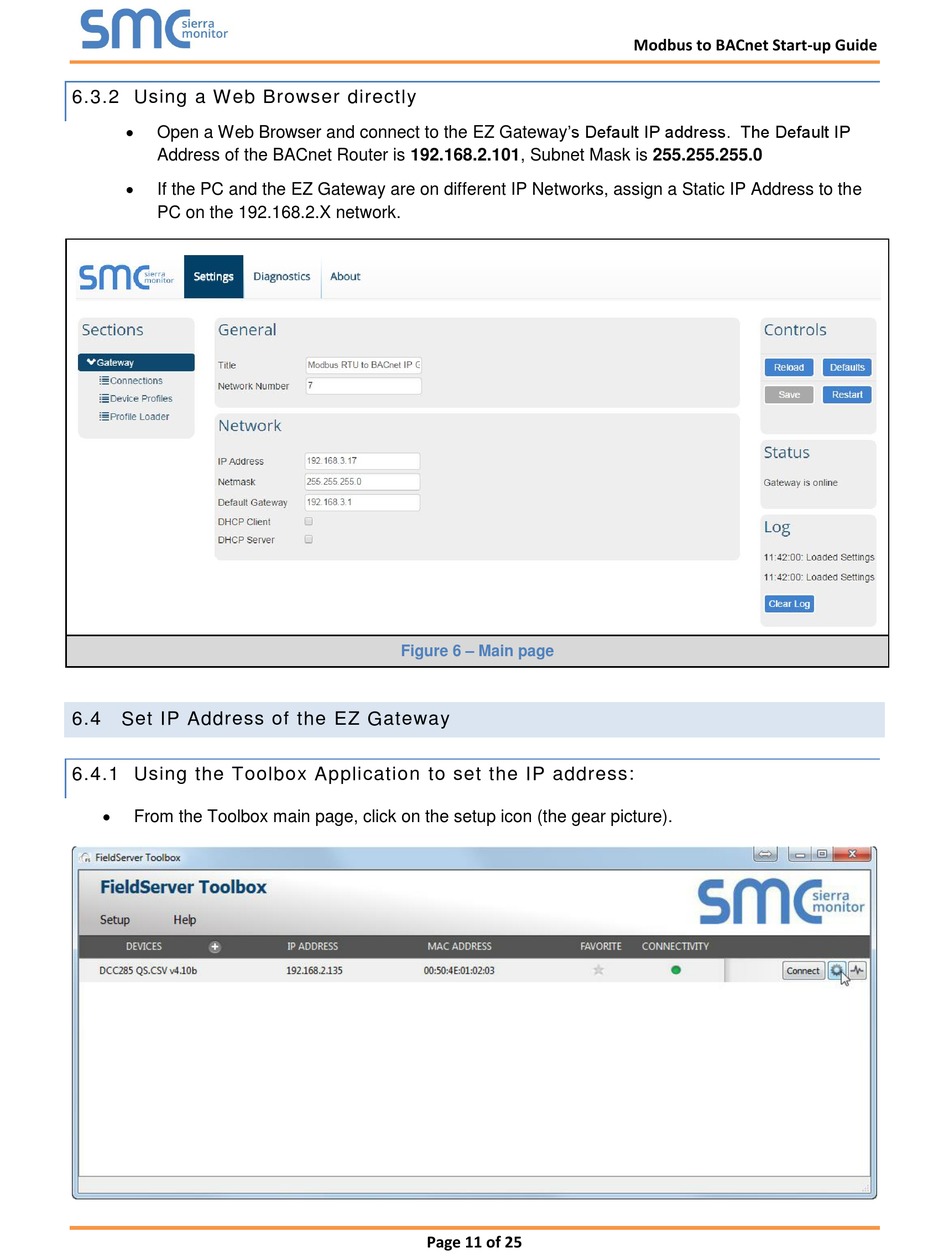

Figure 6 – Main page
Page 11 of 25
Modbus to BACnet Start-up Guide
