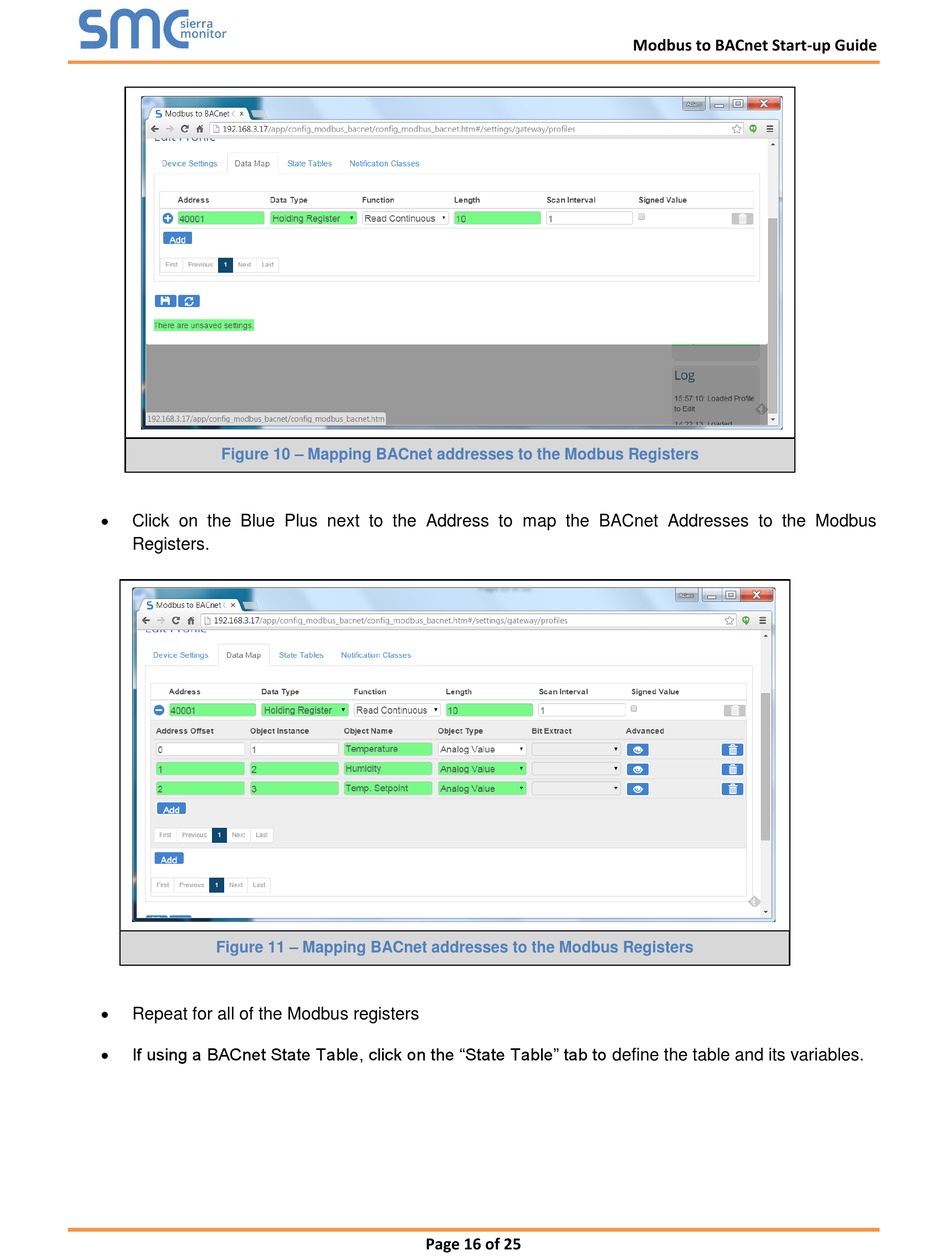

Figure 10 – Mapping BACnet addresses to the Modbus Registers

Click on the Blue Plus next to the Address to map the BACnet Addresses to the Modbus
Registers.
Figure 11 – Mapping BACnet addresses to the Modbus Registers

Repeat for all of the Modbus registers

If using a BACnet State Table, click on the "State Table" tab to define the table and its variables.
Page 16 of 25
Modbus to BACnet Start-up Guide
