Exsys EX-1144HMVS Manual

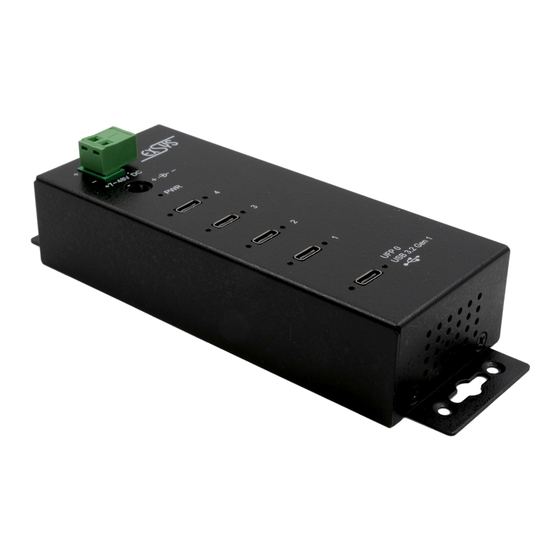

4-port usb 3.2 gen 1 metal hub with 1a power for each usb port and 15kv esd surge protection for din-rail
Hide thumbs Also See for EX-1144HMVS:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

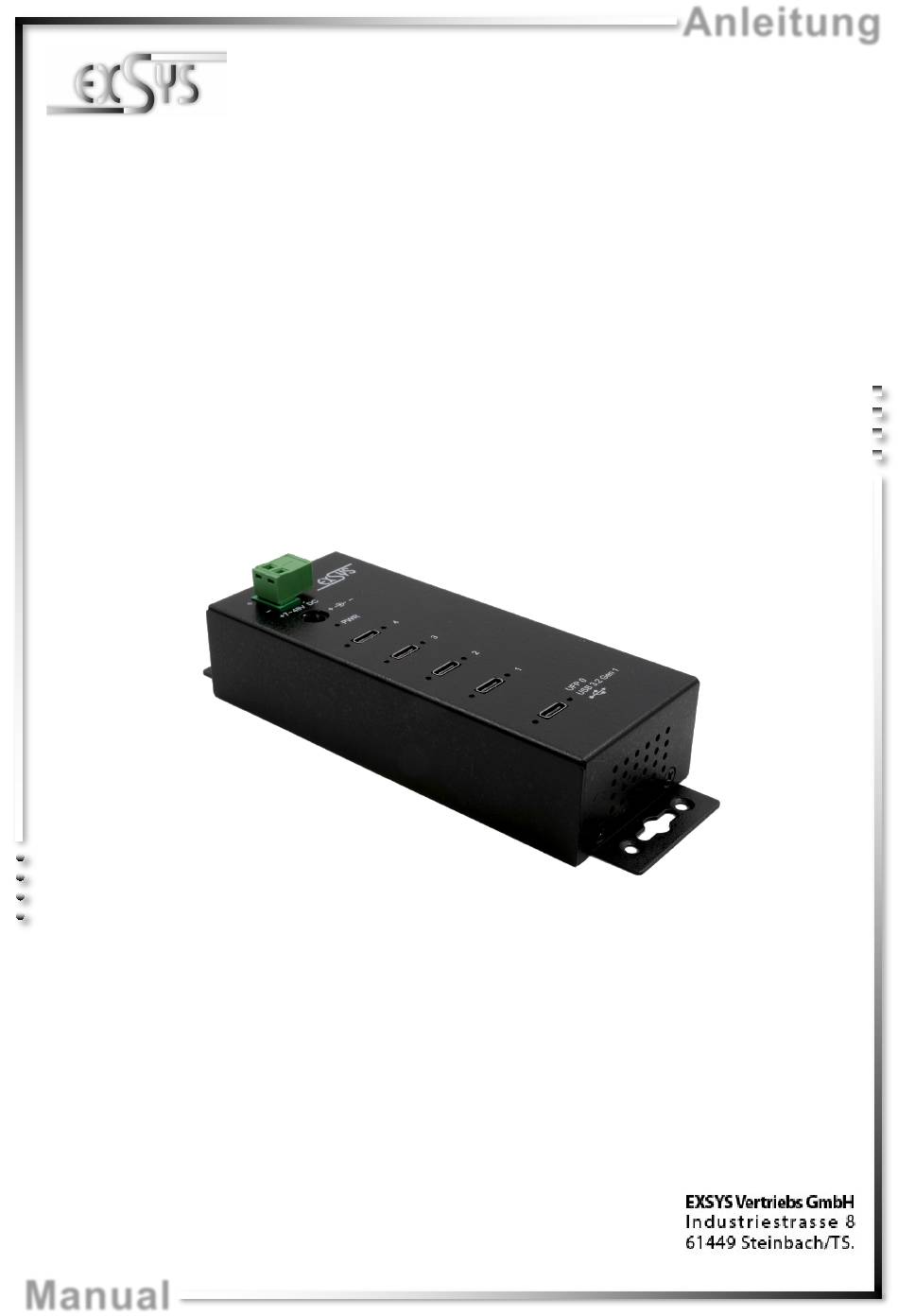

Anleitung
EX-1144HMVS
4-Port USB 3.2 Gen 1 Metall HUB mit
1A Strom pro USB Port und
15KV ESD Überspannungsschutz für Trägerschiene
4-Port USB 3.2 Gen 1 Metal HUB with
1A power for each USB port and
15KV ESD Surge Protection for DIN-Rail
Vers. 1.1 / 31.03.22
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-1144HMVS and is the answer not in the manual?

Questions and answers

Related Manuals for Exsys EX-1144HMVS

Summary of Contents for Exsys EX-1144HMVS

  • Page 1 Anleitung EX-1144HMVS 4-Port USB 3.2 Gen 1 Metall HUB mit 1A Strom pro USB Port und 15KV ESD Überspannungsschutz für Trägerschiene 4-Port USB 3.2 Gen 1 Metal HUB with 1A power for each USB port and 15KV ESD Surge Protection for DIN-Rail Vers.

  • Page 2: Table Of Contents

    Layout, Connections & Jumper Settings ··························································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 3: Beschreibung

    Deutsch 1. Beschreibung Der EX-1144HMVS ist ein USB 3.2 Gen 1 Metall HUB für bis zu vier Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Ports von 1.1 bis 3.2.

  • Page 4: Aufbau, Anschlüsse & Jumper Einstellungen

    +7V bis +48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V +7V bis +48V DC-Buchse: ACHTUNG!!! Stecker niemals mit Gewalt einstecken! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 5: Jumper Einstellungen

    Der EX-1144HMVS wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1144HMVS auf der Datenleitung zum PC sprich die USB C-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öff- nen.

  • Page 6: Hardware Installation

    Ihnen nur eine generelle Anleitung zum Einbau des EX-1144HMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1144HMVS an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene.

  • Page 7: Treiber Installation

    EX-1144HMVS Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1144HMVS auto- matisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgenden Eintrag sehen: Ist dieser oder ein ähnlicher Eintrag vorhanden, ist der USB Hub richtig installiert.

  • Page 8: Technische Daten

    0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 162,80 x 54,80 x 39,98 mm Gewicht: 465g 8. Technische Zeichnung © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 9: Description

    1. Description The EX-1144HMVS is a USB 3.2 Gen 1 metal HUB for up to four end devices. The hub is equipped with 4 ports for end devices and 1 port for connection to PC. It supports all USB ports from 1.1 to 3.2 and each USB port on the EX-1144HMVS is additionally screwable.

  • Page 10: Layout, Connections & Jumper Settings

    +7V to +48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 48V +7V to +48V DC-Connector: ATTENTION!!! Never plug in with force! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 11: Jumper Settings

    By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both sides. 3.3 Jumper Settings The EX-1144HMVS will be delivered with the setting USB-Bus-Power. But you have the possibil- ity to cut the power at the data line.

  • Page 12: Hardware Installation

    Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1144HMVS. Please refer your computer’s reference manual whenever in doubt. Install the EX-1144HMVS to the wall or to a DIN-Rail if required.

  • Page 13: Driver Installation

    For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 14: Technical Information

    32° to 131°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +48 Volt Size: 162,80 x 54,80 x 39,98 mm Weight: 465g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
