Chapter 1: Introduction
®
The Pro Tools | S6 Master Post Module is a traditional film monitoring panel that lets you switch track monitoring between input
sources, and punch tracks into and out of record. A comprehensive Speaker/Monitor Control section is also provided, along with
Link controls and a bank of customizable Soft Keys.
Up to three Master Post Modules can be installed in an S6 system.
Link
Solo
Mute
Ready
Master
< >
Rec On
Rec Off
Input
PB

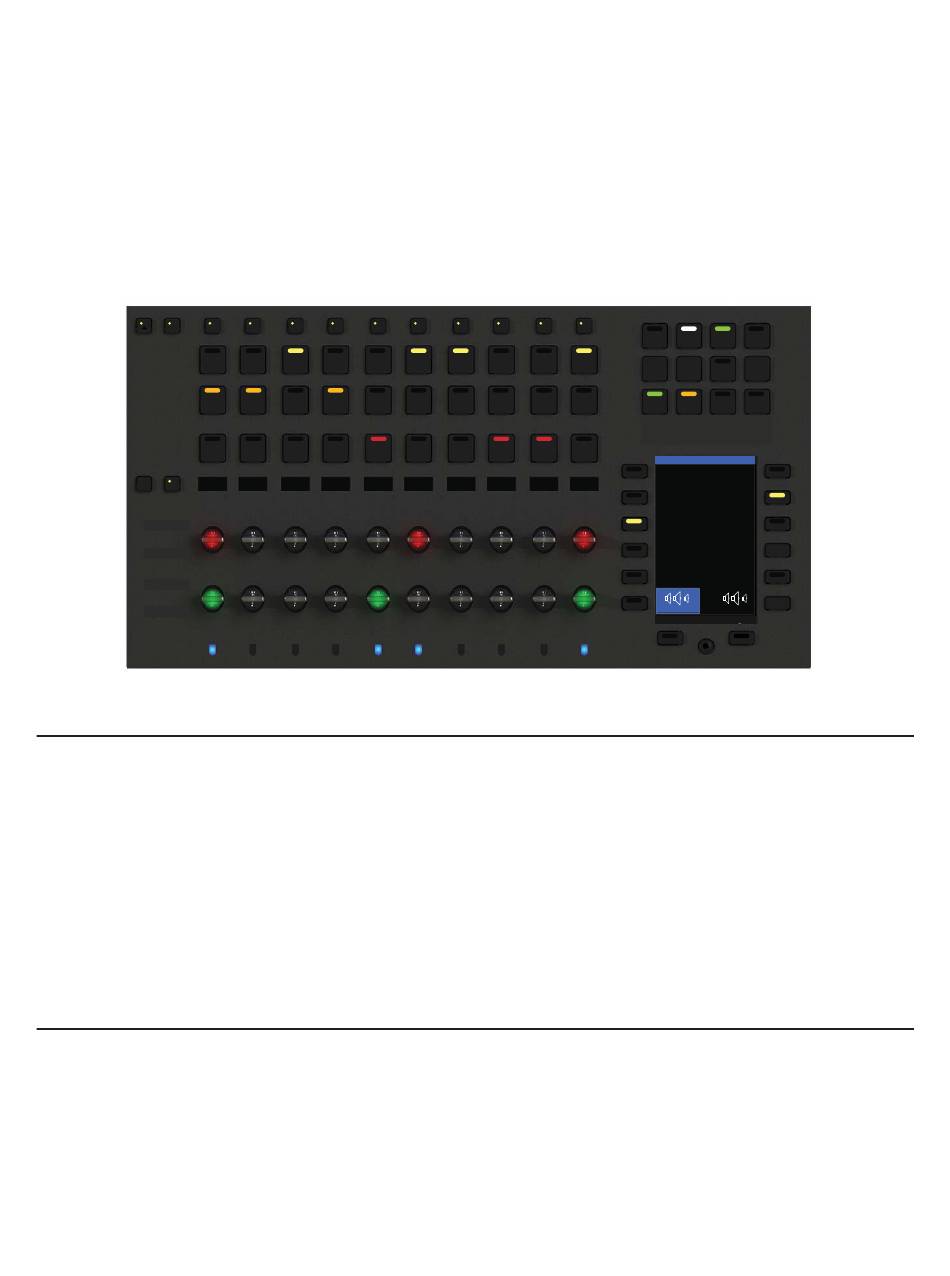

Master Post Module

Module Capabilities and Features

• Ten track strips, each with Record and Monitor paddles, Link, Solo, Mute, and (Record) Ready switches, a display, and a
Track Color indicator.
• Attention/Shift and master Link switches
• Bank switches ( < and > )
• 12 (twelve) Speaker/Monitor Control switches with LEDs
• 1 (one) bank of Soft Keys, with high resolution TFT display
• 2-pin 12 V Power
• One 1000-BaseT (Gigabit) Ethernet RJ45 connector

System Requirements and Compatibility

The S6 Master Post Module is compatible with Pro Tools | S6 systems with S6 software v2.2 or higher and its corresponding S6
Workstation software, and requires Pro Tools 12.5.2 or higher. (S6 software v3.5 and Pro Tools 12.6 or higher are strongly
recommended.)
Avid can only assure compatibility and provide support for hardware and software it has tested and approved.
For complete system requirements and a list of qualified computers, operating systems, hard drives, and third-party devices, visit:
http://www.avid.com/en/products/pro-tools-s6/specifications
Chapter 1: Introduction
Solo Solo Solo Solo Solo
Mute Mute Mute Mute Mute
Ready Ready Ready Ready Ready
FLY BG's F X DLX MX
Solo Solo Solo Solo
Mute Mute Mute Mute
Ready Ready Ready Ready
Atmos Music Spots Main
Fold
Alt 1 User Layouts
Down
Alt 2 Spkr Insert Source
Auto
Main Dim Cut
Match
Speaker Control
Speakers
Sum All On
Layouts Src 1-10 Fold
1
