Tap Next to continue.
7
All controls on the surface illuminate. If the controls do not light, check your connections made during installation.
To confirm that the module flashing in the Surface page is connected and correctly positioned, touch or press any physical con-
8
trol on that module.
Its lights turn off, and the next module flashes. If a module's lights do not turn off, check your assignments in the Settings >
Surface page. Tap Undo if you touch the wrong module.
When all modules are confirmed, tap
9
complete the surface configuration.
Ethernet Connections for Multiple MPMs
If using multiple MPMs on a dual-operator or larger system with only one recorder, all MPMs must be connected to the S6 that has
the recorder attached. The 2nd or 3rd MPMs can be placed in the 2nd or 3rd S6 by connecting Ethernet cables from the 1st S6 to
each MPM in the 2nd or 3rd S6 system.
WAN/Internet

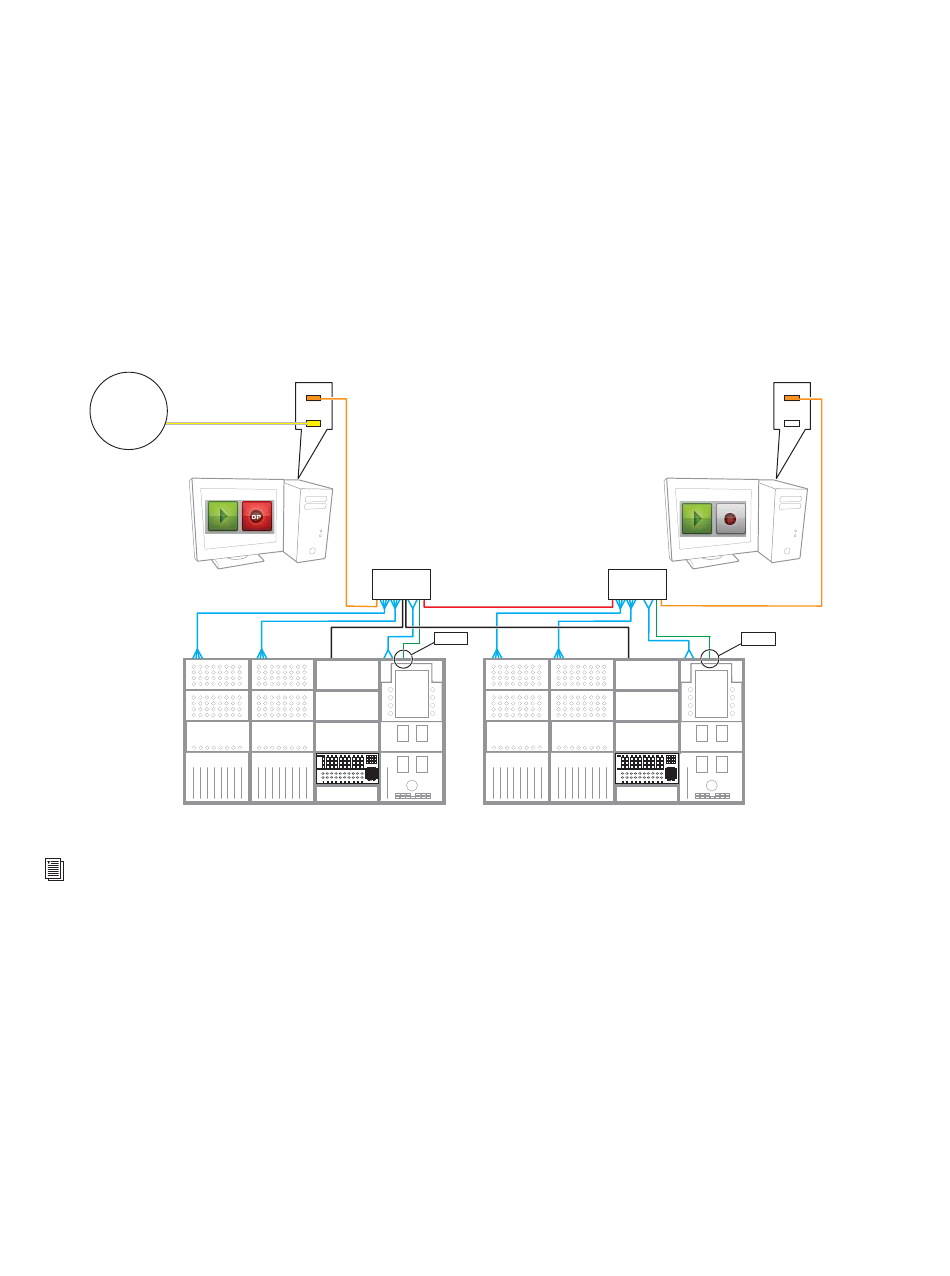

Ethernet connections for multiple Master Post Modules (dual-operator configuration shown).
For more information, see the S6 Networking Guidelines.pdf, available for download from your Avid account.
Chapter 2: Installing the Master Post Module
Next , then f ollow the on-screen instructions to configure Display Modules (if any) and
Recorder
Workstation Ports
1
2
S6 #1
Switch
Port 2
Playback
Workstation Ports
1
2
S6 #2
Switch
Port 1
