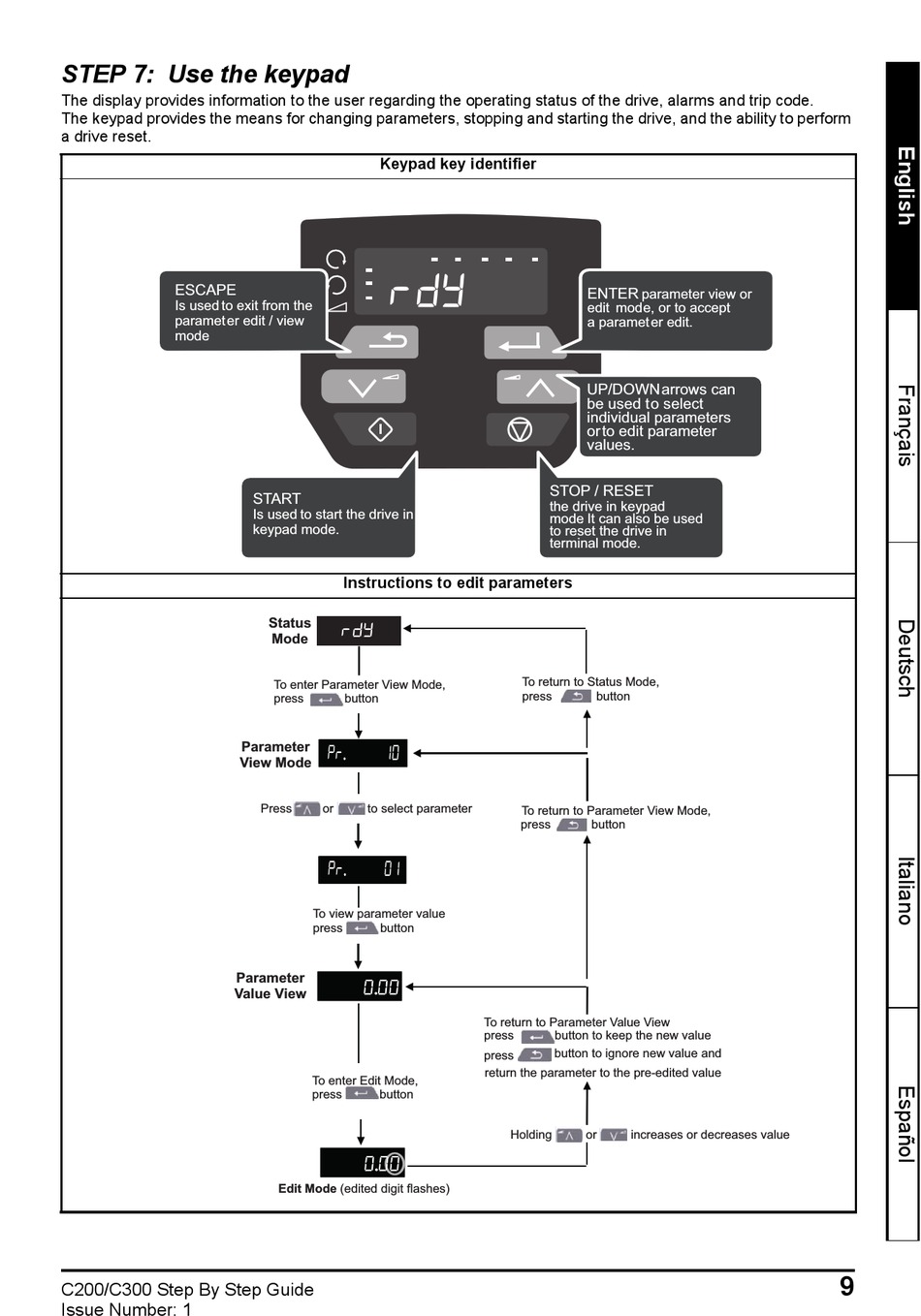

STEP 7: Use the keypad

The display provides information to the user regarding the operating status of the drive, alarms and trip code.
The keypad provides the means for changing parameters, stopping and starting the drive, and the ability to perform
a drive reset.
ESCAPE
Is used to exit from the
paramet er edit / view
mode .
0.00
Value View
C200/C300 Step By Step Guide
Issue Number: 1
Keypad key identifier
rdy
START
Is used to start the drive in
keypad mode.
Instructions to edit parameters
Status rdy
Mode
To enter Parameter View Mode,
press button
Pr. 10
Parameter
View Mode
Press or to select parameter
Pr. 01
To view parameter value
press button
Parameter
0.00
To enter Edit Mode,
press button
0.00
Edit Mode (edited digit flashes)
ENTER
parameter view or
edit mode, or to accept
a paramet er edit.
UP/DOWNarrows can
be used to select
individual parameters
or to edit parameter
values.
STOP / RESET
the drive in keypad
mode . It can also be used
to reset the drive in
terminal mode.
To return to Status Mode,
press button
To return to Parameter View Mode,
press button
To return to Parameter Value View
press button to keep the new value
button to ignore new value and
press
return the parameter to the pre-edited value
Holding or increases or decreases value
