Wi-Fi Power Analyzer Manual For v1.20 PC Software (optional)
Software Installation
USB Driver
BEFORE installing the PC software, the USB driver for the Wi-Fi Power Analyzer must be installed.
To install the USB driver:
1) Turn OFF the target PC.
2) Connect the supplied USB cable to the Wi-Fi Power Analyzer and turn on the Wi-Fi
Power Analyzer. Select and run the "Scan 802.11b Band" measurement. Make sure the free end of
the USB cable is NOT plugged into the target PC.
3) Turn on the target PC. When Windows 2000 or Windows XP is done starting up, place
the supplied CD into the PC CD drive.
4) Now plug the free end of the USB cable into a USB socket on the target PC.

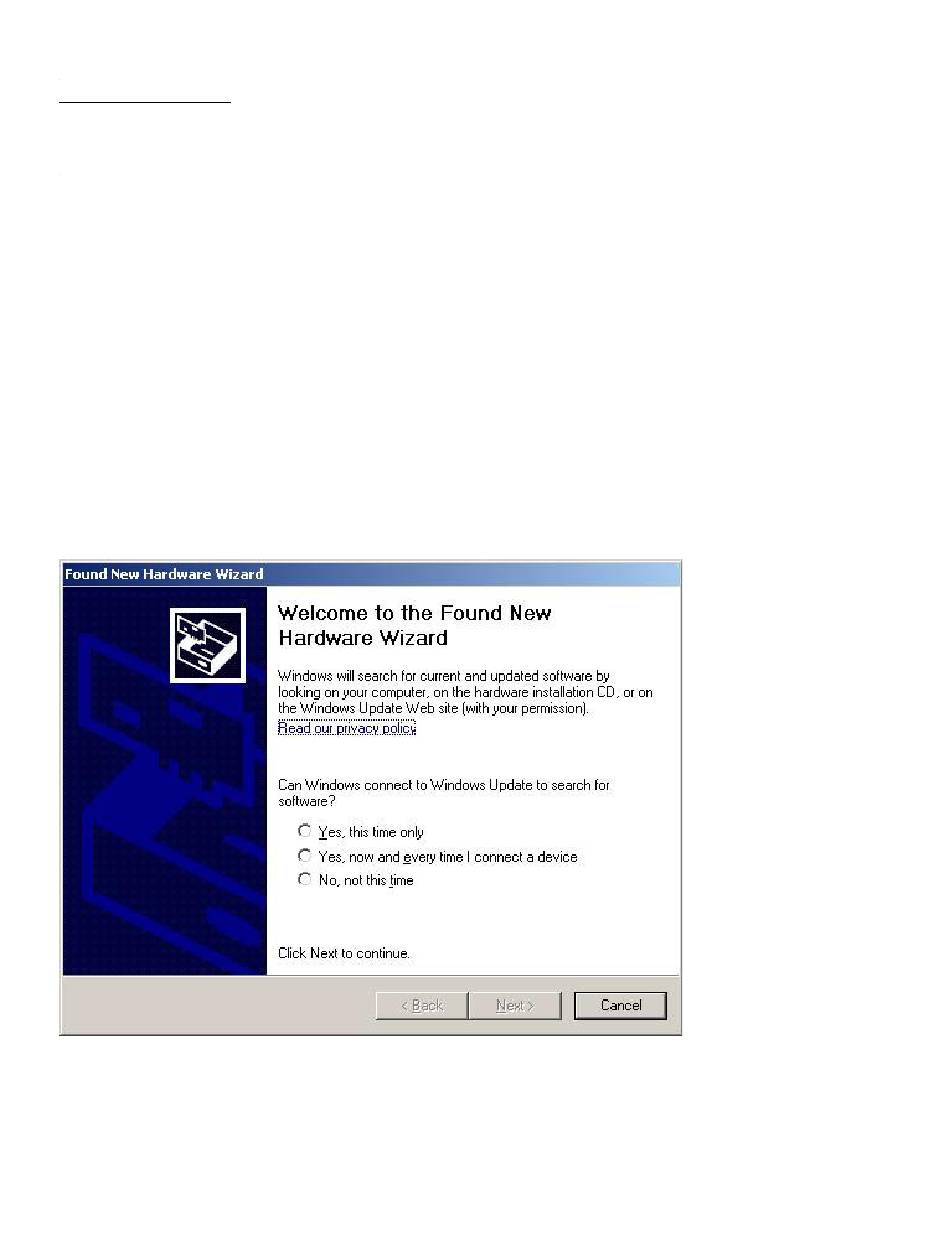

Windows
will display the wizard in Figure 1.
Figure 1
5) Click the "No, not this time" radio button.
Page 8
