Figure 17

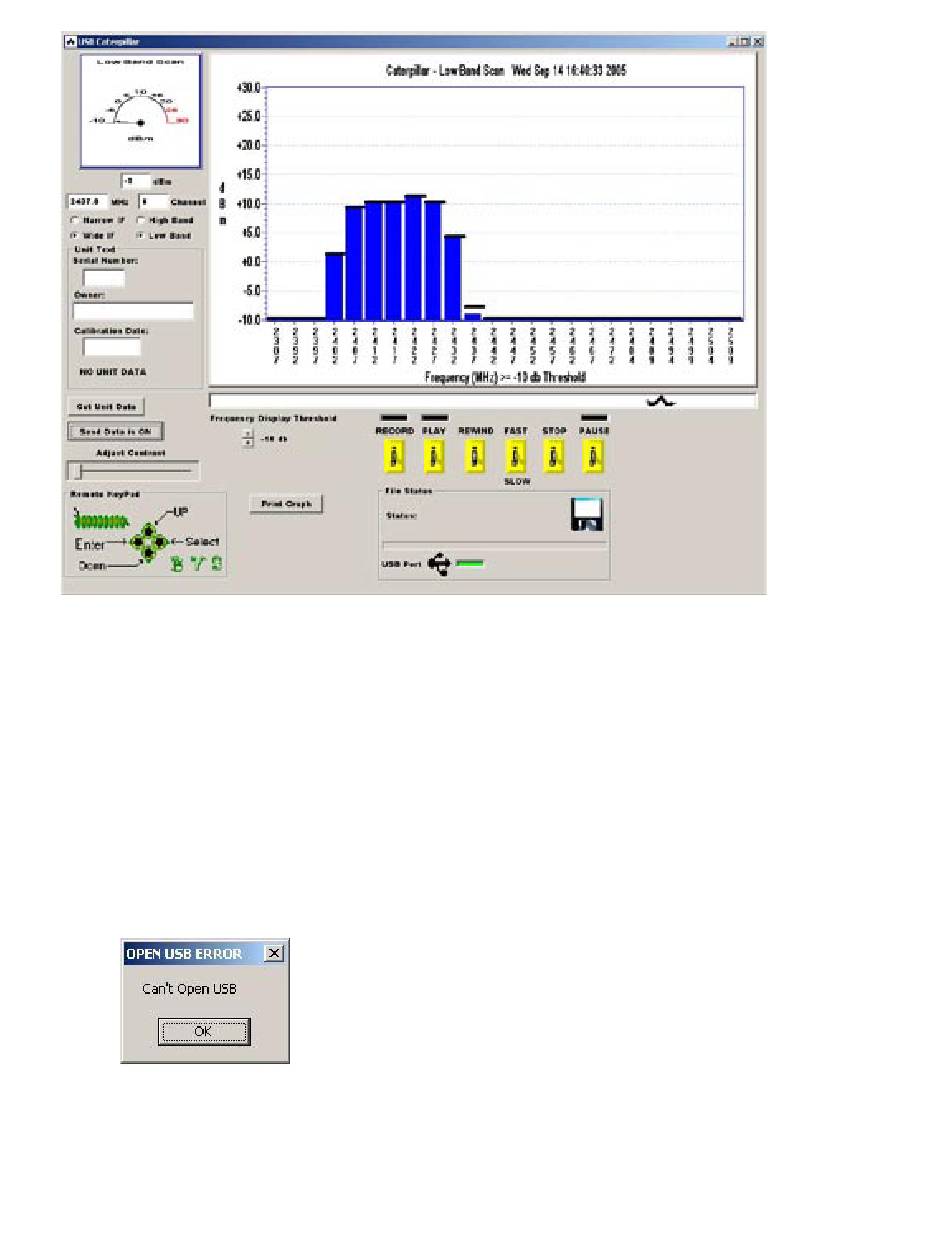

The screen in figure 17 is an example of the Wi-Fi Power Analyzer software display for the selected
measurement, Low Band Scan without unit data.
If the response to double clicking the icon in figure 6 is the dialog in figure 18, click the "OK" but-
ton and the screen in figure 19 will be displayed. Note the USB LED in the File Status box is OFF
indicating that the Wi-Fi Power Analyzer is NOT connected to the PC via USB. Since the driver has
been installed successfully, there is some other serious problem. Please refer to the troubleshoot-
ing section of this manual.
