the bottom of the unit until the cover comes away from
the unit. Remove the batteries and replace, observing
the battery polarities marked on the plastic of the bat-
tery compartment. Replace the battery cover by posi-
tioning the tab on the bottom of the cover into the slot
in the bottom of the battery compartment. Push on the
cover until the tab on the top clicks back into position.
The unit is now ready to resume use.

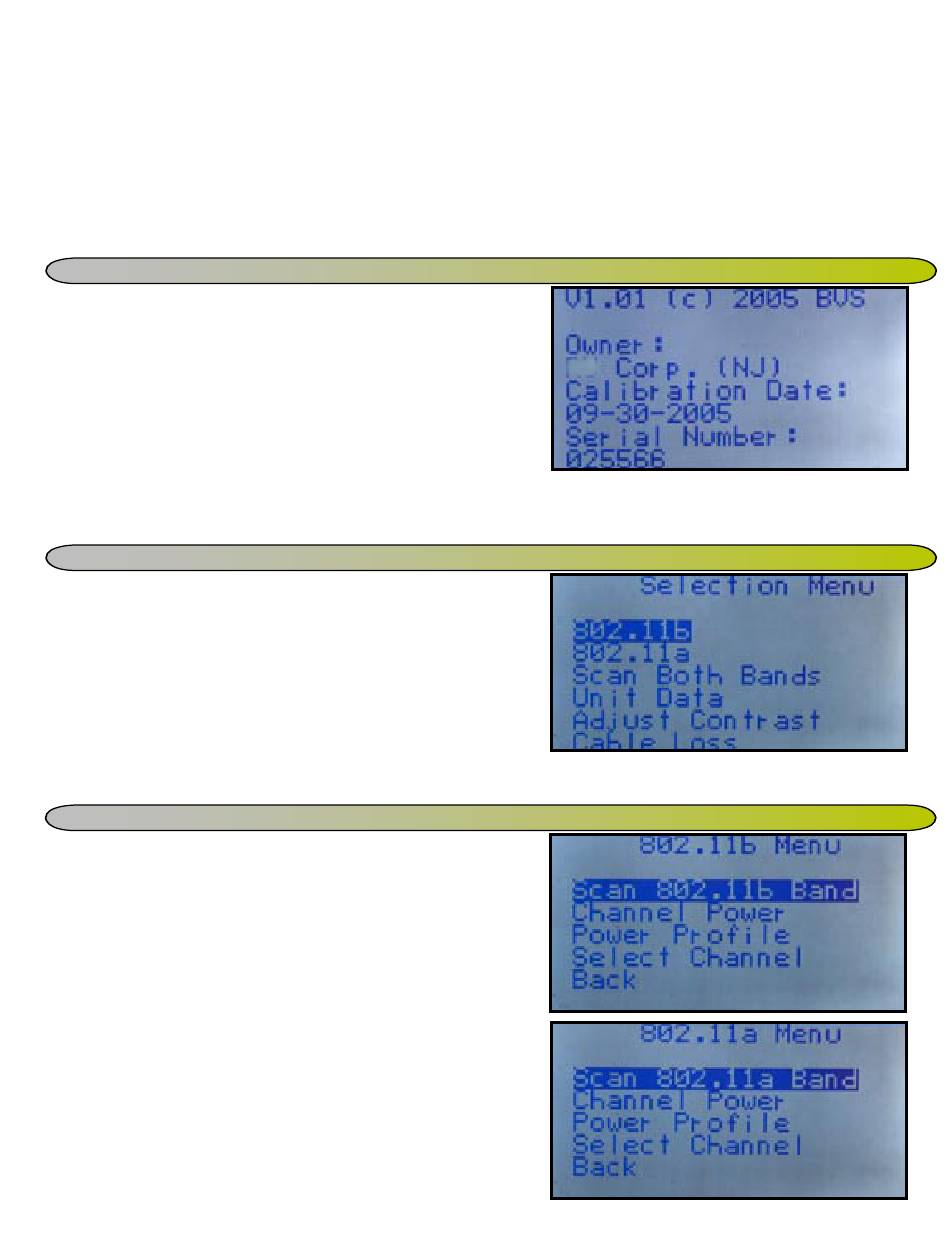

STARTUP SCREEN / UNIT DATA
When the user powers up the Wi-Fi Power Analyzer,
this screen will appear briefly. The STARTUP SCREEN
is followed by the MAIN MENU. This screen can be
accessed anytime through the UNIT DATA screen.
MAIN MENU
Use this screen to navigate through all of the options.
Use the UP/DOWN ARROWs to scroll through the menu
options. Select the desired option by pressing the
LEFT ARROW button. Press the RIGHT ARROW button
anytime to go back to the previous screen and return to
the MAIN MENU.

802.11b/802.11a SUB-MENUS

Select 802.11b or 802.11a in the MAIN MENU to enter
this screen. Use the UP/DOWN ARROWs to scroll
through the menu options. Select the desired option
by pressing the LEFT ARROW button. Press the RIGHT
ARROW button anytime to go back to the previous
screen and return to the MAIN MENU.
Page 4
