LCD contrast using the Selection Menu "Adjust Contrast" function. When unit data is acquired from
the Wi-Fi Power Analyzer, this control is set to the setting of the Wi-Fi Power Analyzer.
Use the Remote Keypad keys to simulate pressing the Wi-Fi Power Analyzer keypad. Clicking the
UP, Select, Down or Enter remote key has the same effect as pressing the same key on the Wi-Fi
Power Analyzer.
Measurement Gauge and Unit Data

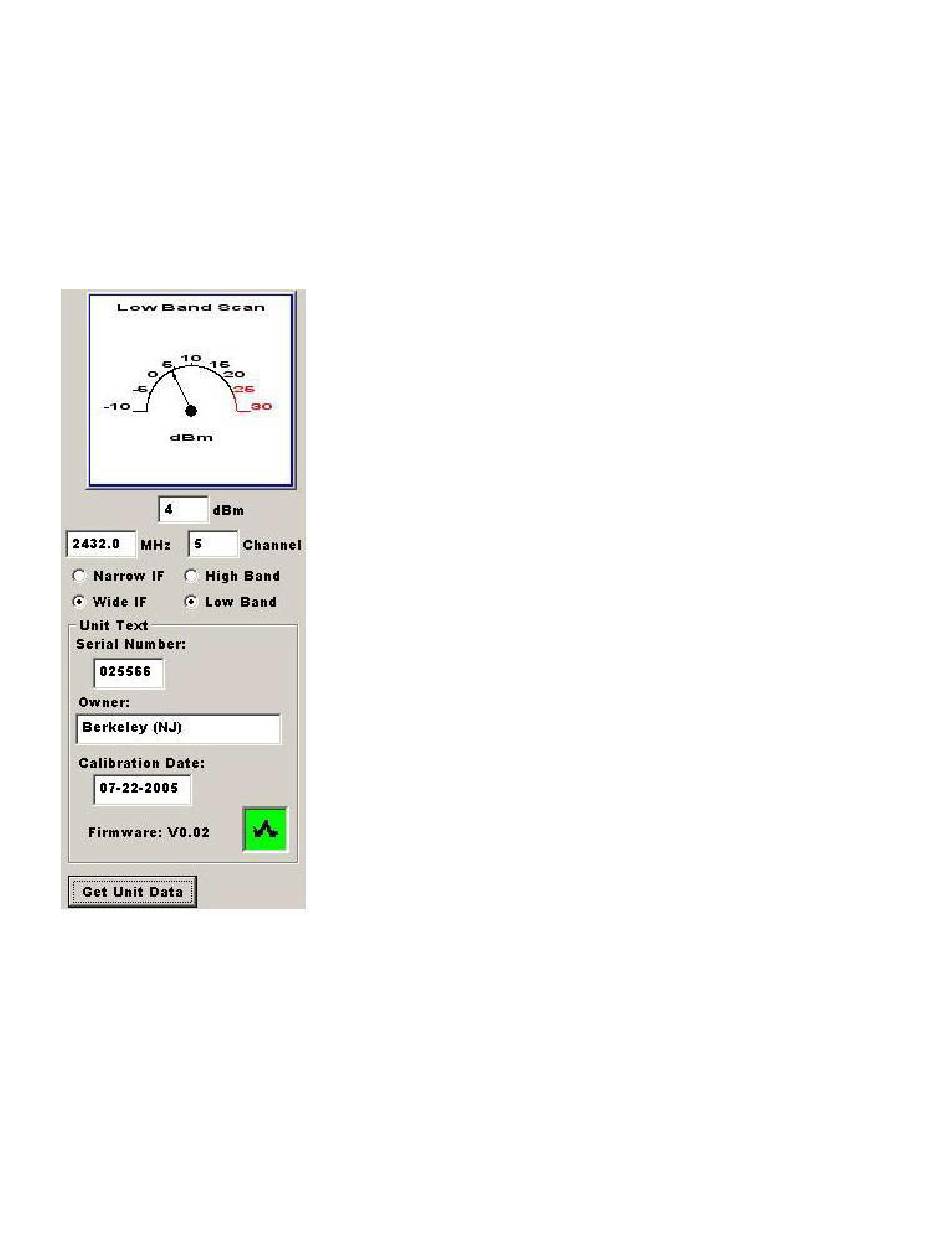

Figure 22
The Gauge indicates the current dBm value being measured by the Wi-Fi Power Analyzer. The mea-
surement being performed by the Wi-Fi Power Analyzer is displayed above the gauge dBm scale.
Measurement dBm value is also displayed in a text box below the gauge along with the current
frequency (MHz) and Channel number. If the frequency being measured is not associated with a
channel number, this box displays the characters '—".
The Low and High Band radio buttons indicate the current measurement band (low is 802.11b, high
is 802.11a).
