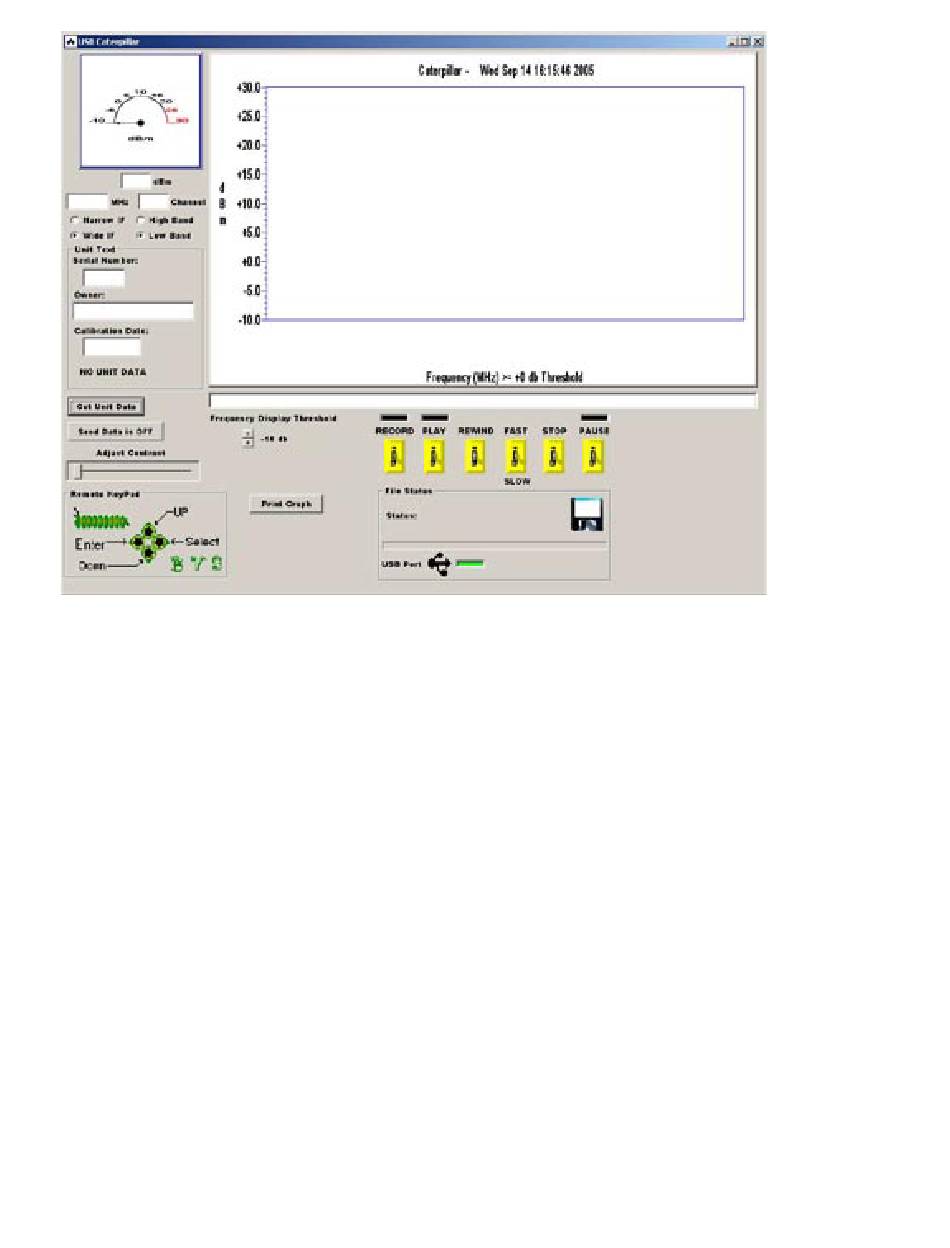

Figure 16
If the screen in Figure 16 is displayed, the Wi-Fi Power Analyzer is connected to the PC via USB
(note the Green LED to the right of the USB Port symbol in the File Status Box), but the Wi-Fi Power
Analyzer is not sending data (also note that the button above the contrast adjust slide bar indicates
"Send Data is OFF". To remedy this situation, click the "Send Data" button and a screen similar
to Figure 17 will be displayed:
Full Wi-Fi Power Analyzer PC Screen, No Unit Data
Page 16
