PLAY, RECORD and MISCELLANEOUS CONTROLS

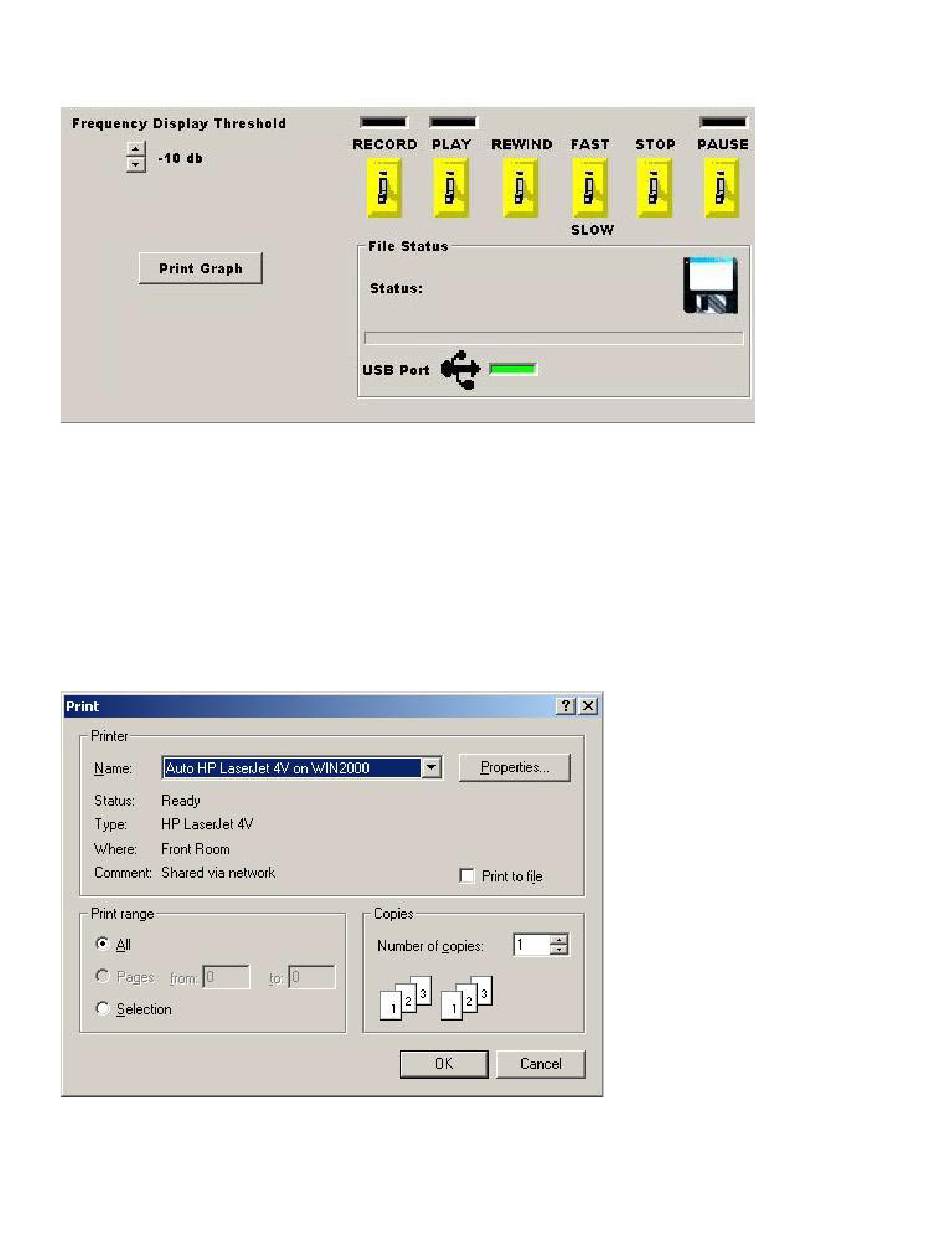

Figure 24
Click the Frequency Display Threshold up-down control to adjust the dBm value used to display a
frequency on the X axis of the graph. The setting of this control has no effect on data being record-
ed, only on the data being displayed by the graph.
Click the "Print Graph" button to print the current graph in black and white on the PC printer.
Clicking this button will result in the Windows Print wizard. Click "OK" to print, "Cancel" to not
print. The "All, Selection and Print to file" controls have no effect on the printout.
Figure 25
Switch Bank
The RECORD, PLAY, REWIND, FAST, STOP and PAUSE switches are used to control recording and
