Straps - Stryker Power-PRO TL Cot Operation Manual

S S e e c c u u r r i i n n g g t t h h e e p p a a t t i i e e n n t t w w i i t t h h t t h h e e r r e e s s t t r r a a i i n n t t s s t t r r a a p p s s
W W A A R R N N I I N N G G
• Always use all restraint straps to secure the patient on the cot. An unrestrained patient may fall from the cot.
• Do not attach restraint straps to the base tubes or cross tubes.
C C A A U U T T I I O O N N - - Do not entangle the restraint straps in the base frame when you raise or lower the cot.
N N o o t t e e - - Restraint straps are a Type BF applied part.
Secure restraint straps to the cot in the required attachment locations (Figure 19). Restraint strap attachment locations
should provide strong anchorage and proper restraint position. Do not allow restraint straps to interfere with equipment or
accessories. Buckle the restraint straps across the patient's shoulders, waist, and legs. Buckle restraint straps when the cot
is not in use.
To attach the patient restraint straps to the cot litter frame, feed the loop end of each strap through the litter frame at each of
the designated locations (Figure 19) and then feed the buckle or latch plate back through the loop end of the strap. The
arrows indicate alternate attachment areas.

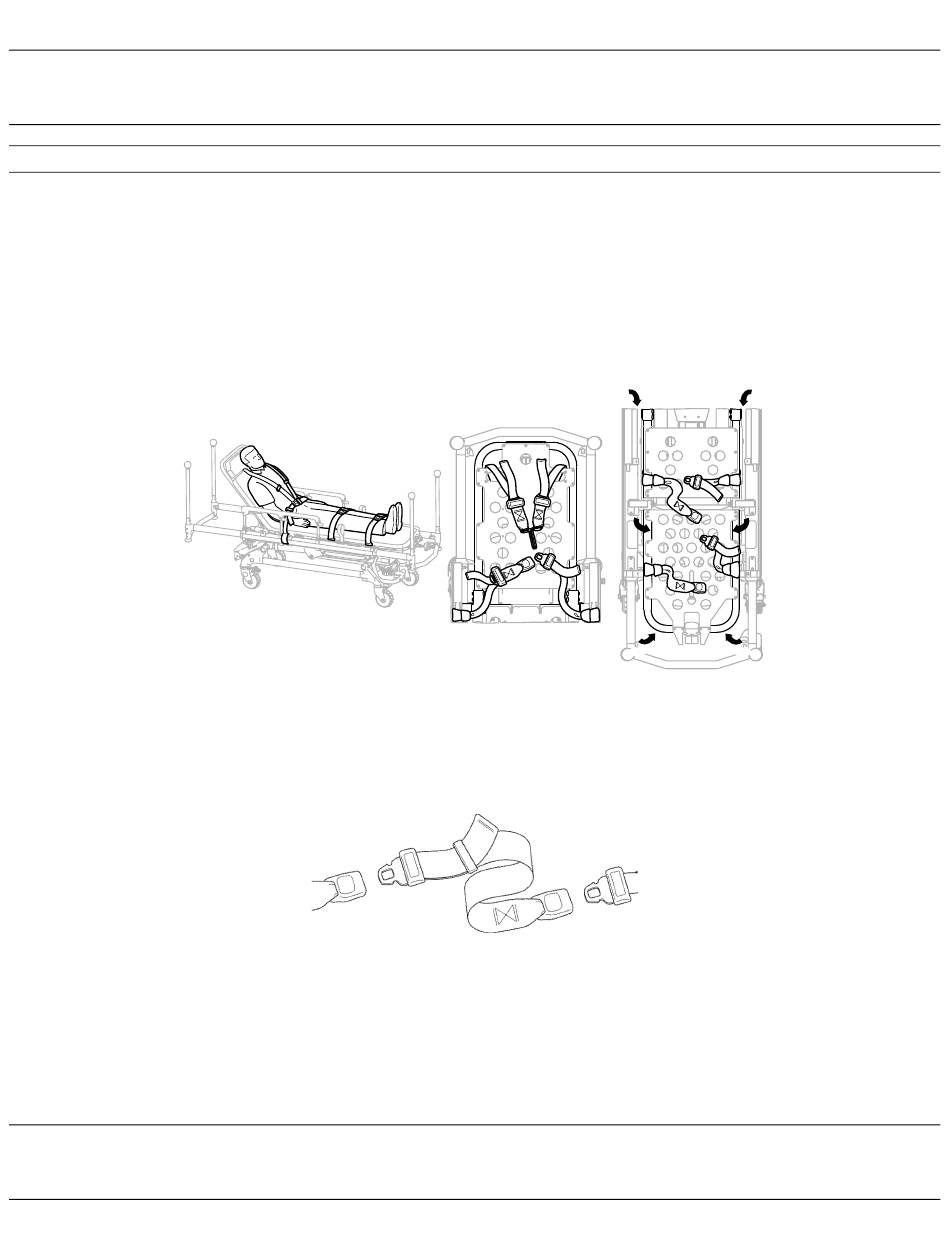

F F i i g g u u r r e e 1 1 9 9 – – R R e e s s t t r r a a i i n n t t s s t t r r a a p p a a t t t t a a c c h h m m e e n n t t p p o o i i n n t t s s
A A d d d d i i n n g g a a r r e e s s t t r r a a i i n n t t s s t t r r a a p p e e x x t t e e n n s s i i o o n n
Add a restraint strap extension (6082-160-050) for extra length when you buckle the lap belt around larger patients.
F F i i g g u u r r e e 2 2 0 0 – – R R e e s s t t r r a a i i n n t t s s t t r r a a p p e e x x t t e e n n s s i i o o n n
S S e e c c u u r r i i n n g g a a p p a a t t i i e e n n t t w w i i t t h h t t h h e e X X - - r r e e s s t t r r a a i i n n t t / / R R U U G G G G E E D D ™- - X X ( ( 6 6 5 5 0 0 0 0 - - 0 0 0 0 1 1 - - 4 4 3 3 0 0 / / 6 6 5 5 0 0 6 6 - - 0 0 0 0 1 1 - -
4 4 3 3 0 0 ) ) r r e e s s t t r r a a i i n n t t s s t t r r a a p p s s
Secure restraint straps to the cot in the required attachment locations: shoulders waist, thighs, and ankles.
W W A A R R N N I I N N G G
• Always use all restraint straps to secure the patient on the cot. An unrestrained patient may fall from the cot.
• Do not attach restraint straps to the base tubes or cross tubes.
EN 30 6550-309-005 Rev H.0
