T T r r a a n n s s f f e e r r r r i i n n g g l l a a r r g g e e r r p p a a t t i i e e n n t t s s
Use the transfer flat (6005-001-001) when you transfer larger patients.
A A t t t t a a c c h h i i n n g g t t h h e e m m a a t t t t r r e e s s s s
Two mattress options are available for use with this product. Use the Gatch bolster mattress (6550-001-084) or flat mattress
(6550-001-295) with the standard siderail. Use the wider Gatch bolster mattress (6500-003-130/6506-003-130) with the
optional expandable patient surface (XPS).
C C A A U U T T I I O O N N - - Do not store items under the mattress. Items under the mattress may interfere with product operation.
To attach the mattress to the cot:
1. Align the V V e e l l c c r r o o ® on the back of the mattress with the V V e e l l c c r r o o ® on the cot litter.
2. Attach the strap at the foot end of the mattress through the two holes in the foot end skin on the cot litter.
3. Pull the strap through the buckle and attach the V V e e l l c c r r o o ® to secure the strap.
N N o o t t e e
• The Gatch bolster mattress (6550-001-084) and the flat mattress (6550-001-295) are not compatible with the XPS
siderail option (6550-031-000).
• The optional Gatch bolster mattress for XPS (6500-003-130/6506-003-130) is not compatible with the standard siderail
(6550-034-000).
• The mattress is a Type BF applied part.
6550-309-005 Rev H.0

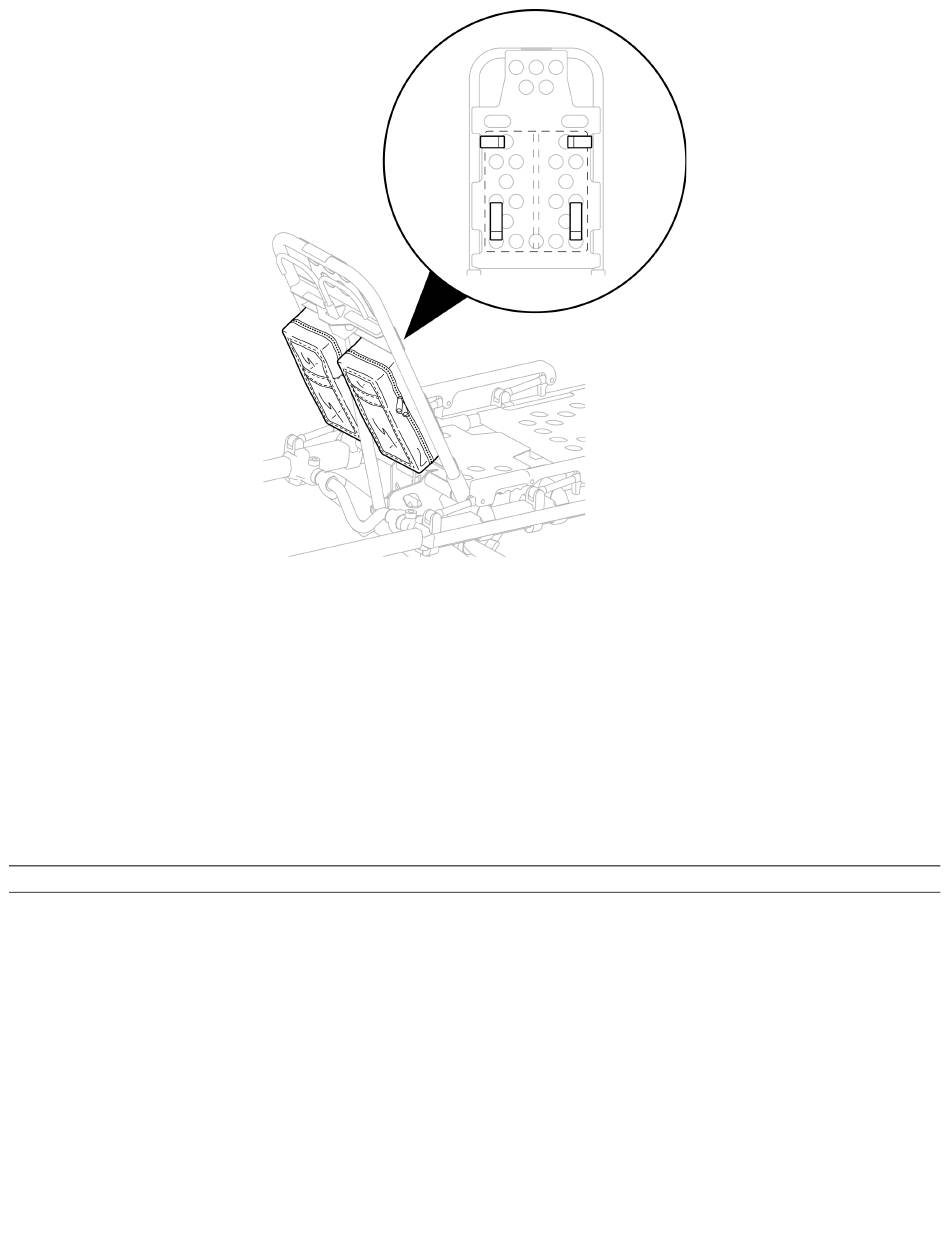

F F i i g g u u r r e e 4 4 0 0 – – B B a a c c k k r r e e s s t t s s t t o o r r a a g g e e p p o o u u c c h h
