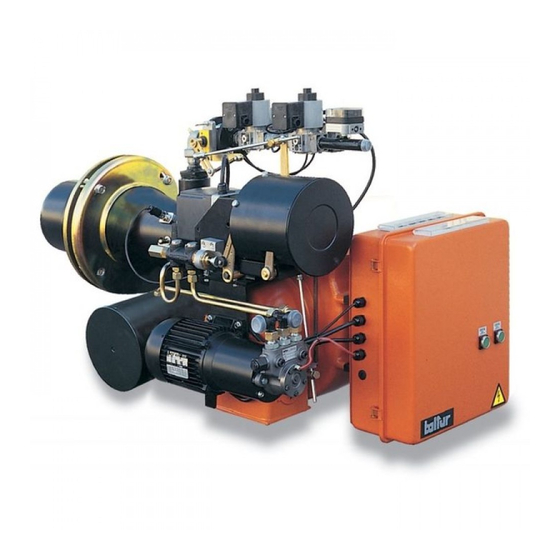

baltur COMIST 72 DSPGM Instruction

Hide thumbs

Advertisement

Quick Links

- Instruction for burners model
COMIST 72 DSPGM
COMIST 122 DSPGM
COMIST 180 DSPGM
COMIST 250 DSPGM
COMIST 300 DSPGM
- The works on the burner and on the system have to
be carried out only by competent people.
- Read carefully the instructions before starting the
burner and service it.
- The system electric feeding must be disconnected
before starting working on it.
- If the works are not carried out correctly it is
possible to cause dangerous accidents.
Edition
Cod. 0006080115
en
2003/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the COMIST 72 DSPGM and is the answer not in the manual?

Questions and answers

Related Manuals for baltur COMIST 72 DSPGM

Summary of Contents for baltur COMIST 72 DSPGM

  • Page 1 - Instruction for burners model COMIST 72 DSPGM COMIST 122 DSPGM COMIST 180 DSPGM COMIST 250 DSPGM COMIST 300 DSPGM - The works on the burner and on the system have to be carried out only by competent people. - Read carefully the instructions before starting the burner and service it.
  • Page 2 Normes CE – CEI – UNI en vigueur au moment de la fabrication. • La BALTUR garantit la certification “CE” seulement si les brûleur sont installé avec les rampes de gaz “CE” produites par la BALTUR et les accessoires de ligne gaz “CE” (fournis sur demande).

  • Page 3: Pompa

    CARATTERISTICHE TECNICHE N° 0002570030 TECHNICAL DATA Rev. CARACTIRÍSTICAS TÉCNICAS CARATTERISTICHE TECNICHE / TECHNICAL DATA MODELLO / MODEL / CARACTERÍSTICAS TÉCNICAS / TECHNISCHE DATEN MODELO / MODELL COMIST 72 COMIST 122 MM - DSPGM MM - DSPGM 1364 POTENZA TERMICA / THERMIC CAPACITY / POTENCIA TÉRMICA / HEIZLEISTUNG MAX m³/h PORTATA / FLOW RATE / CAUDAL / DURCHSATZ...

  • Page 4: Modulatore

    Elenco componenti N° 0002570030 Component List Rev. Lista de los componentes Pompa 11 - Valvola regolatrice di pressione Modulatore 12 - Valvola di sicurezza Pressostato aria 14 - Quadro elettrico Pressostato gas minima 15 - Motore pompa Pressostato gas massima 16 - Vite regolazione aria alla testa di combustione Pressostato gas massima...
  • Page 5 Ø Ø Ø Ø COMIST 72 DSPGM 670 400 270 810 375 435 265 1410 185 445 227 220 2" 240 M16 240 COMIST 122 DSPGM 830 460 370 1170 455 715 1500 195 455 227 220 2"1/2 240 M16 240...
  • Page 6 CARATTERISTICHE TECNICHE N° 0002570100 TECHNICAL DATA Rev. CARACTIRÍSTICAS TÉCNICAS CARATTERISTICHE TECNICHE / TECHNICAL DATA MODELLO / MODEL / CARACTERÍSTICAS TÉCNICAS / TECHNISCHE DATEN MODELO / MODELL COMIST 180 COMIST 250 COMIST 300 DSPGM DSPGM DSPGM 1981 3380 3878 MA kW POTENZA TERMICA / THERMIC CAPACITY / POTENCIA TÉRMICA / HEIZLEISTUNG 1127...

  • Page 7: Table Of Contents

    CARATTERISTICHE TECNICHE N° 0002570100 TECHNICAL DATA Rev. CARACTIRÍSTICAS TÉCNICAS Pompa 11 - Valvola regolatrice di pressione Modulatore 12 - Valvola di sicurezza Pressostato aria 14 - Quadro elettrico Pressostato gas minima 15 - Motore pompa Pressostato gas massima 16 - Vite regolazione aria alla testa di combustione Pressostato gas massima 17 -...
  • Page 8 N° 0002570100 Dimensioni / Dimensions / Dimensiones Rev. Mod. min max COMIST 180 DSP GM 875 460 415 1225 510 715 1725 330 260 245 2”1/2G 400 400 M 20 300 COMIST 250 DSP GM1075 540 535 1300 580 720 1750 320 320 273 3”G 490 490 M 20 340...
  • Page 9 N° 8187/1 COMIST 36 - 72 - 122 Rev. N° 8111/2 COMIST 180 - 250 - 300 Rev.
  • Page 10 DRAWING SHOWING THE GAS TRAIN ASSEMBLY N° 8805 COMIST 72 MG - DSPGM Rev. DRAWING SHOWING THE GAS TRAIN ASSEMBLY N° 8797 COMIST 122 - 180 - 250 - 300 MG - DSPGM - DSPNM Rev.
  • Page 11 APPLICATION OF THE BURNER TO BOILER for model COMIST 72 - 122 DSPGM (steel fixing flange) 1 - Boiler plate 2 - Insulating gasket 5 - Stud bolt 3 - Burner fixing flange 6 - Locking nut with washer 4 - Elastic collar 7 - Nut and washer for fastening the first flange for model COMIST 250 - 300 DSPGM 1 - Boiler plate...
  • Page 12 GAS FEED SYSTEM AT LOW PRESSURE ( max. 400 mm.C.A ) When the burner has been correctly fastened to the boiler, proceed with connecting it to the gas pipeline (see BT 8780 and BT 1387). The dimension of the gas adduction pipeline should be in proportion to its length and to gas delivery and the load loss should not exceed 5 mm W.
  • Page 13 FLOW (m /h) METHANE GAS (d=0,85) IN N° BT 1387 COMMERCIAL GAS PIPES (UNI 3824-68) LOAD LOSS MAX. 5 mm W. C. VIRTUAL LENGTH IN METERS...
  • Page 14 GAS FEED SYSTEM AT AVERAGE PRESSURE a few bars (see BT 8058-BT 8530/1-8531/1) When high delivery is required, the Gas DIAGRAM FOR CALCULATING THE DIAMETER OF THE Distributing Company requests the installation of PIPES IN RELATION TO THEIR LENGTH AND GAS FLOW a unit comprising a pressure reducer and a meter, and then connects it to the gas pipe network at average pressure (a few bars).
  • Page 15 DIAGRAM OF CONNECTING MORE THAN ONE N° BT 8530/1 BURNER TO THE GAS PIPE NETWORK AT AVERAGE PRESSURE 1 - Measuring and reducing unit 2 - Interception 3 - Filter 4 - Reducer 5 - Meter 6 - Emergency interception (installed outside) 7 - Ball cock 8 - Filter 9 - Final reducer or stabilizer...
  • Page 16 ELECTRICAL CONNECTIONS It is advisable to make all connections with flexible electric wire. The electric lines should be at an adequate distance from hot parts. Make sure that the electric line to which the unit will be connected has frequency and voltage ratings suitable for the burner.
  • Page 17 FUEL FEEDING HYDRAULIC DIAGRAM FOR ONE N° 0002901120 OR MORE LIGHT OIL BURNERS rev.:19/02/2002 WITH MAXIMUM NOMINAL VISCOSITY (5 °E at 50 °C) Main cictern Filter The combustible recovery and degasifier Circulation pump tanks (diameter ~ 150, height ~ 400) should be installed as near as possible Water and system drain to the burner and should be about 0,5 m.
  • Page 18 DESCRIPTION OF TWO STAGE PROGRESSIVE OPERATIONS WITH LIGHT OIL COMIST...DSPGM (See BT 8714/2) This is referred to as a 2-stage progressive operation because the passage from the 1st flame to the 2nd flame (from the minimum rate to the maximum pre-established rate) takes place gradually both as delivery of combustion air and of fuel.
  • Page 19 Fuel and combustion air delivery both increase at the same time until they reach maximum value (light oil pressure at the return pressure regulator is equal to about 18 ÷ 20 bar if the pressure at the pump is at the value of 20 ÷ 22 bar).
  • Page 20 After the insertion spark appears, the control box carries voltage to the magnet which, by means of appropriate levers, moves backwards the two rods which intercept the flow (outward and return) of light oil to the nozzle. This moving backwards of the rods also determines a closing of the passage (by-pass) inside the atomizer unit. Consequently, the pump pressure is taken to the normal value of about 20 ÷...
  • Page 21 DIAGRAM OF LIGHT OIL MODULATING N° BT 8714/2 BURNERS ( MAGNET - NOZZLE WITHOUT PIN) REV.: 19/02/2002 FILTER BURNER PUMP PRESSURE GAUGE 0 - 40 BAR ATOMIZER UNIT RETURN NOZZLE WITHOUT PIN ROD WITH CLOSING PINS CONNECTION AT THE BY-PASS HOLES FUEL FEEDING DIAGRAM FOR ONE CLOUSING SPRING...
  • Page 22 N° 0002900580 BALTUR PUMP...

  • Page 23: Safety Valve

    DESCRIPTION OF TWO STAGE PROGRESSIVE OPERATION WITH NATURAL GAS FOR COMIST..DSPGM (see N° 0002910610 and N° 0002910640) CONTROL BOX SPECIFICATIONS Control Safety time in Pre-ventilation Pre-ignition Post-ignition Time between box & seconds time with shutter in seconds in seconds 1st flame & relative open modulation start...

  • Page 24: Combustion Head

    DESCRIPTION OF MODULATING OPERATIONS WITH NATURAL GAS FOR COMIST..MM (see N° 0002910610 and N° 0002910640) CONTROL BOX SPECIFICATIONS Control box Safety time Pre-ventilation Pre-ignition Post-ignition Time between & in seconds time with in seconds in seconds 1st flame & relative shutter open modulation start programmer...
  • Page 25 DIAGRAM FOR MODULATING OR TWO-STAGE N° 0002910610 PROGRESSIVE GAS AND DUAL FUEL BURNERS AT NOMINAL THERMAL POWER > 2000 Kw 1 - Ball cock 2 - Anti-vibration joint 3 - Filter 4 - Gas pressure reducer ot stabilizer 5 - A couple of flange 6 - Minimum and maximum pressure switsc 7 - Safety valve 8 - Device to control valve seal and relative pressure switch DW...
  • Page 26 DETAILS ON THE REGULATION OF GAS DELIVERY IN MODULATING BURNERS WITH N° BT 8816/1 THROTTLE VALVE COMIST 72 - 122 DSP GM / MG The notch shown on the end of the shaft indicates the position pf the throttle valve (shutter) DETAILS ON THE REGULATION OF GAS DELIVERY IN MODULATING BURNERS WITH THROTTLE VALVE N°...
  • Page 27 STARTING UP AND REGULATION WITH LIGHT OIL 1) Check that the characteristics of the nozzle (delivery and spray angle) are suitable for the furnace (see BT 9353/1). If not, replace it. 2) Check that there is fuel in the cistern and that it is, at least visually, suitable for the burner. 3) Check that there is water in the boiler and that the system’s gate valves are open.
  • Page 28 18) The servomotor which regulates the fuel/air delivery starts moving; wait until the disk on which the regulating screws have been fitted, has reached an angle of about 12° (this corresponds to a space taken up by three screws), stop the modulation and return the switch to the “O” position. Carry out a visual control of the flame and proceed, if necessary, with regulating the combustion air by operating as described in point 16.
  • Page 29 REGULATION OF THE COMBUSTION HEAD AND FLAME DISK (See BT 8608/1) The burner is equipped with a combustion head which can be regulated (by moving it backwards or forwards) in such a way as to close more or open more the air passage between the disk and the head. By closing the passage, it is possible to achieve high pressure upstream the disk and therefore high velocity and air turbulence for low inputs as well.
  • Page 30 STARTING UP AND REGULATION WITH METHANE GAS 1) If not already done at the moment of connecting the burner to the gas pipeline, it is indispensable to carry out a purge of the air contained in the pipeline. As a precaution, special care should be taken and doors and windows should be opened.
  • Page 31 UV CELL If the flame detection is carried out with the UV cell, the following should be taken into consideration. Even the slightest greasiness will compromise the passage of the ultraviolet rays through the UV photoelectric cell bulb, thus preventing the sensitive internal element from receiving the quantity of radiation necessary for it to function properly.
  • Page 32 17) The air pressure switch has the job of bringing the control box to a safety shut down if the air pressure is not at the correct value. Therefore, the air pressure switch must be regulated in such a way as to intervene by closing the contact (foreseen to be closed while working) when the air pressure in the burner has reached a sufficient level.
  • Page 33 REGULATION OF THE COMBUSTION HEAD AND FLAME DISK (See BT 8608/1) The burner is equipped with a combustion head which can be regulated (by moving it backwards or forwards) in such a way as to close more or open more the air passage between the disk and the head. By closing the passage, it is possible to achieve high pressure upstream the disk and therefore high velocity and air turbulence for low inputs as well.
  • Page 34 READING GAS (METHANE) METER When the burner is operating at maximum output, check that the quantity of gas delivered is necessary for the boiler’s needs. The low calorific value for methane gas is about 8550 kcal/m To find out the low calorific values of other types of gas, contact the Gas Distributing Company. Delivery per hour should be taken at the meter.
  • Page 35 DETAILS OF THE MODULATION CONTROL MOTOR SQM 10 - SQM 20 FOR REGULATING N° BT 8562/1 CAMS OF GAS AND MIXER BURNERS Reference index Cam shaft Adjustable cams Maximum opening end of the run Total air closure (burner at a standstill) Air ignition opening Principle feed valve(s) B = Insertion and disinsertion lever...
  • Page 36 INSTRUCTIONS FOR SETTING DUNGS GAS N° 8875-GB VALVES mod. MVD ... and MVDLE ... Rev. 06/11/90 Mod. MVD..The MVD gas valves open and close rapidly. To regulate the gas flow, unscrew and remove cap “A” and loosen nut “B”. Then, using a screwdriver turn screw “C”.
  • Page 37 INSTRUCTIONS FOR SETTING LANDIS & GYR N° 8880 mod. SKP 10.110 B27 - SKP 10.111B27 Rev. 06/11/90 SINGLE STAGE GAS VALVES DESCRIPTION OF HOW THE VALVE OPERATES Single-stage valves When the valve receives the signal to open, the pump cuts in and the magnetic valve closes. The pump transfers the oil from under the piston to above it, forcing the piston downward, which compresses the closure return spring with the rod and plate.
  • Page 38 INSTRUCTIONS FOR HONEYWELL GAS N° 0002910370 VALVES UNIVERSAL GAS VALVES TYPE: VE Rev. 25/06/96 4000A1 (..A ..= Opening - Closure, rapid) The VE 4000A1 valves are Class A solenoid valves, normally closed. They may be used as ON/OFF valves in the supply trains with Natural Gas, Manufactured Gas or GPL, on burners or combustion installations.

  • Page 39: Electromagnet

    CONTROL BOX FOR LFL 1... N° 7451 SERIES 02 GAS BURNERS Rev. 10/1997 Control box for burners of average and high power, with forced draught, intermittent service (*), 1 or 2 stages, or modulating types, with supervision of the air pressure for controlling the air damper. This control box bears the EC mark, in accordance with the Gas and Electromagnetic Compatibility Directive.
  • Page 40 CONTROL BOX FOR LFL 1... N° 7451 SERIES 02 GAS BURNERS Rev. 10/1997 Electrical connections The burner manufacturer’s diagram is valid for the relief valve connections. LEGEND For the entire catalogue sheet QRA.. UV probe Thermostat or pressure probe Limit switch commutation contact for air damper OPEN position Fuel valve with continuous regulation Remote signalling of lock-out stop (alarm)
  • Page 41 CONTROL BOX FOR LFL 1... N° 7451 SERIES 02 GAS BURNERS Rev. 10/1997 Notes on the programmer Programmer sequence Output signals on terminals Times Legend time (50 Hz) in seconds 31.5 ..t1 Pre-ventilation time with air damper open 3 .... t2 Safety time - ....
  • Page 42 CONTROL BOX FOR LFL 1... N° 7451 SERIES 02 GAS BURNERS Rev. 10/1997 t2', t3', t3': These times are valid only for series 01 or LFL1.335, LFL1.635, LFL1.638 burner control and command equipment. They are not valid for types of Series 032, since they involve simultaneous activation of cams X and VIII. Working The above diagrams illustrate both the connection circuit and the sequencer mechanism control program.
  • Page 43 N° CONTROL BOX FOR LFL 1..SERIES 02 GAS BURNERS Rev. 10/1997 Control program in the event of stopping, indicating position of stop As a rule, in the event of any kind of stop, the fuel flow is cut off immediately. At the same time, the programmer remains immobile, as does the switch position indicator.
  • Page 44 LDU 11.. GAS VALVE TIGHTNESS CONTROL EQUIPMENT LDU 11 equipment is used to verify tightness of valves on natural gas burners. The LDU 11 combined with a normal pressure switch automatically verifies tightness of natural gas burners valves, before every start up and immediately after each stop. Tightness control is carried out by two-stage verification of gas circuit pressure in the section between the two burner valves.
  • Page 45 LDU 11.. GAS VALVE TIGHTNESS CONTROL EQUIPMENT Control programme Putting control circuit under atmospheric pressure 7,5s Time between start-up and energizing of main “AR” relay 22,5s 1st verification stage at atmospheric pressure Putting control circuit gas under pressure 27,5s 2nd verification stage at gas pressure 67,5s Total time of tightness control, up to burner operation consent 22,5s Return of programmer to rest position = fresh verification is enabled remote alarm signalling...
  • Page 70 Via Ferrarese 10 - 44042 CENTO (Ferrara) ITALIA Tel. 051.684.37.11 Fax 051.685.75.27/28 (International Tel. ++39.051.684.37.1 1 - Fax ++39.051.683.06.86) Technical data in this brochure are given as information only. http://www.baltur.it - http://www.baltur.com Baltur reserves the right to change specification, without notice. E-MAIL info@baltur.it...
