PB TEEN Emerson Full Bed Assembly Instructions

•

Please read all instructions before beginning assembly.

•

For your safety and convenience, assembly by three people is recommended.

•

Remove all parts and hardware from packaging and identify by comparing to lists below. Do not discard any contents until

assembly is complete to avoid discarding any parts or hardware.

TOOLS:

(1) Open spanner

(1) Headboard –A

(8) Bolt (Ø5/16"x 3.5") -E

(6) Wood screw (Ø3/16 x 1"L) -I

Assembly Instructions:

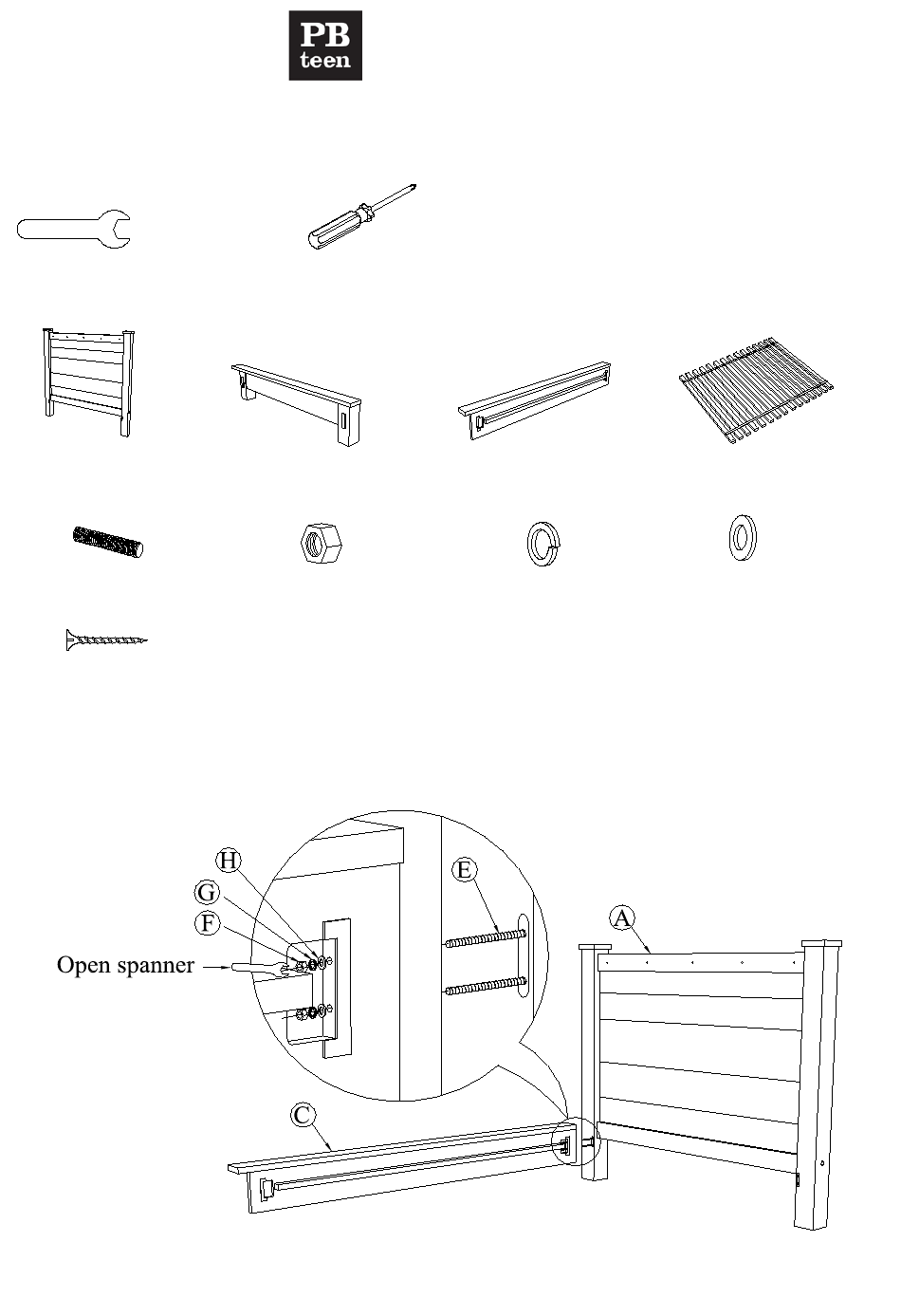

Carefully lay headboard (A) and side rail (B) on a carpet or scratch-free surface.

Turn bolts (E) into the threaded holes on metal plate of headboard (A). Align the bolts with the holes on end of side rail (C),

let the bolts pass though the holes of side rail, followed with flat washer (H), spring washer (G), nut (F), tighten by open

spanner provided. Repeat this process with another side rail (C). Fig. 1

Emerson Full Bed

Assembly Instructions

Phillips screwdriver （not included）

(1) Footboard- B

(8) Nut (Ø5/16") -F

(2) Side rail - C

(8) Spring Washer (Ø5/16") - G

Fig.1

Page 1 of 2

(1) Slat roll- D

(8) Flat Washers (Ø5/16") –H

Table of Contents

Do you have a question about the Emerson Full Bed and is the answer not in the manual?

Page 1 Emerson Full Bed Assembly Instructions • Please read all instructions before beginning assembly. • For your safety and convenience, assembly by three people is recommended. • Remove all parts and hardware from packaging and identify by comparing to lists below. Do not discard any contents until assembly is complete to avoid discarding any parts or hardware.
Page 2 Turn bolts (E) into the threaded holes on metal plate of footboard (B). Keep the same procedure of set up the headboard (A) for footboard (B). Fig 2. Open spanner Fig.2 Lay slat roll (D) in place over side rail supports. Attach by inserting the wood screws (I) through pre-drilled holes on the end Fig.
