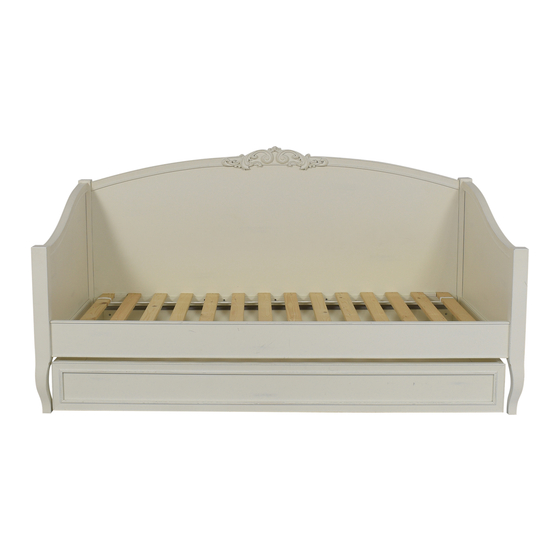

Lilac Daybed
•
Please read all instructions before starting to assemble.
•
Two adults are recommended during assembly.
•
Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware.
A – Headboard - 1 pc
D – Front Rail - 1 pc
(
F– Wood Screws
32mm
B – Footboard - 1 pc
)
- 32 pcs
www.pbteen.com
C – Back Panel - 1 pc
E – Slat Roll - 1 set
Advertisement
Table of Contents
Related Manuals for PB TEEN Lilac Daybed
Summary of Contents for PB TEEN Lilac Daybed
- Page 1 Lilac Daybed Pre-assembly: • Please read all instructions before starting to assemble. • Two adults are recommended during assembly. • Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware. Parts included: A – Headboard - 1 pc B –...
- Page 2 Tools required (not included): Phillips Head Screwdriver Assembly: 1. Hold the Back Panel (C) up to slots on the back legs of the Headboad and Footboard (A & B). Insert the hooks of the Back Panel (C) into the slots. Push down firmly on the top of rails until they seat themselves over the pins inside the leg slots, as shown below.
- Page 3 4. Adjust the recessed levellers underneath the legs of the Headboard / Footboard (A,B) to make sure the whole assembly is balanced. 5. Hardware should be checked periodically for tightness. Care Instructions: • Avoid direct sunlight and excessive temperatures. • Dust often using a clean, soft, dry and lint-free cloth.
- Page 4 Lilac Trundle Pre-assembly: • Please read all instructions before starting to assembly. • Two adult assembly is recommended • Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware. Parts included: B – Long Back Siderail - 1 pc A –...
- Page 5 Tools required (not included): Phillips Head Screwdriver Assembly: 1. Slide the Middle bottom board (E) into the (2) Side bottom boards (D) by fitting the protruding edge of the Side bottom board (D) with the sunken edge of the Middle bottom board (E). Make sure the side with the pre-drilled holes for wooden dowels on the Side bottom board (D) is facing up when assembling, as shown below.
- Page 6 4. Insert and tighten 10 Small Wood Screws (K) into the pre- drilled countersunk holes on the inner rails of the Long Front Siderail (A), the Long Back Siderail (B) and the Short Siderail (C) as shown below. 5. Hardware should be checked periodically for tightness. Care Instructions: •...
