Hardware Description
P2174HW-EN
2017-01

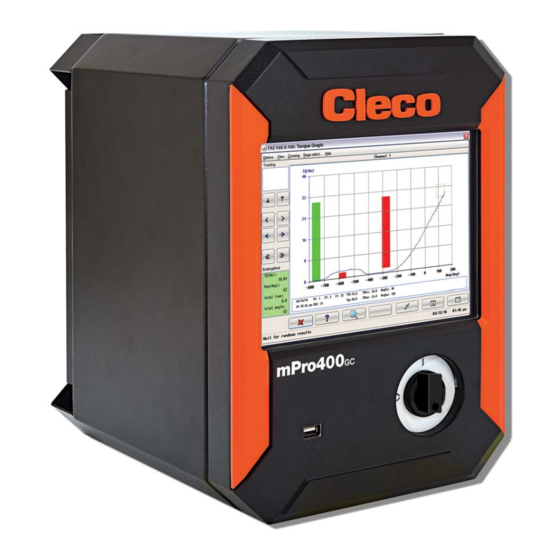

mPro400GC
Global Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGD mPro400GC and is the answer not in the manual?

Questions and answers

Related Manuals for Cleco DGD mPro400GC

Summary of Contents for Cleco DGD mPro400GC

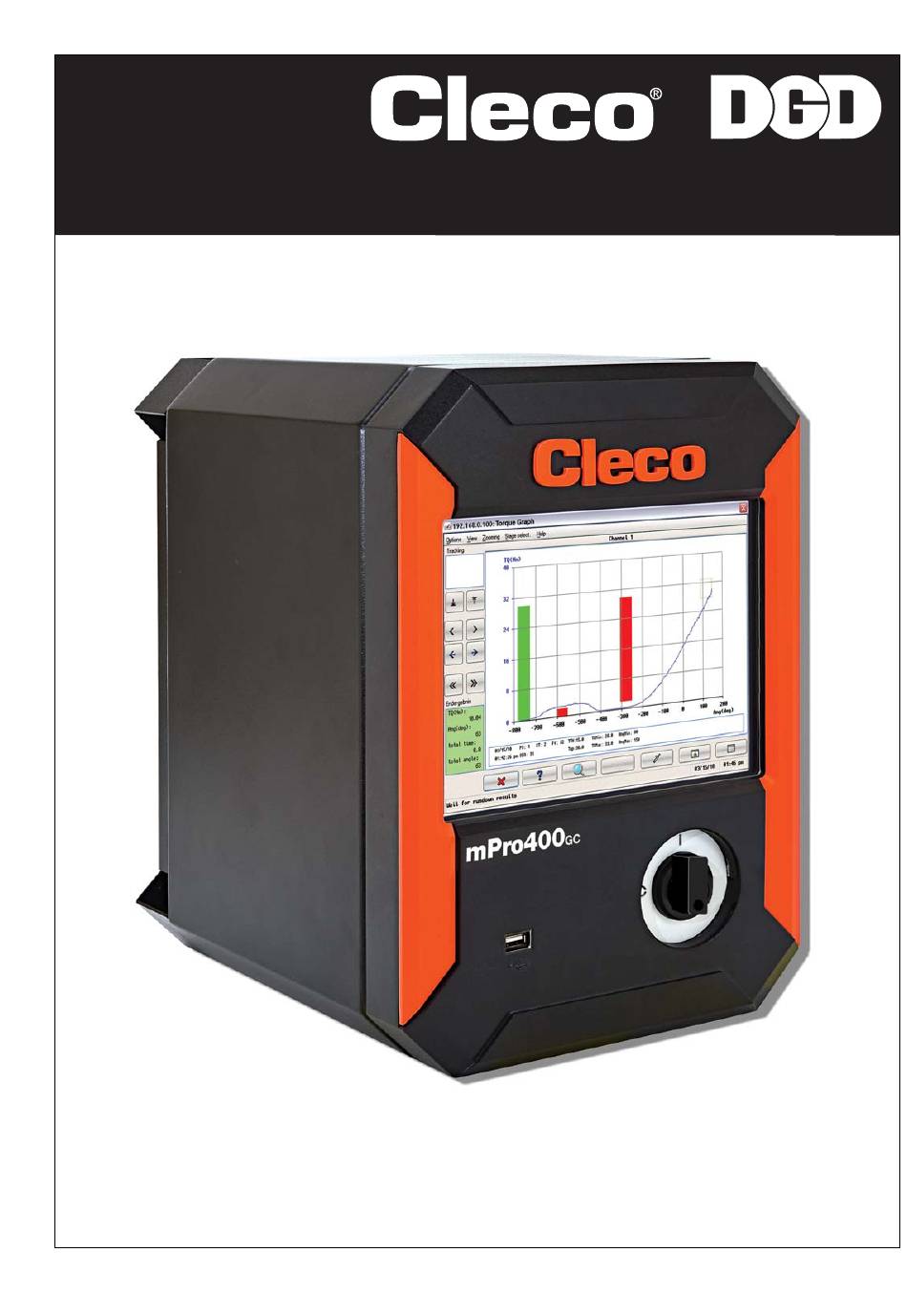

  • Page 1 Hardware Description P2174HW-EN 2017-01 mPro400GC Global Controller...
  • Page 2 Apex Tool Group. DGD and Cleco are trademarks of the Apex Tool Group Division. P2174HW-EN 2017-01 en00d451.fm, 12.01.2017...
  • Page 3 Workplace safety symbols Warning notes are identified by a signal word and a pictogram: • The signal word describes the severity and the probability of the impending danger. • The pictogram describes the type of danger. Observe these notes and proceed with special care in the situations described. Pass all safety instructions on to other operators.

  • Page 4: Controller Description

    Set-Up Guide Set-Up Guide Controller description The mPro400GC product line consists of three controllers; Master, Primary and Secondary. • Primary - Controls up to sixteen (16) tools. This unit includes a servo. One (1) standard corded hand- held or fixtured tool could directly connect. For further corded tools / fixtured spindles are Secondary controllers required.

  • Page 5: General Information

    Set-Up Guide General Information It is mandatory that national, state and local safety and wiring standards be followed during installation. These standards take precedence over any information presented in this section. CAUTION! To avoid the hazard of electrical shock or burn, the following instructions must be adhered to. Failure to fol- low these instructions may also cause damage to your unit and void existing warranties.

  • Page 6: Mounting The Controller

    Set-Up Guide • Location of printer • Attachment of a data collection unit, if desired. • Attachment of remote annunciators, socket nest, or remote parameter select. • Attachment of the unit in a network to a computer. • Operation convenience/safety – keep cables off the floor or dangling in operator areas. 1.5.3 Power source The controller requires a power supply connection of:...

  • Page 7: Making Connections To The Controller

    Set-Up Guide Abb. 1-3: illustrates the bolt pattern for hanging the mounting plate on a wall. Note the hole size dimensions so the correct size bolts are chosen. Size ¼“ or M6 bolts (4) should fit the mounting plate holes and support the controller. Once the mounting plate is installed in its location the controller can be hung on the bracket utilizing the four studs protruding from the back of the controller.
  • Page 8 Position Description Position Description System Bus Connector Serial Connector #2 Tool Connector Anybus Fieldbus Power Connection Serial Connector #1 Mounting Bracket Screw 11 USB ports (2) Mounting Bracket Screw 12 Ethernet Connector #2 I/O Connectors Ethernet Connector #1 Anybus Fieldbus Abb.
  • Page 9 10.38" (263 mm) 4× 1.315" 4× 7.750" (33.4 mm) (197 mm) 1.825" (46.4 mm) 2× 1.250" (31.8 mm) 2× 12.500" 14.88" (318 mm) (378 mm) 0.075" (1.9 mm) 10×.270“ (6.86 mm) 10×.503“ (12.8 mm) 10×.313“ (1.95 mm) Abb. 1-3: Mounting Information P2174HW-EN 2017-01 en02d441_bedingt.fm, 12.01.2017...

  • Page 10: Technical Data

    Technical Data 1.8.1 Housing The Global Controller is factory sealed with external access to all connectors. The front of the unit has a USB and power switch. On the back of the enclosure is a cover plate that can be removed to access the Compact Flash card which contains all program data.
  • Page 11 Pin 24 Pin 12 Pin 13 Pin 1 Abb. 1-4: Primary / Master Pin Configuration Pin # Description Pin # Description GND2 GND2 Common GND Common GND Output O 03 Output O 07 Output O 02 Output O 06 Output O 01 Output O 05...
  • Page 12 System Bus Connection Looking at Controller 1 – PE 2 – DATA-B 3 – GND 4 – +5VDC 5 – DATA-A 6 – N.C. 7 – 0VDC 8 – +24VDC Output (Sockets) Input (Pins) Abb. 1-5: System Bus Connection Note: The Primary configuration has an output connector only. The Secondary and Master configurations have both an input and output connector.
  • Page 13 Pin # Description Pin # Description Common GND2 Common GND Common GND Common GND Output O 03 Output O 07 Output O 02 (Yellow LED) Output O 06 Output O 01 (Green LED – OK) Output O 05 Output O 00 (Red LED – NOK) Output O 04 Input...
  • Page 14 OUTPUTS: Pins 2 and 14 (Output Common) are the voltage source for the Outputs • Controller Internal 24-volt Supply Pins 2 and 14 must be connected to Pins 1 and 13 respectively. Connector 1 Connector 2 Pin # Description Pin # Description GND2 GND2...
