4000 Series
Art. 4871 - 4872 - 4873
Rainshields for 4000 Series flush mounting boxes Art.4851, 4852 and 4853

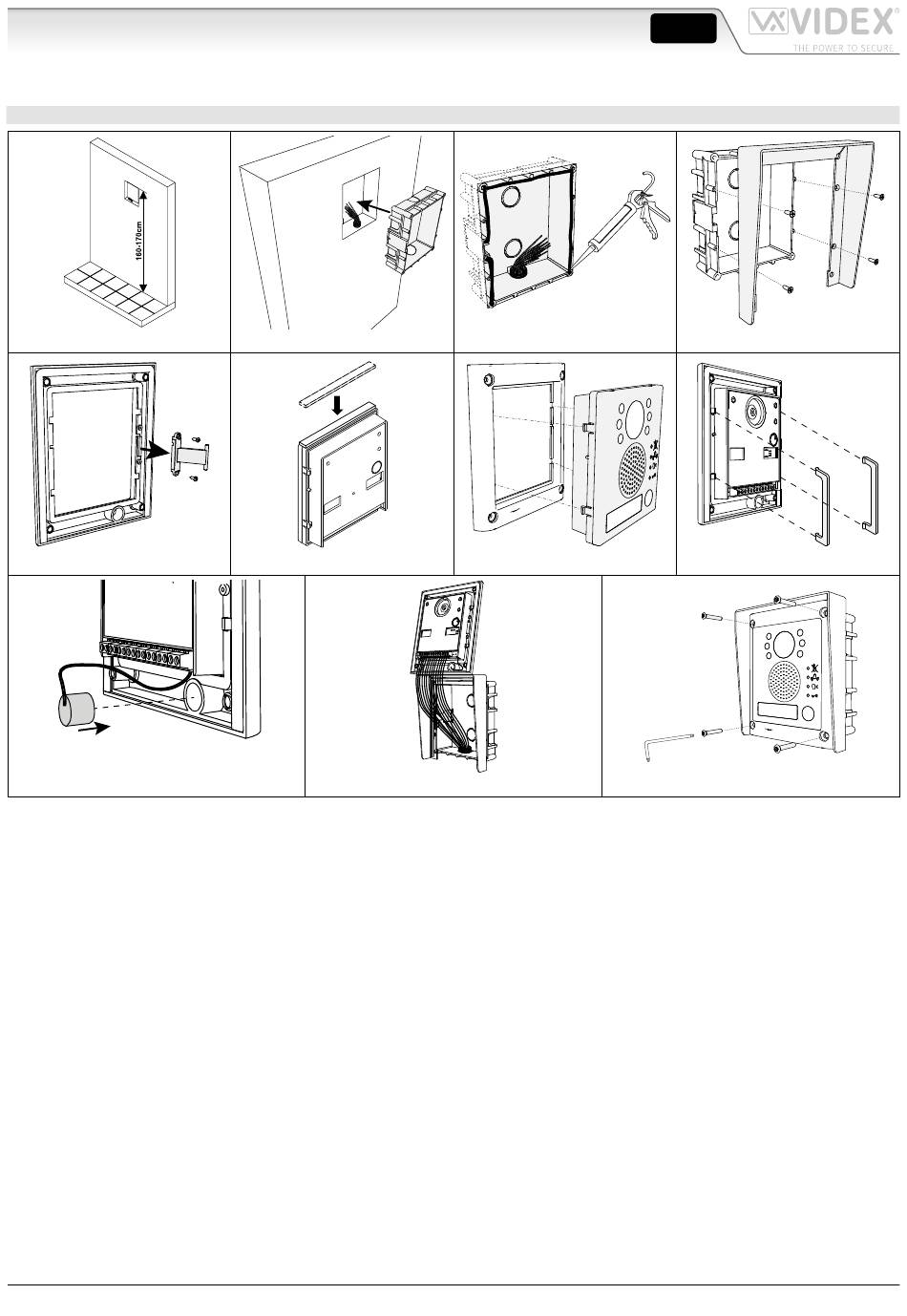

EXAMPLE OF ART. 4871 INSTALLATION
Fig. 1
Fig. 5
Fig. 9
1. Prepare the flush-mounting of the box in the wall 160-170 cm between the height of the box and the ground, as well as the
cable routing. (Fig. 1)
2. Cut out a hole in the flush-mounted box for the cables to pass through. Seal the flush-mounted box in the wall. (Fig. 2)
3. Make a silicone seal on the top front part of the flush-mounted box and on the sides. (Fig. 3)
4. Attach the shield to the flush-mounted box using the four screws provided. (Fig. 4)
5. Remove the hinge from the frame. (Fig. 5)
6. Place the self-adhesive silicone band on the top part of the door station module. (Fig. 6)
7. Clip the door station module onto its frame. (Fig. 7)
8. Clip the two locking plates into place on the rear of the door station module. (Fig. 8)
9. Install the microphone in position at the bottom of the frame. (Fig. 9)
10. Position the frame and door station in such a manner as to cable it and access the settings: see the door station installation guide. (Fig. 10)
Note: Protect the front face of the door station to prevent accidental scratches.
11. After testing the installation to check it works correctly, close the frame gently while making sure not to trap microphone wires.
Tighten the four tamperpro of Torx screws with the key provided. (Fig. 11)
4000 Series rainshields - Mounting instructions
Fig. 2
Fig. 6
Fig. 10
Fig. 3
Fig. 7
Fig. 11
ENG
Fig. 4
Fig. 8
66800017-EN - V1.0 - 31/01/17
