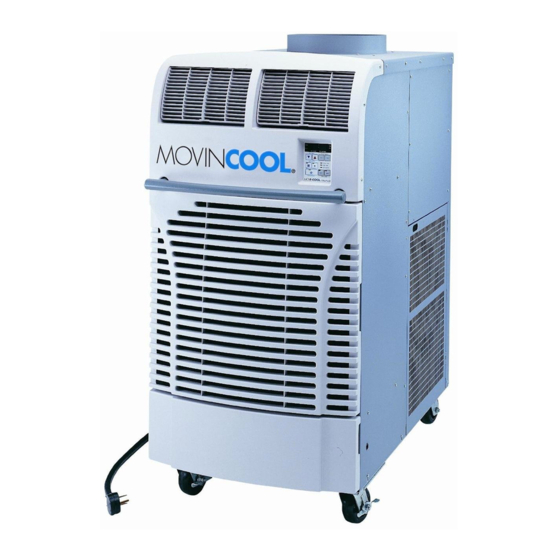

Movincool Office Pro 36 Quick Start Manual

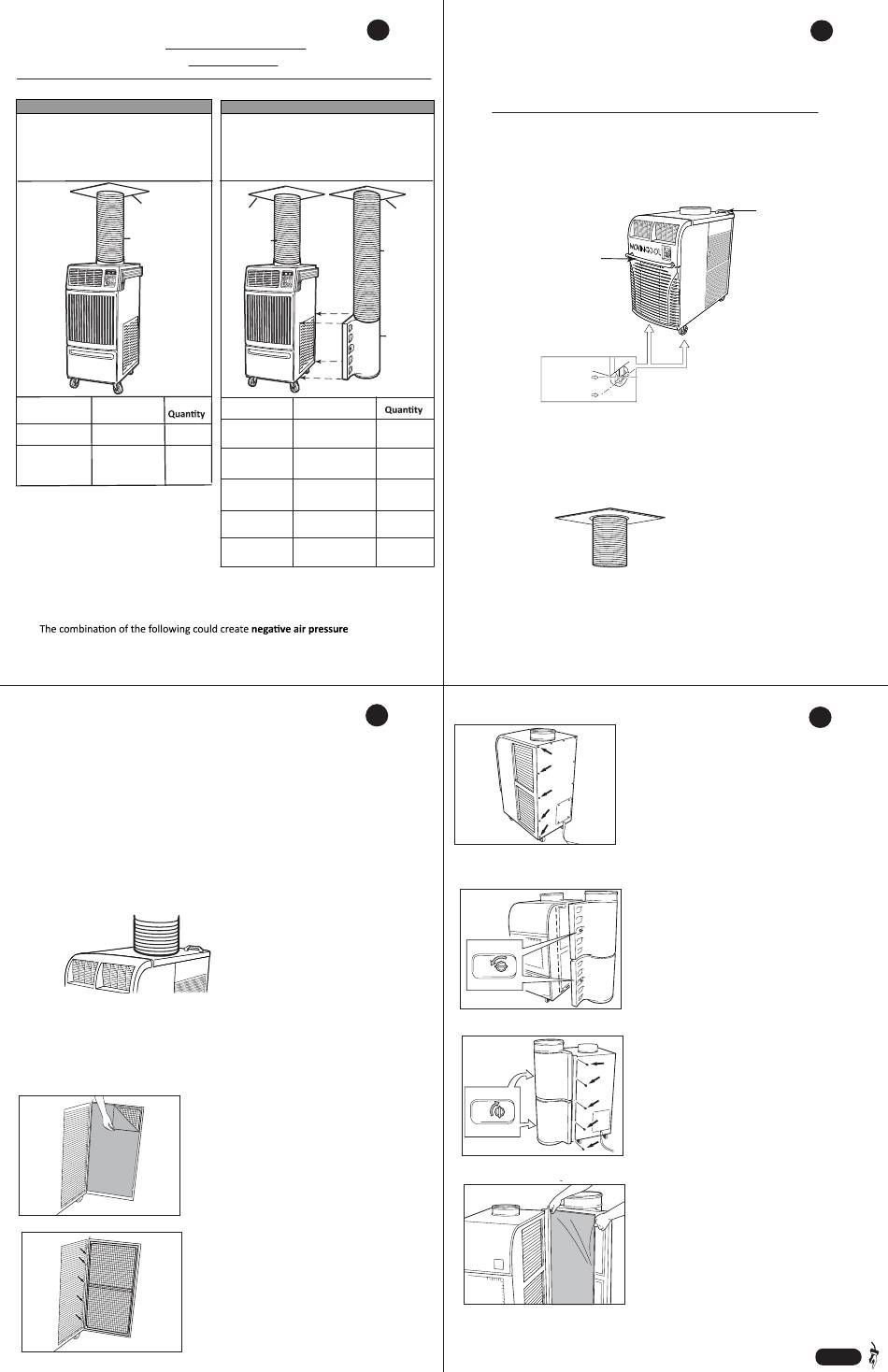

QUICK START GUIDE

Refer to the operation manual and pay attention to all the warnings and cautions throughout the manual

Typical Installation Options

CONDITION TO USE OPTION 1
No negative air pressure** in the room
and the temperature of the infiltrated
air is below the room temperature.
Operating temperature Range:
Between 65 °F (18 °C) to 95 °F (35 °C)
Ceiling Tile
(with 16" hole)
Flexible Duct
Kit (16" Dia)
Accessory
Part Number
Name*
Ceiling Tile GX484410-8940 1
Flexible Duct
LAY45820-0010 1
Kit
*Accessories Sold Separately
NOTE: Ensure that the warm air moves away from the ceiling and the heat is dissipated.
If your application does not meet this requirement, then extend the duct to the nearest
exhaust point based on the Maximum Equivalent Length listed in the operation manual.
**
-
MovinCool unit is installed and runs using OPTION 1.
-
Door to the room is closed.
-
No other source of air entering the room.
• Removal of original ceiling tile:
Remove the original selected ceiling tile from the ceiling (if the tile is 2' x 4', then cut
the tile into 2' x 2' and place one piece back into the ceiling at the end).
• Installation of the ceiling tile with the duct:
Place the ceiling tile (with the duct) inside the ceiling.
• Warm air flexible duct attachment to the unit:
1) Place the duct over the flange on the top of the unit (see figure below).
2) Secure the duct to the flange with clamp included with the ceiling tile (with 16" hole).
C) OPTION 2 set up steps
• Condenser Air Plenum Installation:
Of�ice Pro 36
CONDITION TO USE OPTION 2
Negative air pressure** in the room.
Operating temperature Range:
Between 65 °F (18 °C) to 95 °F (35 °C)
Ceiling Tile
(
with 16" hole)
Flexible Duct
Kit (16" Dia)
Accessory
Part Number
Name*
Ceiling Tile
GX484410-8940
(with 16" hole)
Ceiling Tile
LA146373-8280
(with 12" hole)
Flexible Duct
LAY45820-0010
Kit (16" Dia)
Self Supported
481744-0060
Duct (12" Dia)
Condenser Air
LAY84270-0020
Plenum
1) Open the condenser door, remove the filter
and set it aside.
2) Remove the five (5) screws that attach the
filter door hinge to the condenser side panel.
Remove the door hinges from the unit (save the
screws and the filter for later use).
1
NOTE: Refer to the operation manual for details on choosing the installation site
A) Roll the unit into the space that needs cooling
• Moving the unit:
Unlock the casters and push the MovinCool unit using the handles to a flat, level
surface and set the casters back to the LOCKED position.
Ceiling Tile
(with 12" hole)
Self
Supported
Duct (12" Dia)
Condenser
Air
Plenum
1
B) OPTION 1 set up steps
1
• Warm air flexible duct attachment to the ceiling tile:
1) Slide one end of the flexible duct to the ceiling tile flange (see figure below).
1
1
1
2) Secure the flexible duct to the ceiling tile flange with the clamp included with the
ceiling tile.
3
Handle
Unlocked
Locked
3) Temporarily remove the five screws from the
left side of the rear panel.
4) Turn the latches of the Air Plenum
counterclockwise until they stop. Place the
Air Plenum over the condenser and align the
hinge/bracket assembly mounting holes with
the respective holes on the back of the unit.
5) For ease of installation, turn the latches to the full
clockwise position. (This will hold the front part of
the Plenum onto the unit). Attach the hinge/bracket
of the Air Plenum to the rear of the unit using the
five screws that were temporarily removed in Step 3.
6) Open the Air Plenum by turning latches counter-
clockwise and install the air filter element (from the
condenser door) onto the Air Plenum (as indicated).
7) Close and secure the Air Plenum to the unit.
2
Handle
4
.
