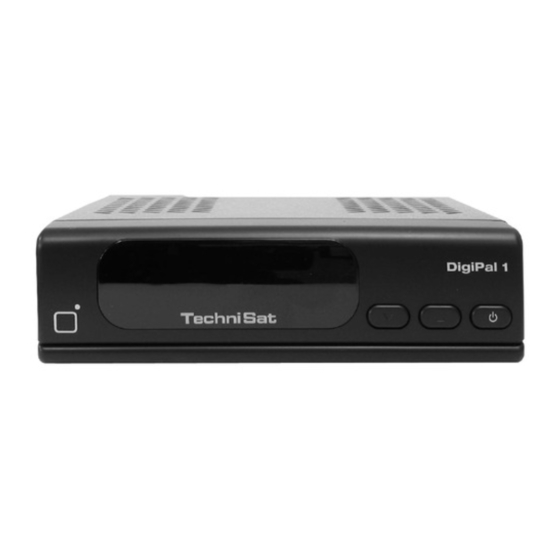

TechniSat DigiPal 1 Operating Manual

Receiver for dvb-t programmes
Hide thumbs Also See for DigiPal 1:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

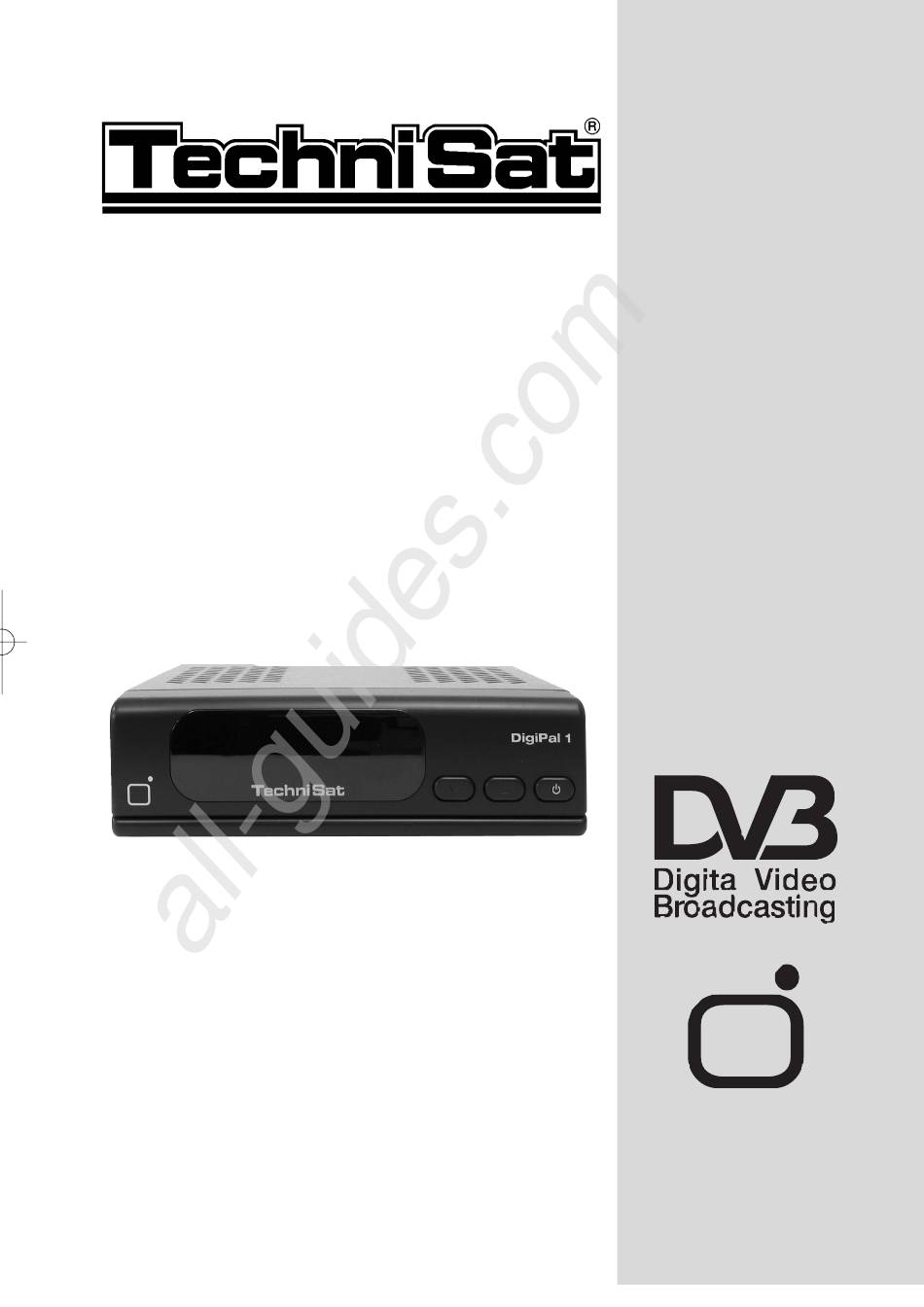

DigiPal 1
Art.-No. 0000/4903
Receiver for
DVB-T programmes
Operating Manual
E E
P P
G G
E E
P P
G G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiPal 1 and is the answer not in the manual?

Questions and answers

Related Manuals for TechniSat DigiPal 1

Summary of Contents for TechniSat DigiPal 1

  • Page 1 All manuals and user guides at all-guides.com DigiPal 1 Art.-No. 0000/4903 Receiver for DVB-T programmes Operating Manual...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com 1 Contents Contents ....2, 5 Illustrations ....3 Please read this first .
  • Page 3 Not liable for printing errors, alterations may be effected without notice. Current as per 10/02 Copying and reproduction subject to permission by the publisher. TechniSat and DigiPal 1 are registered trademarks of TechniSat Digital GmbH P.O. Box 560 D-54541 Daun Germany www.

  • Page 4: Illustrations

    All manuals and user guides at all-guides.com 2 Illustrations Remote control Language selection Sound on/off On/stand-by TV/Radio operation Numeric keypad Menu on/off Info key Arrow key up Programme up Volume - Arrow key left Programme list on/off Volume + Arrow key right Programme down Back Arrow key down...

  • Page 5: Front View

    All manuals and user guides at all-guides.com Front view LED display On/Standby Programme selection up/down Rear view Input terrestrial aerial (antenna feed +5V/100mA/ DC input switchable via OSD) Antenna SCART socket TV output RS 232 interface...

  • Page 6: Please Read This First

    All manuals and user guides at all-guides.com 3 Please read this first > Before you start operating the receiver, please check that all necessary parts have been delivered. You should have the following: 1 receiver, 1 mains plug/adapter, 1 remote control, 1 operating manual, 1 guarantee card, 2 batteries (1,5V micro-cells).

  • Page 7: Safety Notices

    All manuals and user guides at all-guides.com Safety precautions For your own protection you should read the safety precautions carefully before operating your new receiver. The manufacturer accepts no liability for damage caused by inappropriate handling, or by non-compliance with the safety precautions.

  • Page 8: Initial Installation

    All manuals and user guides at all-guides.com Important notes on operation The use of so-called "On Screen Displays" (see example) simplifies the operation of the receiver, and reduces the num- ber of keys required on the remote control. All functions are indicated on the TV screen, and can be adjusted with a few key-strokes.
  • Page 9 All manuals and user guides at all-guides.com Press the OK key to display the selection window for > the OSD language. (Fig. 3-3) Use the arrow keys up/down to mark the required > language. (Fig. 3-3) Confirm with OK, in order to advance to the selection >...
  • Page 10 All manuals and user guides at all-guides.com Connecting the DVB receiver Connection to a TV set by means of a Scart cable: a. Connection from antenna to the terrestrial antenna input of the DVB-T receiver. b. Mains power connection c. Scart connection from the DVB-T receiver to the television set.

  • Page 11: Connections

    All manuals and user guides at all-guides.com 4 Connections The references a b c etc. stated below refer to the illustration on page 10. 4.1 Mains power connection The receiver should only be connected to the mains power supply when the unit has been completely connected with all other relevant components.

  • Page 12: Tuning The Uhf Channel

    All manuals and user guides at all-guides.com You must now tune your TV set to the transmission channel of the receiver. Select a free programme slot on your TV set and tune it to channel 41 (refer to operating manual of the TV set if necessary).

  • Page 13: Adjusting The Antenna

    All manuals and user guides at all-guides.com Your receiver will now check automatically whether the channel you have selected, as well as the lower neig- hbouring channel adjoining it, are free (Fig. 4-4). If the channel is already occupied, a note to this effect will (Fig.

  • Page 14: Installation

    All manuals and user guides at all-guides.com 5 Installation Now that you have connected your receiver, and commenced operation, you can turn to optimising the setting for your personal preferences. 5.1 OSD Language This menu item gives you the option of selecting the menu language of your choice.

  • Page 15: Parental Control

    All manuals and user guides at all-guides.com 5.2.1 Parental control Your receiver is equipped with a parental control function. Programmes that you have blocked in line with Points 7.1.5 and 7.2 can only be viewed after a four-digit PIN code has been entered.

  • Page 16: Image Format

    All manuals and user guides at all-guides.com Confirm by pressing OK. The menu Audio/ Video > Settings will be displayed. (Fig. 5-5) You can use the arrow keys up/down to move the > marker within the menu, and to change the individual positions as indicated.

  • Page 17: Switching On And Off

    All manuals and user guides at all-guides.com 6.1 Switching on and off Switch the receiver on by pressing the On/Standby > key, either on the receiver itself or on the remote control unit. > Pressing this key again on the receiver or on the remote control will switch the receiver off again.

  • Page 18: Volume Adjustment

    All manuals and user guides at all-guides.com 6.2.3.1 Selecting a list The receiver is equipped with several programme lists, which facilitate the finding of programmes. You can select either your personal Favourites list (see Point 7.1), or you can choose to have the programmes sorted according to the Alphabet or by Provider.

  • Page 19: Selecting A Different Language

    All manuals and user guides at all-guides.com When switching on the receiver from standby, sound will be produced at the volume level last set. > The volume of your receiver can be increased by using the Volume + key, or you can make it softer by using the Volume - key.

  • Page 20: Display Time And Programme Info

    All manuals and user guides at all-guides.com 6.7 Display Time and Programme Information This function allows you to view programme information related to the programme currently selected. Press the blue key to display information for the > programme selected. On the lower half of the screen you will see a display showing current time, the name of the programme selected, as well as the start and end times of the current programme, where available from the broadcaster.

  • Page 21: Electronic Programme Guide

    All manuals and user guides at all-guides.com 6.10.2 Using the internal Videotext decoder If your television set is not equipped with an integrated videotext decoder, you can still receive videotext via your receiver, wherever available from the broadcaster. > Select and switch to the programme of which you would like to view the videotext information.

  • Page 22: Epg Information

    All manuals and user guides at all-guides.com 6.11.3 EPG Information Where this is broadcast by the provider, the EPG function will provide you with information on the contents of various programmes: Use the arrow up/down keys to select the > appropriate programme.

  • Page 23: Manual Programming

    All manuals and user guides at all-guides.com 6.12.2 Manual Programming / changing timer settings In addition to EPG timer programming, you can also use manual programming. To use manual programming, proceed as follows: Use the Menu key to call up the Main Menu. >...
  • Page 24 All manuals and user guides at all-guides.com Repeat (optional) Use the arrow key right to highlight the category > Rep. Confirm by pressing OK. > A selection window will be displayed, showing various suggestions for repeats. Timer on Daily repeat 1xW Repeat once per week Daily repeat on workdays only Daily repeat on weekends only...

  • Page 25: Changing Basic Programming

    All manuals and user guides at all-guides.com 7 Changing basic programming 7.1 Configuring the programme list This chapter describes how you can change and adapt the preprogramming of your receiver as well as the Favourites programme list to suit to your own preferences. This function is also required to sort newly found programmes into the list after a programme search.

  • Page 26: Deleting Programmes

    All manuals and user guides at all-guides.com Press the green function key (Select) to display a > selection window. (Fig. 7-3) Now use the arrow keys up/down to mark the > category All in order to display all available programmes in the Total list, or select All new to display only new programmes found during the last scan, or select All found to display all programmes found during the last scan.

  • Page 27: Sorting Programmes

    All manuals and user guides at all-guides.com Press the red function key (Delete). > The message “Do you really want to delete the programme(s)?” will be displayed. Use the arrow keys left/right to select Yes or > Confirm by pressing OK. >...

  • Page 28: Changing The Pin

    All manuals and user guides at all-guides.com To block access to a programme, proceed as follows: Call up a programme list by pressing OK. > Press the blue function key (Change). > Now use the arrow keys up/down to select the >...

  • Page 29: Lifting Programme Block

    All manuals and user guides at all-guides.com 7.3 Cancelling parental control for individual programmes In order to delete the parental control block for individual pro- grammes, proceed as per Point 7.1.5. First press the blue function key (Change), then enter the PIN code. Select the appropriate programme and use the green function key (Parental Control) to remove the access control.

  • Page 30: Expanded Search Function

    All manuals and user guides at all-guides.com 7.4.2 Extended search When performing an extended search (Fig. 7-7) you have two options of performing this. 1. Frequency search The user specifies a frequency range which is then scanned for programmes. 2. Channel search In this case, the user specifies a range of channels, which is then scanned for programmes.

  • Page 31: After A Scan

    All manuals and user guides at all-guides.com Confirm by pressing OK. The menu Search > Manual Search will be displayed (Fig. 7-8) To search a channel for programmes, use the arrow > keys left/right to enter the channel. Press the red function key (Start Search) to commen- >...

  • Page 32: Calling Up Default Setting/Delete All

    All manuals and user guides at all-guides.com 7.5 Calling up factory settings/Delete All You can return to the original factory (default) settings at any time. You can also, if the programme list is completely outda- ted because of changes made by programme providers, delete this completely, and then perform a new search.

  • Page 33: System Configuration

    All manuals and user guides at all-guides.com 7.6 System configuration This menu item allows you to view the specific unit data. Use the arrow keys up/down to select this line in > the sub-menu Settings. Confirm by pressing OK. > Press the Menu key to return to normal operation.

  • Page 34: Technical Data

    All manuals and user guides at all-guides.com Mode: determines whether a mono or a stereo programme is received OSD: On Screen Display (messages shown on TV screen) PID: Packet Identifier, Packet-ID SCART: Type of plug/socket connection used in television sets, video recorders, satellite receivers and other entertainment electro- nics products to transmit both sound and picture (audio and visual, or AV) signals.

  • Page 35: Audio Decoding

    All manuals and user guides at all-guides.com Image material 16:9 Automatically adapted for 16:9 TV sets (via SCART) Letterbox filtering for 4:3 TV sets Audio decoding: Audio compression MPEG-1 & MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz, Audio parameters:...

  • Page 36: Trouble-Shooting Guide

    All manuals and user guides at all-guides.com Mains power supply: External mains connector: 12V / 600 mA Power requirement: < 10 W (in operation, incl. power feed to antenna) Input Voltage: 12 V ..15 V Direct current General: Ambient temperature +15°C...+35°C Humidity <...
  • Page 37 All manuals and user guides at all-guides.com Problem Possible cause Solution Display on, no picture, no sound Defective or no cable Check all cable connections connection Display off, no picture, no sound No mains power supply Check mains power switch No reception of programmes Antenna has moved Check antenna...
  • Page 38 All manuals and user guides at all-guides.com For everyday use Switching on and off Switch the receiver on by pressing the On/Standby > key, either on the receiver unit itself or on the remote control. > Press the key again either on the receiver unit or on the remote control to switch the receiver off again.
