B. Connect to a MatchPort AR or MatchPort NR
You have only one option for connecting to a MatchPort AR or MatchPort NR:

Wired connection via Ethernet

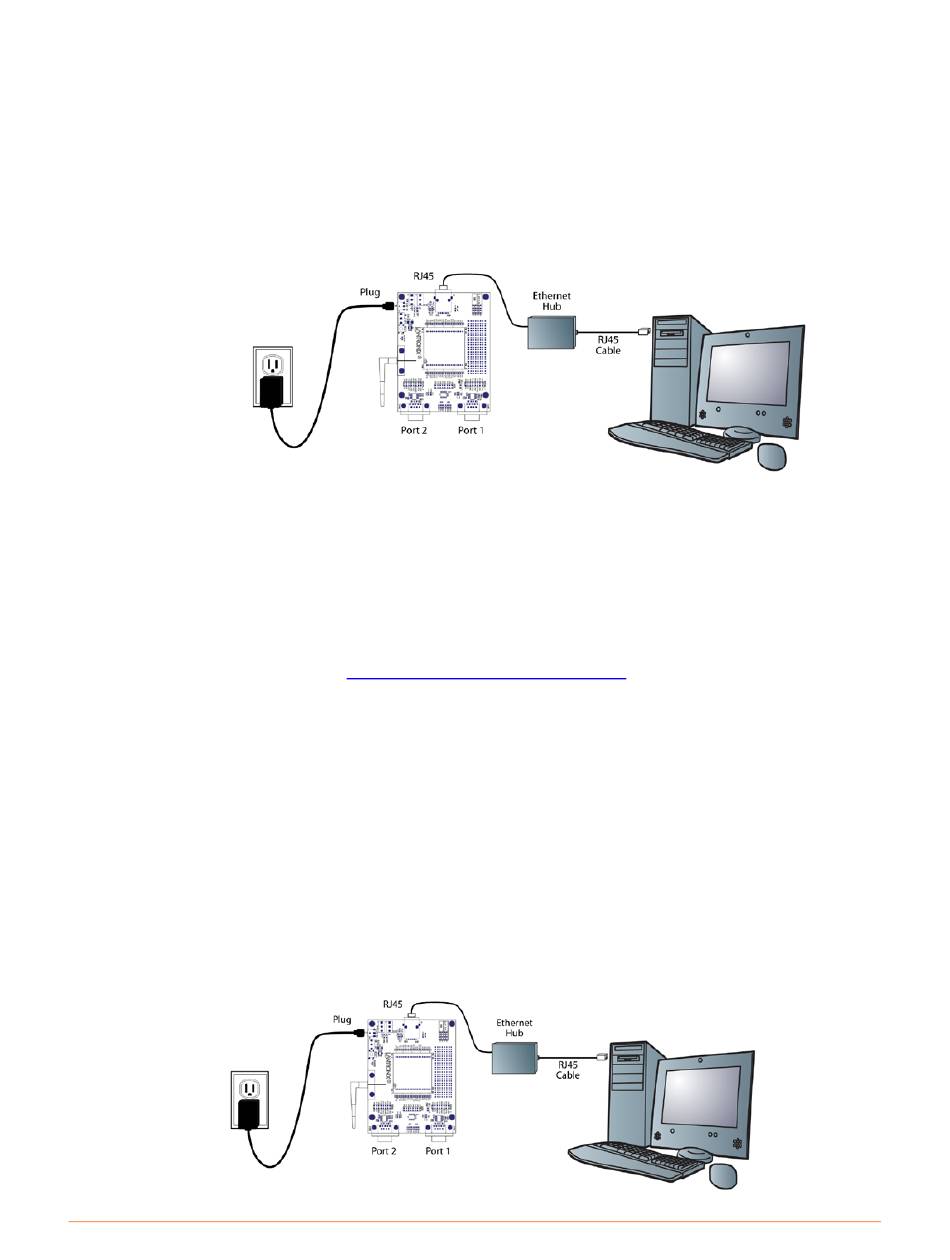

1. Connect the PC to the Evaluation Board with a cross-over cable or a
hub/switch and two RJ45 cables. Make sure there is no router between the
PC and the Evaluation Board.
2. Select the appropriate power plug adaptor for your geographical location.
Insert it into the slot on the Universal Power Supply; then plug the power
supply into an outlet.
3. Connect the output plug of the power supply to the Evaluation Board.
4. Move the power switch on the Evaluation Board to ON.
This is the last step in 'connection.' The MatchPort is ready for configuration
5. Continue with
C. Connect to a MatchPort b/g Pro
You have three options for connecting to a MatchPort b/g Pro:
1. Wired connection via Ethernet cable.
2. Wireless connection via Wireless router (Infrastructure)
3. Wireless connection via Wireless card (Adhoc – factory default)

Option 1: Wired connection via Ethernet

1. Connect the PC to the MatchPort Evaluation Board with a cross-over cable or
a hub/switch and two RJ45 cables. Make sure there is no router between the
PC and the Evaluation Board.
MatchPort Demonstration Kit Quick Start
Install DeviceInstaller on page 10.
6
