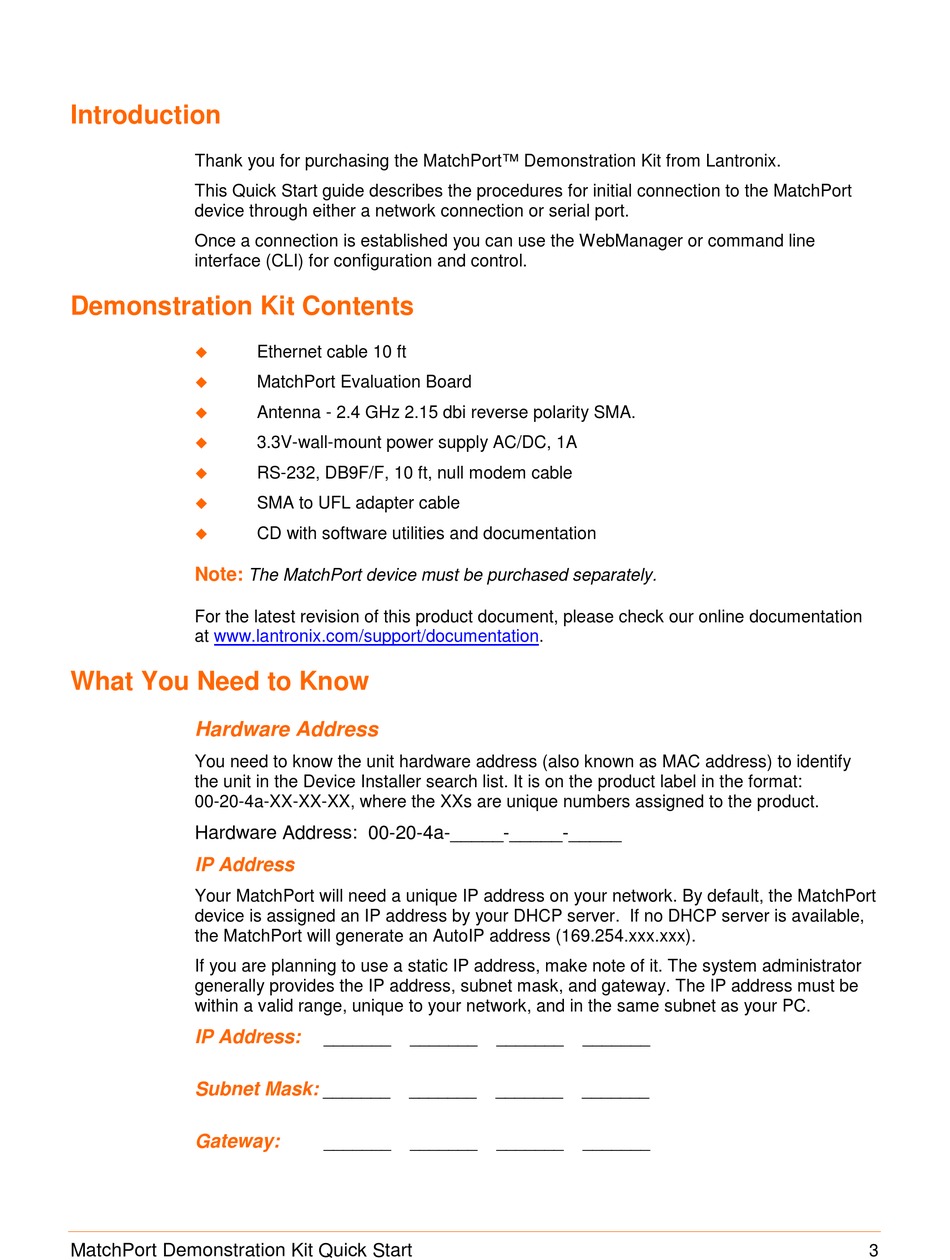

Introduction

Thank you for purchasing the MatchPort™ Demonstration Kit from Lantronix.
This Quick Start guide describes the procedures for initial connection to the MatchPort
device through either a network connection or serial port.
Once a connection is established you can use the WebManager or command line
interface (CLI) for configuration and control.

Demonstration Kit Contents








Note:
The MatchPort device must be purchased separately.
For the latest revision of this product document, please check our online documentation
at www.lantronix.com/support/documentation.

What You Need to Know

Hardware Address

You need to know the unit hardware address (also known as MAC address) to identify
the unit in the Device Installer search list. It is on the product label in the format:
00-20-4a-XX-XX-XX, where the XXs are unique numbers assigned to the product.
Hardware Address: 00-20-4a-_____-_____-_____

IP Address

Your MatchPort will need a unique IP address on your network. By default, the MatchPort
device is assigned an IP address by your DHCP server. If no DHCP server is available,
the MatchPort will generate an AutoIP address (169.254.xxx.xxx).
If you are planning to use a static IP address, make note of it. The system administrator
generally provides the IP address, subnet mask, and gateway. The IP address must be
within a valid range, unique to your network, and in the same subnet as your PC.
IP Address:
Subnet Mask:
Gateway:
MatchPort Demonstration Kit Quick Start
Ethernet cable 10 ft
MatchPort Evaluation Board
Antenna - 2.4 GHz 2.15 dbi reverse polarity SMA.
3.3V-wall-mount power supply AC/DC, 1A
RS-232, DB9F/F, 10 ft, null modem cable
SMA to UFL adapter cable
CD with software utilities and documentation
_______ _______
_______ _______
_______ _______
_______ _______
_______ _______
_______ _______
