UPSI-IP-1-Serie | UPSI- IP-2-Serie

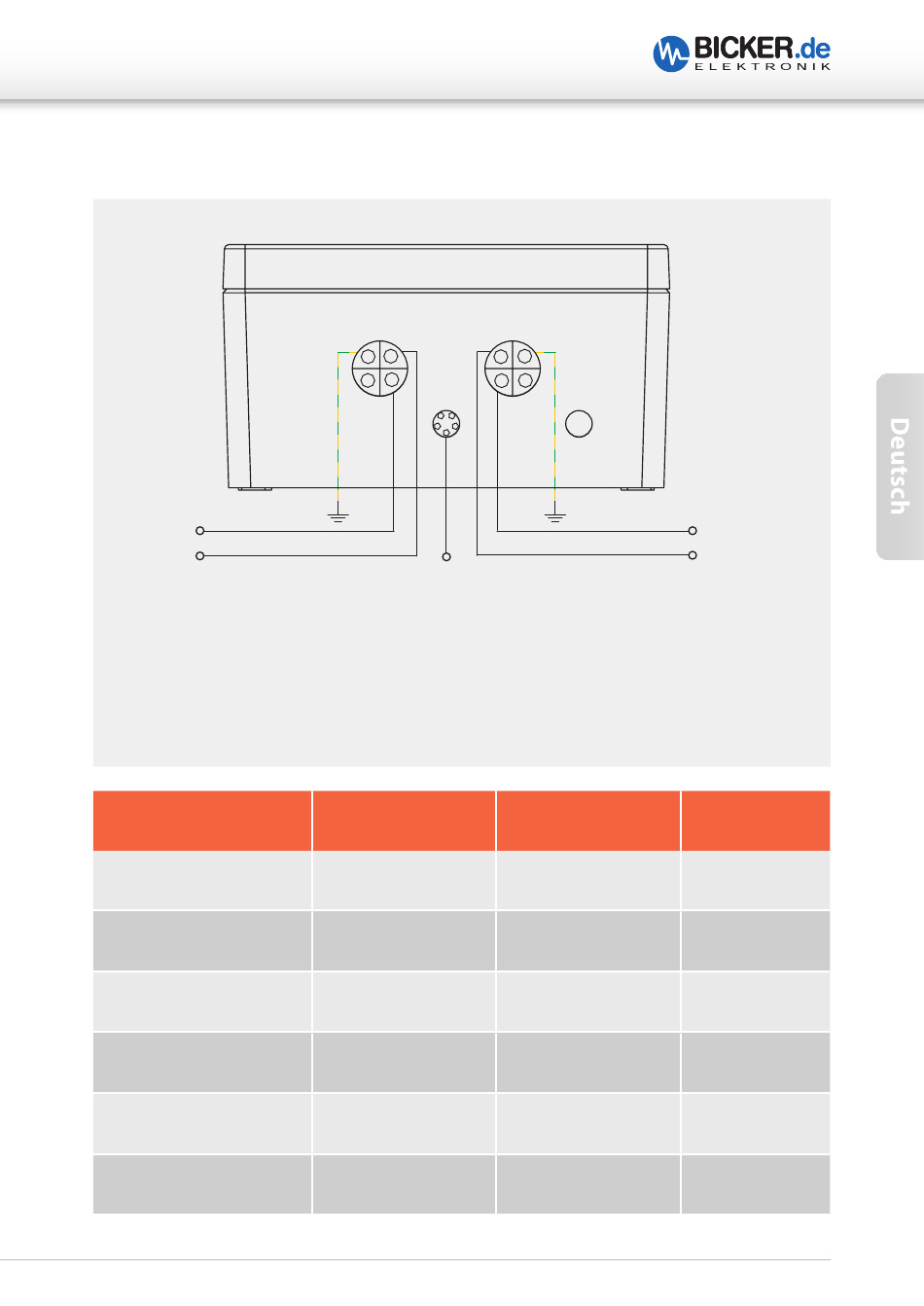

Anschlussbeschreibung UPSI-IP-2-Serie
IN– (black 2)
IN+ (black 1)
DC connector 1
1 Input (+)
2 Input (–)
3 n.c.
4 FG
Connector
DC connector 1
(case side) for V
IN
DC connector 2
(case side) for V
OUT
USB interface connector
(case side)
DC counter connector 1
(cable side)
DC counter connector 2
(cable side)
USB interface counter
connector (cable side)
USB interface connector
DC connector 1
DC connector 2
1
4
3
2
1
2
5
3
4
USB
DC connector 2
1 Output (+)
2 Output (–)
3 n.c.
4 FG
Description
RD24 flange plug,
poles 3+PE
RD24 flange socket,
poles 3+PE
Snap-in flange
socket, 5 poles
RD24 cable socket,
poles 3+PE
RD24 cable plug,
poles 3+PE
Snap-in cable plug,
5 poles
4
1
3
2
OUT– (black 2)
OUT+ (black 1)
USB interface connector
1 Data (–)
2 +5 V
3 GND
4 Shielding
5 Data (+)
Manufacturer
Binder Connector
Binder Connector
Binder Connector
Binder Connector
Binder Connector
Binder Connector
Part No.
09 4223 150 04
09 4224 00 04
99 9116 00 05
99 0210 00 04
99 0209 00 04
99 9113 02 05
9
