OIM MANUAL
Operation • Installation • Maintenance
To be installed by a licensed plumber in accordance with AS/NZ 3500.1
Please read the following instructions as failure to install correctly can
cause the system to operate incorrectly. This could void the warranty
and result in a return call charge by the plumber/installer.
www.bromic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Waterboy Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bromic Heating Waterboy Series

  • Page 1 PLUMBING & GAS Simple mains / rain water changeover device For use with above ground or submersible pumps OIM MANUAL Operation • Installation • Maintenance To be installed by a licensed plumber in accordance with AS/NZ 3500.1 Please read the following instructions as failure to install correctly can cause the system to operate incorrectly.
  • Page 2: Table Of Contents

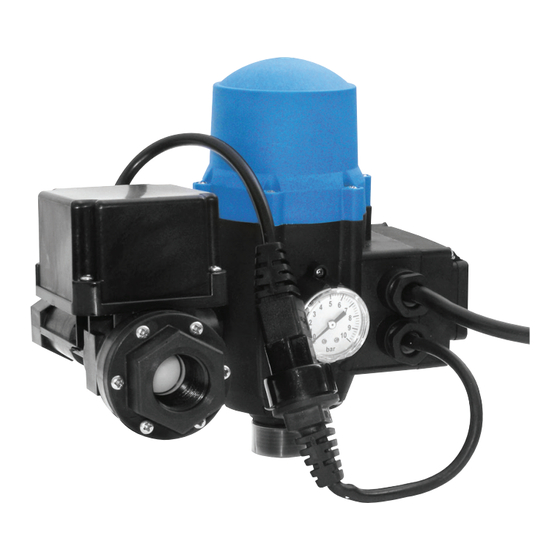

    INTRODUCING THE WATERBOY WIZARD CONTENTS Introducing Wizard BENEFITS & FEATURES: How the Wizard Works 3 Wizard - WB40/60 Installation Congratulations on your purchase of Wizard from the Waterboy range of Operation & Maintenance products. The Wizard is a simple and Troubleshooting effective mains / rain water changeover device for use with above ground...
  • Page 3: How The Wizard Works

    HOW THE WATERBOY WIZARD WORKS Data: Simplifying Rainwater Harvesting: Minimum mains pressure: 1) Using water from the rainwater tank the 200kPa Wizard supplies this to the toilet, washing machine or garden tap. Maximum mains pressure: 1000kPa (Pressure Limiting Valve limits mains pressure 2) When the tank is empty (or in case of to 350KPA must be fitted) pump failure), mains water is automatically...
  • Page 4 ASSEMBLING THE WIZARD CONTROLLER Step 1: Remove contents from packaging. Make sure the items shown are present. OPTIONAL Step 2: Check that the valve train connection has been pre-greased. If not apply tap grease to the O-ring Step 3: Attach the valve train to the pressure controller.
  • Page 5: Installation

    INSTALLATION LOCATION ! The Waterboy Wizard must be located within 3 metres of the tank outlet and with a 240VAC power point within a metre. ! The Pressure Limiting Valve supplied with the unit must be fitted. ! There should also be a stop cock or isolation valve fitted to the tank and on the mains inlet to the Waterboy.
  • Page 6 INSTALLATION Step 5: Connect the mains inlet line to the valve train inlet using a suitable sealant. Step 6: Connect mains outlet line to the valve train outlet using a suitable sealant. Step 7: Install a filter between the tank and tank inlet. This ensures that clean water is supplied to the pump.
  • Page 7 INSTALLATION Step 8: Install isolation valve and pressure limiting valve to the mains inlet line. Step 9: Plug pump lead into controller. Step 10: Connect Wizard controller to 240Vac weather proof power point. Step 11: Prime the pump – see page 8. Step 12: Check the system for leaks.
  • Page 8: Operation & Maintenance

    OPERATION AND MAINTENANCE Priming of Pump OPERATION 1. Fill tank to a level above the draw off point Before you start: 1. Make sure pump is primed (see commissioning procedure Page 4) 2. Waterboy Wizard is designed to handle clean water, do not use the system to supply bore water, dam water, grey water, storm water or recycled water.
  • Page 9 OPERATION AND MAINTENANCE Turning On/Off: After all connections are made and the unit commissioned (as above) the mains water change over can be tested by switching off the power supply and turning on the tap activating the mains water flow. To return the system to run on the tank water supply, turn on the power supply.
  • Page 10: Troubleshooting

    TROUBLESHOOTING FOR SUBMERSIBLE PUMP Complaint Possible solution Check that power is Pump not working available and turned when turned on. on at the power point. Check that there is water in the Pump running tank above the draw line and but cutting out that the tap on the tank is open.
  • Page 11: Warranty

    WARRANTY CONDITIONS Bromic Pty Limited (‘Bromic’) warrants to the Bromic will either undertake the repair or original purchaser (‘the Purchaser’) of products nominate a repair agent authorised by Bromic. supplied by Bromic Plumbing (‘the Goods’) that Bromic’s repair warranty is restricted to the Goods will be free from defects and/or faults normal business hours on Monday to Friday in materials and/or workmanship for Two (2) years...
  • Page 12 WARRANTY CONDITIONS The obligation of Bromic in relation to Carelessness, negligence or use other the warranty, provided for in the previous than that for which the Goods are paragraphs, is not valid in the following cases: designed; Installation does not conform to the Goods not performing correctly as instructions given in the Use and Maintenance a result of Goods being used in an...
  • Page 13 WARRANTY CONDITIONS In addition to the above, all of Bromic’s other general terms and conditions of trade apply, save for those which are inconsistent with the terms of this warranty. These general terms and conditions of trade can be obtained on request from Bromic. In addition to the Warranty extended by Bromic to the Purchaser, the Australian Consumer Law requires that Bromic provide...
  • Page 14: Purchase Record

    PURCHASE RECORD NAME OF PURCHASER ………………………………………………..……………… STREET ADDRESS ………………………………………………..………………..………………………………………………..…………………………………………..……………… ………………………………………………..…………………………………………..……………… SUBURB …………………………..………… STATE ….…… POSTAL …………… INSTALLER’S NAME: …………………………..………….…………..………………… DATE OF PURCHASE: ………………………….……………………..………………… JOB NUMBER: …………………………..…………....…………..………………… www.bromic.com...
  • Page 15 NOTES ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… ………………………………………………..…………………………………………………………..……………………… www.bromic.com...
  • Page 16 PLUMBING & GAS A member of the Bromic Group HEAD OFFICE 10 Phiney Place Ingleburn NSW 2565 Australia T: 1300 276 642 (within Australia) F: 1300 735 115 NZ: 0508 276 642 +61 2 9426 5222 (from overseas) E: plumbing@bromic.com BROMIC.COM 2018-09-11_V 2.1 T 1300 276 642 | WWW.BROMIC.COM | E PLUMBING@BROMIC.COM...
