- Page 1 TUNGSTEN SMART-HEAT™ ELECTRIC WIRELESS DIMMER CONTROLLER BY BROMIC USER MANUAL IMPORTANT READ THIS MANUAL CAREFULLY. SEE INSIDE COVER FOR IMPORTANT INFORMATION ABOUT THIS MANUAL. KEEP INSTRUCTION WITH APPLIANCE FOR FUTURE Version 1.0 REFERENCE. Doc. T744.01_EN (TEMP) TVHET916A07BK...
- Page 2 Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Heating. Manufactured by Teleco Automation s.r.l. - Italy - www.telecoautomation.com...
-
Page 3: Table Of Contents
CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW INSTALLATION & OPERATION TECHNICAL SPECIFICATIONS WIRING DIAGRAM www.bromicheating.com... -
Page 4: Important Notes & Warnings
IMPORTANT NOTES AND WARNINGS WARNING • This appliance must only be used on a 110 - 277 Volt AC Single Phase electricity supply. • Read all instructions before installing or using this heater • This controller is NOT intended to be installed on recreational vehicles and/or boats. -
Page 5: Product Overview

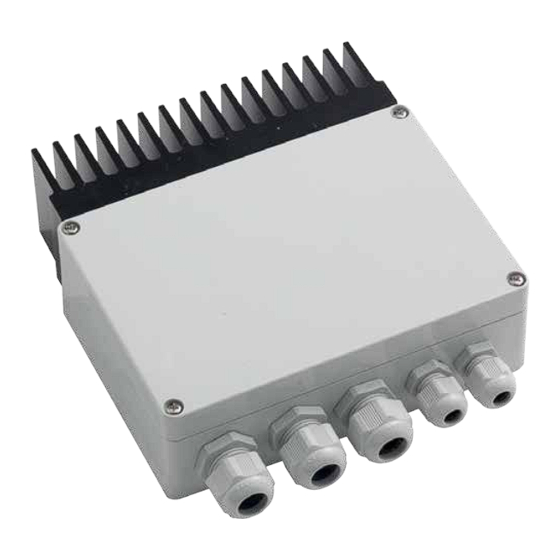

PRODUCT OVERVIEW 1 DESCRIPTION The Wireless Dimmer is suitable for resistive and infrared heaters. The controller allows the power output of the heater to be dimmed down for maximum comfort. The control can be used with 110 - 277VAC supply voltages. 1.1 FEATURES Controls ONE 6800W heater at 277/240VAC (3080W at 110VAC) or Controls TWO 3400W heaters at 277/240 VAC (1540W at 110VAC). -
Page 6: Installation & Operation
OPERATION 2.2.2 Programming of 7-channel remote Press P1 once and hold down. A continuous beep will sound. While holding the P1 button (during the continuous beep), press a push button on the 7-channel remote that is going to be programmed. The programming is confirmed by an intermittent sound. 100% DIM + All buttons are automatically... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS WIRELESS CONTROLLER Power Supply 110/277VAC 50/60Hz (29A. max) 6800W @ 277VAC (25A.) Max Output Power 6800W @ 240VAC (28,5A.) 3080W @ 110VAC (28A.) Fuse Protection 32A (FWC high speed, 10 x 38mm) 916MHz (AUS/US) Reception Frequency 868.3MHz (EU) Operating Temperature Range -20/+30°C Maximum Remote Memorised... -
Page 8: Wiring Diagram
WIRING DIAGRAM ERROR Do not operate in the high voltage area of the electronic board, when it is supplied. SWITCH P1 P2 P3 AREA POWER SUPPLY (LIVE) POWER SUPPLY (NEUTRAL) POWER SUPPLY (GROUND) GROUND (OUTPUT ELEMENT 1) GROUND (OUTPUT ELEMENT 2) OUTPUT ELEMENT 1 (NEUTRAL) OUTPUT ELEMENT 2 (NEUTRAL) OUTPUT ELEMENT 2 (LIVE)
Need help?
Do you have a question about the Smart-Heat BH3130011-2 and is the answer not in the manual?
Questions and answers
BROMIC Dimmer Switch w/ Wireless Remote for Electric Heaters BH3130011-2. The switch is not controlling the heater. The heaters come on when the circuit breaker in turned on. I have opened the box, confirmed the remote is communicating with the switch by observing the light blink when pressing a button. The LED light panel moves to different levels corresponding to the button pushed on the remote. However, the heater stays on at full power. I deleted and reconnected the remote, no change.
Several factors could cause the Bromic Heating Smart-Heat BH3130011-2 dimmer switch with a wireless remote to not control the heater properly:
1. Visible Damage or Tampering – If the controller shows signs of damage, it may not function correctly. Inspect the unit and contact the place of purchase if needed.
2. Incorrect Wiring or Installation – Ensure the controller is installed on a 110-277V AC single-phase power supply and that all wiring follows the proper specifications.
3. Remote Issues – The included 7-channel remote may not be functioning correctly. Check the battery and refer to the remote instruction manual for troubleshooting.
4. Transit Protection Not Removed – If applicable, make sure any transit protection has been removed before use.
5. Environmental Factors – The controller must be placed in a well-ventilated location and mounted on surfaces resistant to high temperatures. It should not be used in bathrooms, laundry areas, or similar locations.
6. Soft-Start Configuration – If the soft-start function is misconfigured, it may affect heater operation. Verify the settings.
7. Power Supply Issues – If the controller has not been used for a long time, ensure the power supply is properly connected and that an all-pole switch with at least 3.5mm contact dimension is in place.
8. Accidental Cable Damage – Ensure that connection cables are properly protected from impacts and are in good condition.
Checking these factors should help diagnose and resolve issues with the dimmer switch controlling the heater.
This answer is automatically generated
