How to Install

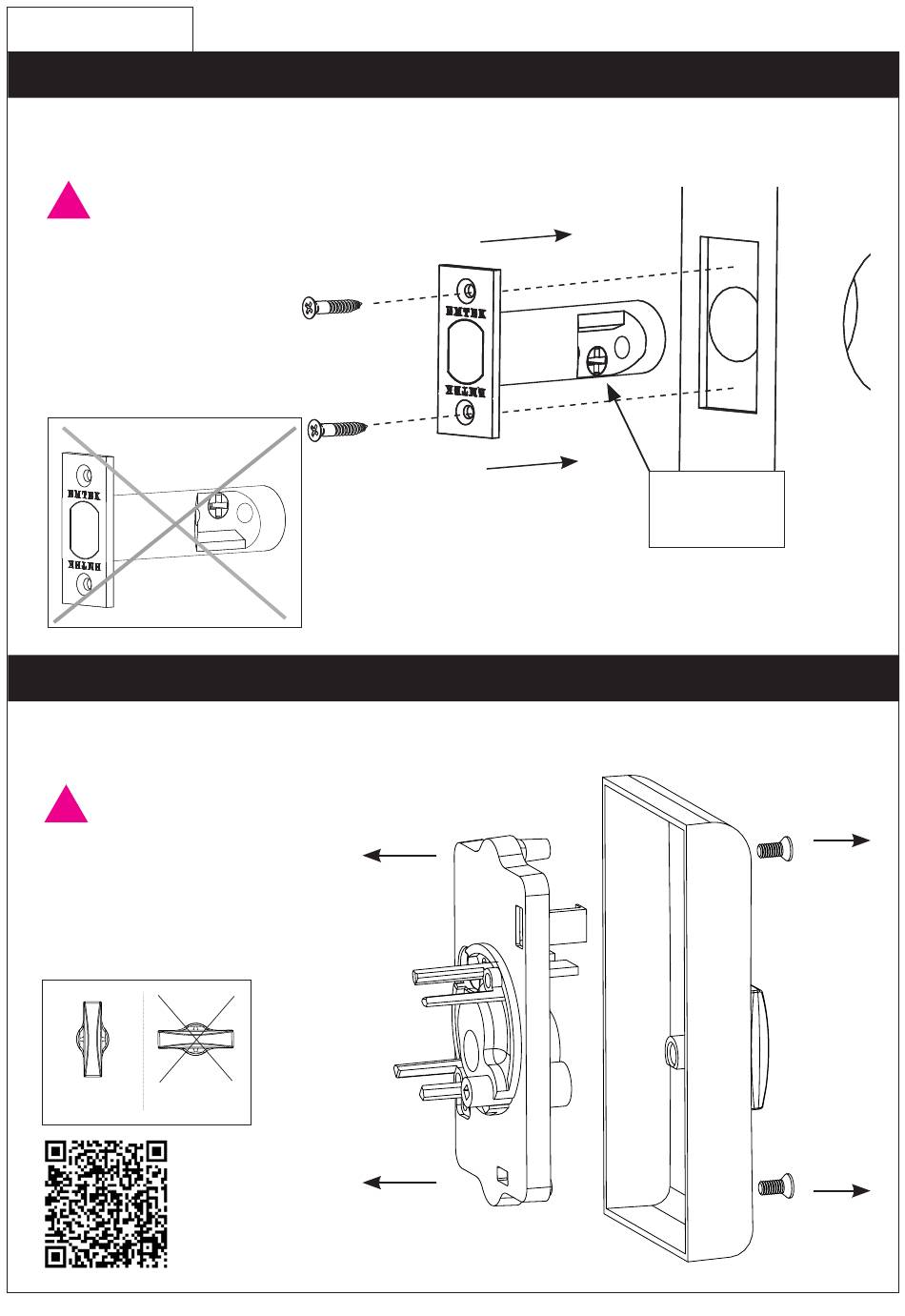

1. Install Latch
Fasten Latch using two #8 x 3/4" Wood Screws (item #6).
!
THE LATCH ASSEMBLY
MUST BE ORIENTED
AS SHOWN AND THE
BOLT MUST BE IN THE
RETRACTED POSITION
FOR INSTALLATION.
2. Remove Screws from Inside Trim Plate
Use a Phillips head screwdriver to remove screws (item #4c) shown below and
detach Inside Trim Plate from the Inside Chassis.
!
REMOVE INSIDE CHASSIS
FROM TRIM PLATE BEFORE
INSTALLING THE OUTSIDE
TRIM. THUMBTURN MUST
BE IN UNLOCKED POSITION.
Unlocked Locked
Scan
this QR
code for
details.
4
Crosshairs
at bottom.
screws
(item #4c)
