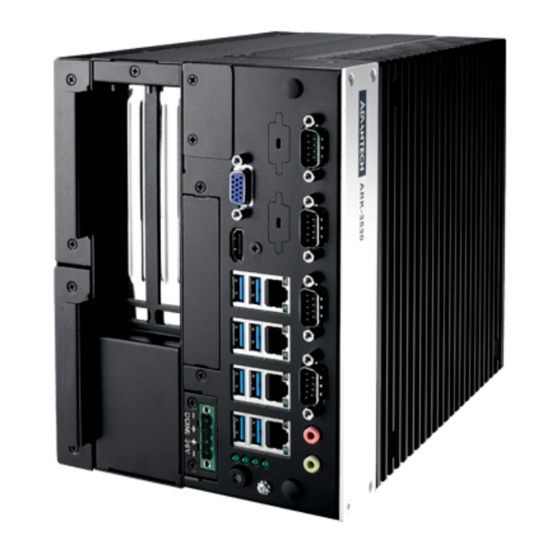

Fanless embedded box pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
ARK-3530
Fanless Embedded Box PC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARK-3530L-00A1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech ARK-3530L-00A1E

Summary of Contents for Advantech ARK-3530L-00A1E

  • Page 1 User Manual ARK-3530 Fanless Embedded Box PC...
  • Page 2 Attention! Please note: This package contains a hard-copy user manual in Chinese for China CCC certifica- tion purposes, and there is an English user manual included as a PDF file on the CD. Please disregard the Chinese hard copy user manual if the product is not to be sold and/or installed in China.
  • Page 3 The documentation and the software included with this product are copyrighted 2018 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 5 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 6 Ordering Information Model Number Description Intel® Xeon® E3 / 6th&7th Gen Core™ i3/i5/i7 LGA1151 ARK-3530L-00A1E Modular Expansion Fanless Box PC Intel® Xeon® E3 / 6th&7th Gen Core™ i3/i5/i7 LGA1151 ARK-3530F-00A1E Modular Expansion Fanless Box PC ARK-3530 Default SKU Option Items...
  • Page 7 Optional 9-36V DC Power Module Part Number Description AMO-P010E 9-36V DC input power module for ARK-3530L AC-to-DC Adapter, DC19V 150W, 0 ~ 40° C 96PSA-A150W19P4-1 (for AMO-P010E/ARK-3530F) AC to DC adapter, DC 24V 220W, -20 ~ 60° C 96PSA-A220W24P4-1 (For AMO-P010E/ARK-3530F) 1702002600 Power cable 3-pin 183cm, USA type 1702002605...
  • Page 8 Safety Instructions Please read these safety instructions carefully. Please keep this User’s Manual for later reference. Please disconnect this equipment from AC outlet before cleaning. Use a damp cloth. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for cleaning.
  • Page 9 CAUTION: Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. ATTENTION: Toujours débrancher complètement le cordon d'alimentation de votre châssis lorsque vous travaillez avec le matériel.
  • Page 10 ARK-3530 User Manual...

  • Page 11: Table Of Contents

    Contents Chapter General Introduction ......1 Introduction ....................2 Product Features..................3 1.2.1 General ..................3 1.2.2 Display ..................3 1.2.3 Ethernet ..................3 Chipset ...................... 4 1.3.1 Functional Specification ..............4 1.3.2 SUSI 4.0..................5 Mechanical Specifications................. 6 1.4.1 Dimensions ................... 6 Figure 1.1 ARK-3530 Mechanical Dimension Drawing....
  • Page 12 Figure 2.12VGA Connector ............18 Table 2.8: VGA Connector Pin Assignments ......18 Installation....................19 2.4.1 CPU/Memory Installation ............19 2.4.2 Remove Bottom Cover ............... 19 2.4.3 External HDD/SSD Installation ........... 20 2.4.4 M.2 Module/MiniPCIe Module/Internal SIM Card Slot Installation .. 2.4.5 iDoor Installation .................

  • Page 13: Chapter 1 General Introduction

    Chapter General Introduction This chapter gives background information on ARK-3530 series.

  • Page 14: Introduction

    Built in Intelligent Management Tools - Advantech iManager & WISE-PaaS/RMM Advantech iManager provides a valuable suite of programmable APIs such as multi- level watchdog, hardware monitor, system restore, and other user-friendly interface. iManager is an intelligent self-management cross platform tool that monitors system status for problems and takes action if anything is abnormal.

  • Page 15: Product Features

    1 x iDoor – 2 x PCI + 1 x PCIe x 4 – 1 x M.2 (E key for Wifi)  Software API: Advantech SUSI API and WISE-PaaS/RMM - Remote Device Management technology 1.2.2 Display  Controller: Intel® HD Graphic 630 ...

  • Page 16: Chipset

    Chipset 1.3.1 Functional Specification 1.3.1.1 Processor Processor Supports Intel 6th/7th Gen LGA1151 processor (up to 65W): Supports DDR4 2133 MHz up to 32GB Memory 2 x 260-pin SODIMM socket type 1.3.1.2 Chipset  Direct x 12, OpenGL 4.4 Internal Graphics ...

  • Page 17: Susi 4.0

    SUSI 4.0 SUSI API Sequence control Supported 16-bit programmable DIO Watchdog timer Multi-level WDT (set by Advantech iManager) Programmable 1-255 sec / min Hardware monitor CPU Temperature / input Current / input Voltage System information Running HR / Boot record...

  • Page 18: Mechanical Specifications

    Mechanical Specifications 1.4.1 Dimensions 105 [4.13] x 205 [8.07] x 230 [9.06] for ARK-3530L 156.5 [6.16] x 205 [8.07] x 230 [9.06] for ARK-3530F 239.90 ARK-3530 User Manual...

  • Page 19: Weight

    239.90 156.10 Figure 1.1 ARK-3530 Mechanical Dimension Drawing 1.4.2 Weight 5.87 kg (12.94 lb) Power Requirement 1.5.1 System Power  Minimum power input: – 12V (12.5A) – 9-36V (16.6~4.16A) 1.5.2 RTC Battery  Lithium 3 V/210 mAH ARK-3530 User Manual...

  • Page 20: Environment Specification

    Environment Specification 1.6.1 Operating Temperature  25W, 35W, 65W(only 6th Gen) with Industrial Grade SSD: -20~60° C (-4 ~ 140° F), with air flow, speed=0.7 m/sec  With 2.5-inch hard disk: 0 to 40° C (32 ~ 104° F), with air flow, speed=0.7 m/ 1.6.2 Relative Humidity ...

  • Page 21: Chapter 2 Hardware Configuration

    Chapter Hardware Configuration...

  • Page 22: Introduction

    Introduction The following sections show the internal jumpers setting and the external connectors pin assignment for application. Jumpers 2.2.1 Jumper Description You may configure ARK-3530 to match the needs of your application by setting jump- ers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 23: Jumper Locations

    2.2.3 Jumper Locations Figure 2.1 Jumper Layout ARK-3530 User Manual...

  • Page 24: Jumper Settings

    2.2.4 Jumper Settings 2.2.4.1 mSATA/PCIe setting for CN31 (J1) J1 mSATA / PCIe Setting Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP Setting Function (1-2) mSATA (2-3) PCIe (Default) 2.2.4.2 mSATA/PCIe setting for CN32 (J2) mSATA / PCIe Setting Part Number 1653003101 Footprint...
  • Page 25 2.2.4.4 CMOS reset (J4) CMOS reset Part Number 1 653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP Setting Function (1-2) Normal Operation (Default) (2-3) CMOS reset 2.2.4.5 COM1 Power setting (J5) J5 PH_3x2V_S2.00mm Part Number 1653003201 Footprint HD_3x2P_79_D Description Setting Function...

  • Page 26: Connectors

    Connectors 2.3.1 ARK-3530 External I/O Locations ARK-3530L Front IO Panel Figure 2.2 ARK-3530L Front IO connector drawing ARK-3530F Front IO Panel Figure 2.3 ARK-3530F Front IO connector drawing ARK-3530 User Manual...

  • Page 27: Ark-3530 Front I/O Connectors

    2.3.2 ARK-3530 Front I/O Connectors ARK-3530 provides two USB2.0 interface connectors, which give complete Plug & Play and hot swapping for up to 127 external devices. The USB interface complies with USB UHCI, Rev. 2.0 compliant. The USB interface can be disabled in the system BIOS setup.

  • Page 28: Figure 2.6 Ethernet Connector

    Note! NC represents “No Connection”. 2.3.2.2 Ethernet Connector (LAN) ARK-3530 is equipped with up to 4 Ethernet controllers that are fully compliant with IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards. The Ethernet port provides a standard RJ-45 jack connector with LED indicators on the front side to show its Active/Link status (Green LED) and Speed status (Yellow LED).

  • Page 29: Figure 2.8 Audio Connector

    2.3.2.4 Audio Connector ARK-3530 offers two stereo audio ports: Line_Out, Mic_In. Figure 2.8 Audio Connector Table 2.5: Audio Connector Pin Assignments Audio Signal Name Line out Mic in 2.3.2.5 LED Indicators There are four LEDs on the front panel that indicate system status: HDD LED is for HDD status.

  • Page 30: Figure 2.11Usb3.0 Connector

    2.3.2.7 USB3.0 Connector ARK-3530 supports 8 USB 3.0 interfaces. The USB interfaces complies with USB UHCI, Rev. 3.0 standards. Please refer to Table 2.9 for its pin assignments. USB 3.0 connectors contain legacy pins to interface to USB 2.0 devices, and a new set of pins for USB 3.0 connectivity.

  • Page 31: Installation

    Installation 2.4.1 CPU/Memory Installation Unscrew the 4 screws on the top cover, and remove the top cover. Install the CPU (LGA1151) and memory into the system. Replace the top cover. 2.4.2 Remove Bottom Cover Unscrew six screws on the bottom cover. ARK-3530 User Manual...

  • Page 32: External Hdd/Ssd Installation

    2.4.3 External HDD/SSD Installation Unscrew 2 x screws on hard drive bay Install HDD/SSD with 4 x screws on the HDD/SSD tray. Push back the hard drive bay into the system and use the same screws to affix. 2.4.4 M.2 Module/MiniPCIe Module/Internal SIM Card Slot Installation Remove the bottom cover.

  • Page 33: Idoor Installation

    2.4.5 iDoor Installation Remove the bottom cover. Remove the screws on iDoor cover Install the iDoor module onto the miniPCIe slot (CN31_1, CN32_1) and iDoor frame. Replace the bottom cover and fix in place with screws. 2.4.6 Optional Module for Third Display Installation Remove the bottom cover.

  • Page 34: Replace Cpu Thermal Grease Pad

    2.4.7 Replace CPU thermal Grease Pad Always use the grease pad provided by Advantech. The P/N of the grease pad is: Part Number Description 1990032969N000 Thermal-Pad 30x30x0.2 K=8 TP HW PTM-7988 ARK-3530 To ensure the best thermal performance, it is recommended to replace the thermal grease for CPU thermal pole each time the top cover is opened.

  • Page 35: Bios Settings

    Chapter BIOS Settings...

  • Page 36: Introduction

    Introduction With the AMIBIOS Setup program, users can modify BIOS settings and control vari- ous system features. This chapter describes the basic navigation of the ARK-3530 BIOS setup screens. AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.

  • Page 37: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU‘s system status is valid.

  • Page 38: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the ARK-3530 setup screen to enter the Advanced BIOS Setup screen. Users can select any item in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. Users can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 39 3.2.2.1 CPU Configuration  Hyper Threading Technology This item allows users to enable or disable Intel® Hyper Threading technology.  Active Processor Cores This item allows users to set how many processor cores should be active.  Intel Virtualization Technology ARK-3530 User Manual...
  • Page 40 This item allows users to enable or disable the intel virtualization technology. Hardware Prefetcher  This item allows users to enable or disable the hardware prefetcher feature.  Adjacent Cache Line Prefetch This item allows users to enable or disable the adjacent cache line prefetch fea- ture.
  • Page 41  RC6 Render Standby Check to enable render standby support. 3.2.2.3 PCH-FW Configuration ARK-3530 User Manual...
  • Page 42  ME State (Intel AMT) Enable/Disable Intel® Active Management Technology BIOS Extension. – BIOS Hotkey Pressed Enable/Disable BIOS hotkey press. – MEBx Selection Screen Enable/Disable MEBx selection screen. – Hide Un-Configure ME Configuration Prompt Hide Un-Configure ME without password Configuration Prompt. –...
  • Page 43 3.2.2.4 Trusted Computing Security Device Support  Enables or Disables BIOS support for security device. OS will not show Security Device. TCG EFI protocol and INT1A interface will not be available. ARK-3530 User Manual...
  • Page 44 3.2.2.5 ACPI Settings  Enable ACPI Auto Configuration Enable or disable BIOS ACPI auto configuration.  Enable Hibernation Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ARK-3530 User Manual...
  • Page 45  ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.  Lock Legacy Resources Enables or Disables Lock of Legacy Resources.  S3 Video Repost Enable or Disable S3 Video Repost. 3.2.2.6 Super IO Configuration ARK-3530 User Manual...
  • Page 46  Serial Port 1 Configuration Set Parameters of Serial Port 1. Serial Port 2 Configuration  Set Parameters of Serial Port 2.  Serial Port 3 Configuration Set Parameters of Serial Port 3.  Serial Port 4 Configuration Set Parameters of Serial Port 4. ...
  • Page 47 3.2.2.7 Embedded Controller Configuration  EC Hardware Monitor This page display all information about system Temperature/Voltage/Current.  Power Saving Mode This item allows users to set the board’s power saving mode when off.  Watch Dog Timer (PreBoot) Enable or Disable Watch Dog Timer function (Starts from power on, stops before booting to OS) ARK-3530 User Manual...
  • Page 48  Watch Dog Timer Enable or Disable Watch Dog Timer function (Starts before OS boots). 3.2.2.8 S5 RTC Wake Settings Wake system from S5  Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr:min:sec specified. ARK-3530 User Manual...
  • Page 49 3.2.2.9 Serial Port Console Redirection  Console Redirection This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS).  Console Redirection Setting This item allows users to configure console redirection detail settings. ARK-3530 User Manual...
  • Page 50 3.2.2.10 Intel TXT Information  Intel TXT Information Display Intel TXT information. ARK-3530 User Manual...
  • Page 51 3.2.2.11 USB Configuration  Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.  XHCI Hand-off ARK-3530 User Manual...
  • Page 52 This is a workaround for OS without XHCI hand-off support. The XHCI owner- ship change should be claimed by XHCI driver.  USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support.  Port 60/64 Emulation Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OS.
  • Page 53 Network Stack  Enable/Disable UEFI Network Stack. 3.2.2.13 CSM Configuration ARK-3530 User Manual...
  • Page 54  CSM Support Enable/Disable CSM Support. Gate A20 Active  This item is useful when RT code is executed above 1MB. When this is set as "UPON RQUEST", GA20 can be disabled using BIOS services. When it's set as "Always", it does not allow disabling GA20. ...
  • Page 55 3.2.2.14 NVMe Configuration  NVMe Device Options Settings ARK-3530 User Manual...

  • Page 56: Chipset Configuration

    3.2.3 Chipset Configuration Select the Chipset tab from the ARK-3530 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 57  Memory Configuration This item allows users to configure memory detail settings. 3.2.3.2 Graphics Configuration ARK-3530 User Manual...
  • Page 58  Primary Display Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.  Internal Graphics Keep IGFX enabled based on the setup options.  GTT Size Selects the GTT Size.  Aperture Size Selects the Aperture Size.
  • Page 59 3.2.3.3 PEG Port Configuration  PEG Link and Speed Information  Enable Root Port Enable or Disable the Root Port.  Max Link Speed Configure PEG Max Speed. ARK-3530 User Manual...
  • Page 60  ASPM Enable PCI Express Active State Power Management settings. 3.2.3.4 PCH-IO Configuration ARK-3530 User Manual...
  • Page 61  PCI Express Configuration PCI Express Configuration Settings.  USB Configuration USB Configuration Settings.  HD Audio Configuration HD Audio Susbsystem Configuration Settings. SB Porting Configuration  SB Porting Configuration Settings.  PCH LAN Controller Enable or Disable onboard NIC. LAN Option ROM ...
  • Page 62  PCI Express Clock Gating Enable or disable PCI Express Clock Gating for each root port.  DMI Link ASPM Control Enable/Disable the control of Active State Power Management on SA side of the DMI Link.  m.2 Setting Set up m.2 related function. ...
  • Page 63  SATA Controller Enable / Disable SATA Device.  SATA Mode Selection Determines how the SATA controller operates.  Port 1 / Port 2 / Port3 / Port4 / mSATA1 / mSATA2 Enable / Disable Serial ATA Port 1 / Port 2 / mSATA port. ARK-3530 User Manual...
  • Page 64 ARK-3530 User Manual...

  • Page 65: Appendix A Watchdog Timer Sample Code

    Appendix Watchdog Timer Sample Code...

  • Page 66: Ec Watchdog Timer Sample Code

    EC Watchdog Timer Sample Code EC_Command_Port = 0x29Ah EC_Data_Port = 0x299h Write EC HW ram = 0x89 Watch dog event flag = 0x57 Watchdog reset delay time = 0x5E Reset event = 0x04 Start WDT function = 0x28 ==================================================== .model small .486p .stack 256 .data...
  • Page 67 ARK-3530 User Manual...
  • Page 68 ARK-3530 User Manual...

  • Page 69: Usb 3.0 Drivers Installation

    Appendix USB 3.0 Drivers Installation Instruction...

  • Page 70: Usb 3.0 Drivers Installation Instruction

    USB 3.0 Drivers Installation Instruction For customers using Windows 7 OS, they need to install drivers to active the USB 3.0 function. Please download driver installation instructions from the Intel website. (https:/ /downloadcenter.intel.com/download/25476/Windows-7-USB-3-0-Creator-Utility) ARK-3530 User Manual...
  • Page 71 ARK-3530 User Manual...
