8.8 CAN-Bus Interface

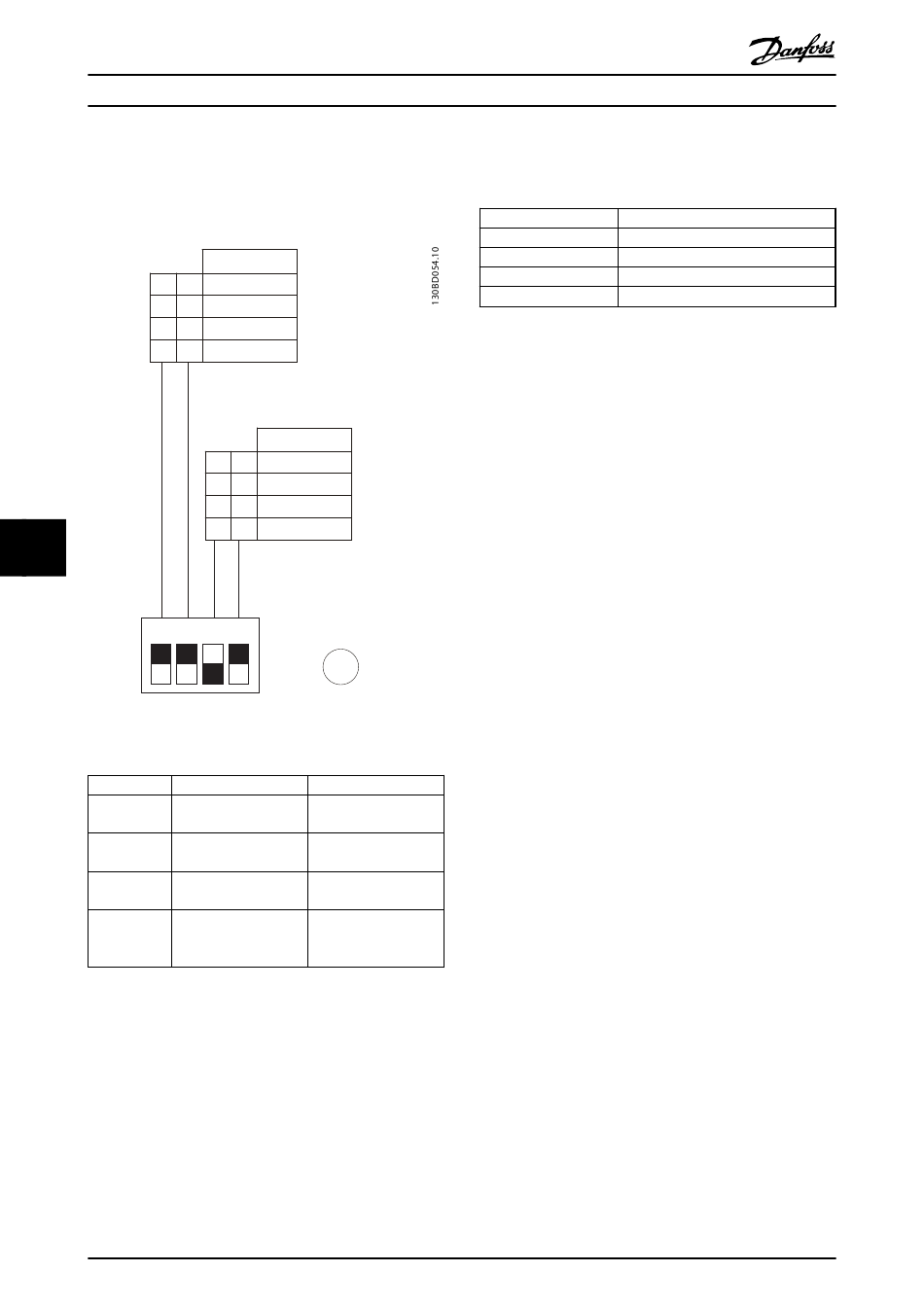

The CAN DIP-switch is located in the underside of the
power supply module.
-
-
on
on
8 8
1
Illustration 8.7 CAN DIP-Switch
Definition
Potential
relation
CAN-Baud
rate
CAN-ID
Protocol
Table 8.7 CAN-Bus Interface Data
24
CAN Node-Id
- 0x78 *)
on
0x79
0x7A
-
on
0x7B
CAN Bit Rate
- - 125 kbit/s
- on
250 kbit/s
on - 500 kbit/s *)
on on
1 Mbit/s
*) = default
2 3 4
CAN-Reset Button
DIP switches
Description Condition
CAN-Bus is insulated Test voltage DC 500 V
CAN against PE
125, 250, 500 (default), Switchable via 2 DIP-
1000 kbit/s switches
0x78 (default), 0x79, Switchable via 2 DIP-
0x7A, 0x7B switches
CANopen (specified by According to CiA 401
CAN in Automation "Generic I/O"
CiA)
MG75H102 - VLT
®
VLT ISD Power Supply Module Operating Instructions

8.9 Mechanical Data

Housing
Dimensions (H x W x D) Approx. 268 x 130 x 205 mm
Weight
Mounting
Connector arrangement On underside
Table 8.8 Mechanical Data
®
is a registered Danfoss trademark
Steel and aluminium for wall mounting
5.5 kg
On rear side
