8.7.3 Signal Connection X3

14-pole Phoenix MSTB 2.5 / 14-GF-5.08 with mating plug
(included) MSTB 2.5 / 14-STF-5.08
1
90 V OK+
2
90 V OK–
3
300 V OK+
4
300 V OK–
5
Error+
6
Error–
7
+12 V in
8
GND in
9
+12 V in
10
GND in
11
+12 V in
12
GND in
13
+12 V out
14
GND out
Internal Auxiliary Supply (12 V)

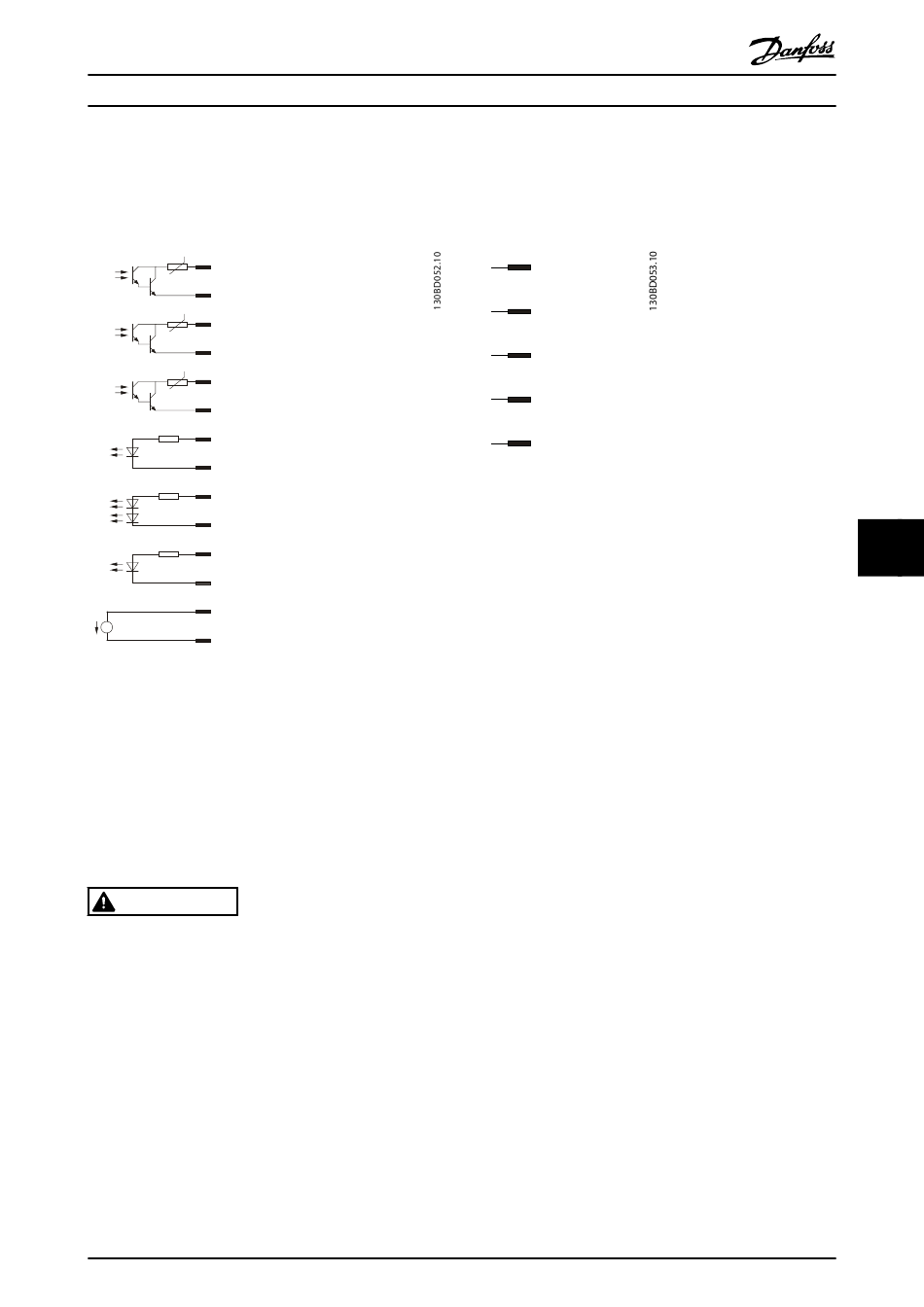

Illustration 8.5 Signal Connection X3
Here is an example of how to wire signal plug X3 in order
to enable the hardware:
•
Pin 13 to 11 to 9 to 7
•
Pin 14 to 12 to 10 to 8
WARNING
HIGH VOLTAGE!
By using the above detailed wiring example the DC 300 V
output voltage is immediately available once the AC 400 V
supply voltage is connected.
Use a relay between pins 9 and 7 to control the output
voltage. The DC 300 V output voltage is enabled when the
relay is closed.
®
VLT ISD Power Supply Module Operating Instructions
Optocoupler active if output
voltage U o reduced (90 V) is OK
(Not valid for ISD 410)
Optocoupler active if output
voltage U o nominal (300 V) is OK
Optocoupler active in case of
any failure / error
Output will be switched on if
10-28 V applied here
Setpoint U o nominal (300 V) if
10-28 V applied here, otherwise
U o reduced (90 V)
Setpoint I o limited nominal (10.2 A)
if 10-28 V applied here, otherwise
I o limited reduced (7.8 A)
This potential-free 12 V auxiliary
voltage can be used to supply the
above mentioned optocoupler
inputs
®
MG75H102 - VLT is a registered Danfoss trademark

8.7.4 CAN-Bus Connection X4

5-pole Phoenix MSTBA 2.5 / 5-G-5.08 with mating plug
(included) MSTB 2.5 / 5-ST-5.08
1
CAN_GND
2
CAN_L
3
(NC)
4
CAN_H
5
max. 20 mA
(CAN +5 V)
external load
Illustration 8.6 CAN-Bus Connection X4
