WIRING INSTRUCTIONS

Wire the venter motor and controls in accordance with the National Electrical Code, manufacturer's
recommendations and/or applicable local codes. UNIT MUST BE GROUNDED. Check ground circuit to make
certain that the unit has been properly grounded. The wiring should be protected by an over current circuit
device rated at 15 amperes. Caution must be taken to ensure that the wiring does not come into contact with
any heat source. All line voltage and safety control circuits between the venter and the appliance MUST be
wired in accordance with the National Electrical Code for Class I wiring or equivalent methods. Route the
venter motor and control wiring with an appropriate wiring method. (Diagrams A through E)

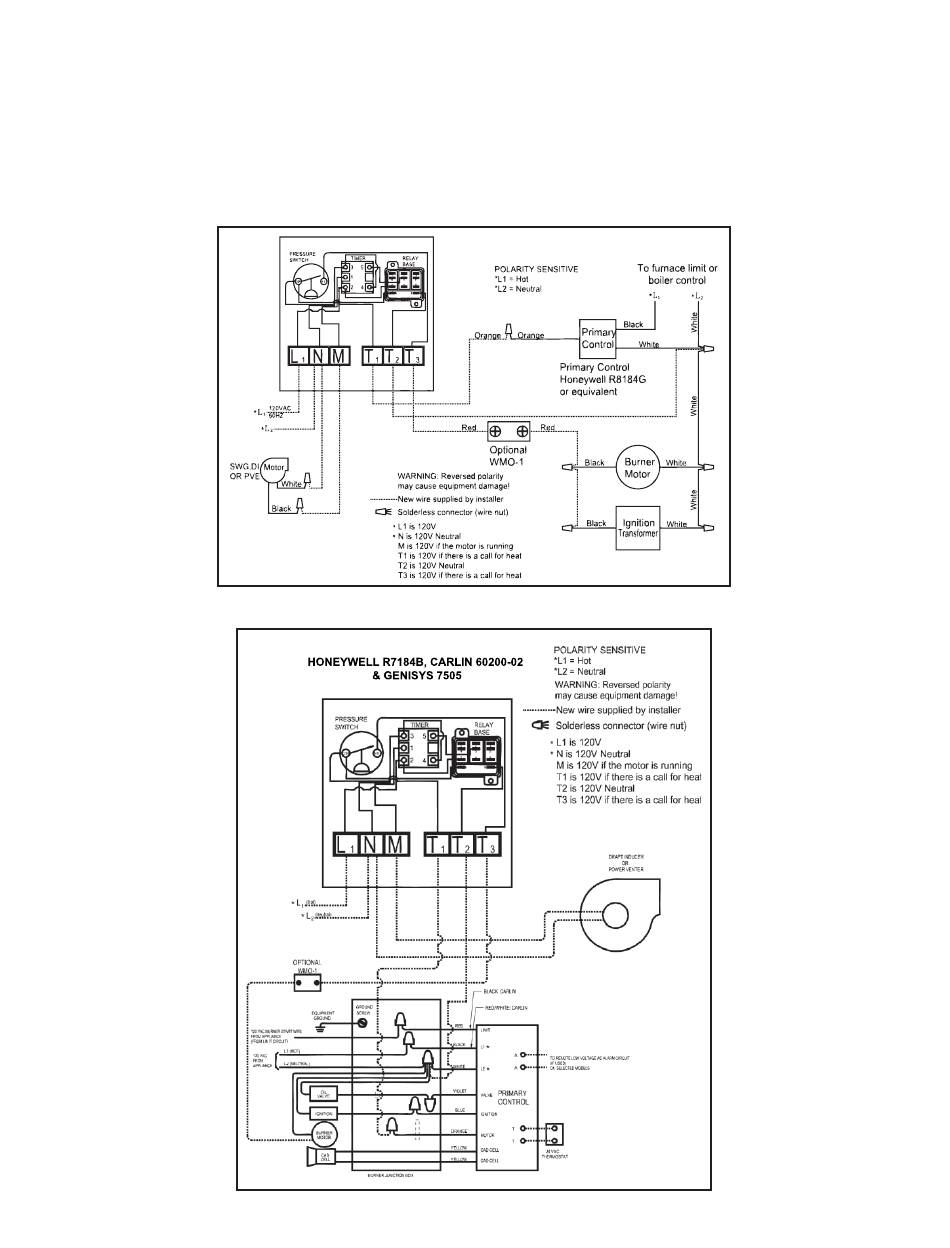

Diagram A - Oil Fired System: Single Unit Wiring
Diagram B - Oil Fired System: Wiring with Electronic Primary
