Designed for use on SWG Series Power Vent Hoods for controlling oil fired heating appliances with Honeywell R8184P

primary control. CK-66 is for single appliance systems. CK-67 is for operating one or more appliance systems.

NOTE: The system requires a Honeywell R8184P primary control and an oil delay or solenoid valve supplied with

equipment or installer supplied

120 VAC SYSTEM CONTROL KIT

Model: CK-66 & 67

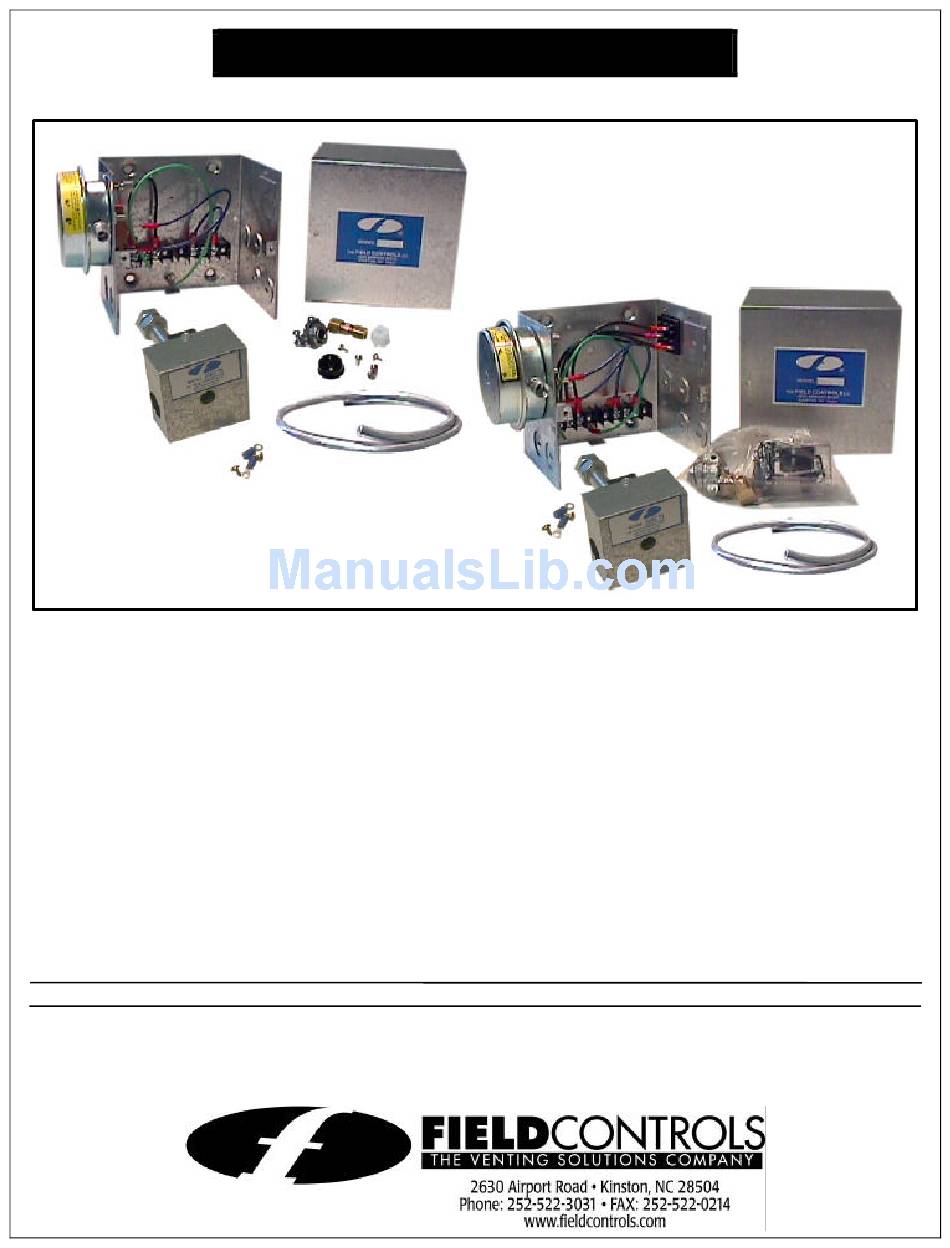

CK-66

TEMS INCLUDED IN KIT

1) Junction box with mounted pressure switch control

1) 2 Ft. Length of 1/4 inch aluminum tubing

1) 1/4 inch tubing connector

1) Flexible conduit connector

1) WMO-1 Secondary Safety Switch

1) 120 VAC Relay (CK-67 only)

THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT

DO NOT DESTROY

CK-67

Table of Contents

Need help?

Do you have a question about the 46304000 and is the answer not in the manual?

Page 1 120 VAC SYSTEM CONTROL KIT Model: CK-66 & 67 CK-66 CK-67 Designed for use on SWG Series Power Vent Hoods for controlling oil fired heating appliances with Honeywell R8184P primary control. CK-66 is for single appliance systems. CK-67 is for operating one or more appliance systems. NOTE: The system requires a Honeywell R8184P primary control and an oil delay or solenoid valve supplied with equipment or installer supplied TEMS INCLUDED IN KIT...
Page 2 MOUNTING JUNCTION BOX The junction box can be mounted at the venter or remotely mounted away from the venter. (See Figure 1 & 2) 1. Remove one of the knockouts from the side of the junction box where the pressure switch is mounted. Install the flexible conduit connector onto the CK-66 &...
Page 3 Diagram A – CK-66 Single Appliance Wiring Diagram B – CK-67 Multiple Appliance Wiring Page 3...
Page 4 3. Vent System: Inspect all vent pipe connections annually for looseness and for evidence of flue gas leakage. Seal or tighten pipe connections if necessary. INSTALLATION INFORMATION MODEL NO.:_____________________________________________________________ INSTALLER'S NAME:______________________________________________________ INSTALLER'S COMPANY:__________________________________________________ INSTALLER'S PHONE NO.:_________________________________________________ DATE OF INSTALLATION: _________________________________________________ P/N 46304000 Rev C 04/01 Page 4...
