Installation Instructions
MODELS:
CLS-AOCH/xl
CP-AOCH/xl
Fiber Optic High Speed Pluggable HDMI Cable
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.kramerAV.com
info@kramerel.com
(Low Smoke Version)
(Plenum Version)
P/N:
2900- 300532
Rev:
3
Advertisement
Table of Contents
Related Manuals for Kramer CLS-AOCH/xl
Summary of Contents for Kramer CLS-AOCH/xl
- Page 1 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.

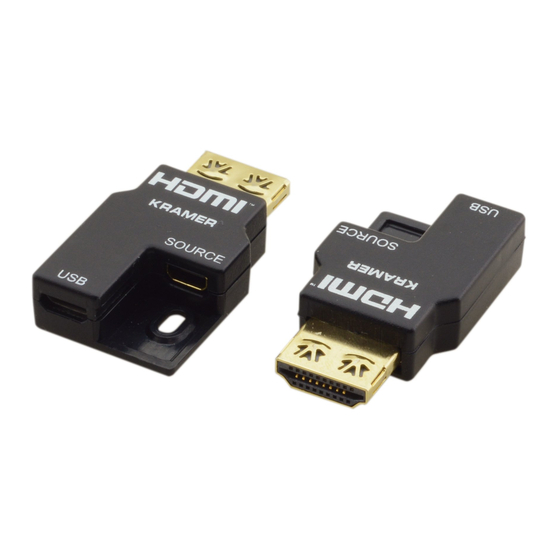

- Page 2 Cable Dimensions The CLS-AOCH/xl / CP-AOCH/xl includes four optical fibers and six AWG 28 wires with compact size HDMI connectors. On the source side, the micro HDMI connector enables smooth pulling of the cable. The SOURCE end connects to the source (for example, a DVD, Blu-ray or game console box) and the...
- Page 3 Even though this cable is designed to be resistant to artificial strengths on the cable, CLS-AOCH/xl / CP-AOCH/xl can be damaged if it is excessively pinched, twisted or kinked when being installed and after being installed. Take care not to bend or twist the cable tightly.
-
Page 4: Troubleshooting
Once the cable installation is complete, plug the SOURCE connector head of the cable into the source devices. Do not plug the SOURCE connector to the display device. Plug the DISPLAY connector head of the cable into the display devices. Do not plug the DISPLAY connector to the source device.
