3 - XY Transport Ribbon Cable Replacement Procedure

3.2

Remove / Re-install the XY Transport Ribbon Cable

This section provides information for replacing just the XY transport ribbon cable, which occasionally

must be replaced without replacing the entire module. For instructions on removing and re-installing the

entire XY transport module, see 99875607 ExpressCard 2000 Hardware Service Manual or

33070932 ExpressCard 2000 XY Transport Module Replacement Procedure.

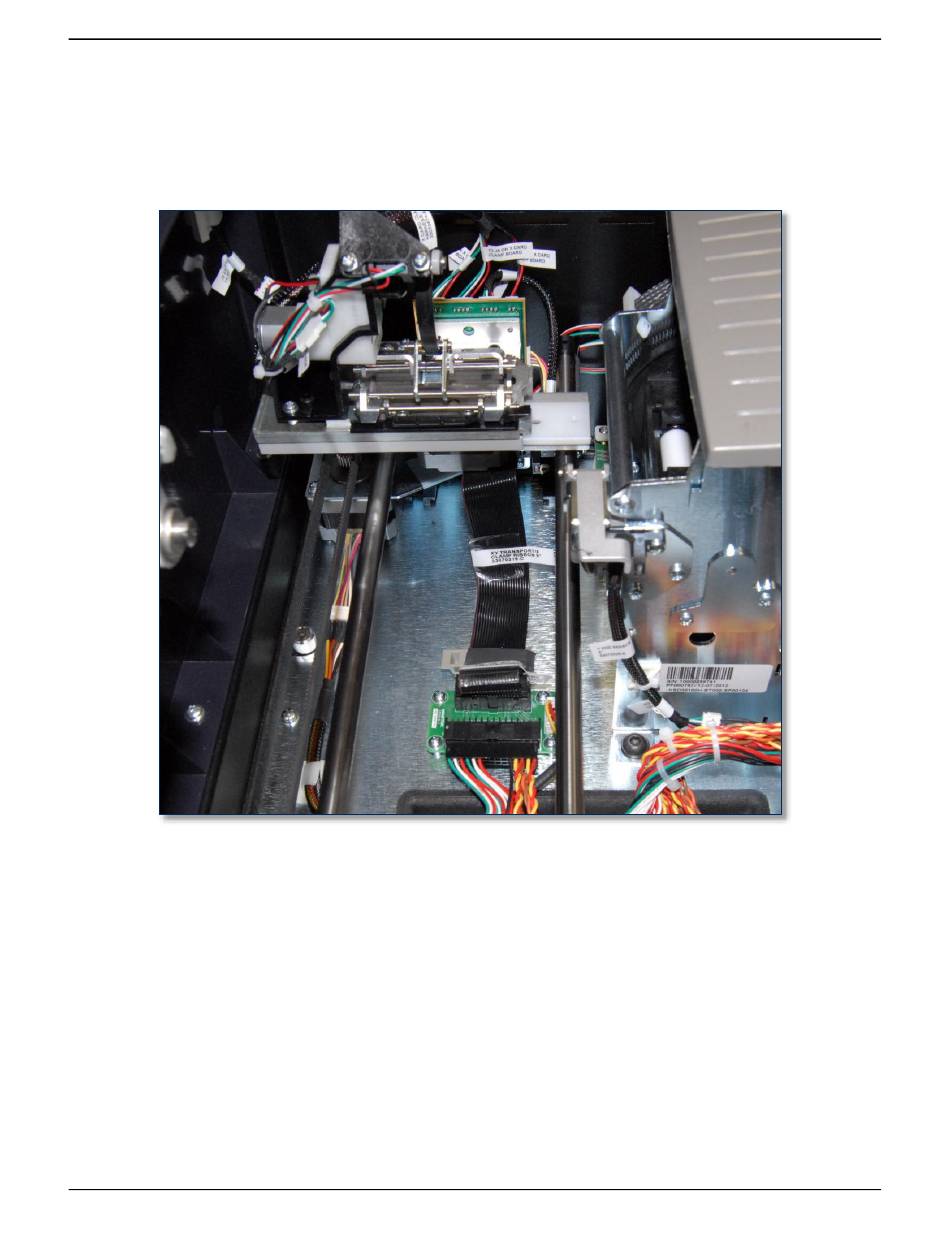

Figure 3-1 - XY Transport Showing Ribbon Cable (FRONT VIEW)

To remove the XY transport module's ribbon cable, follow these steps:

1) Open the top access door (see 99875607 ExpressCard 2000 Hardware Service Manual).

2) Move the XY transport to the front of the device to expose its cable and its connection to the circuit

board ("breakout board") on the base plate of the device (see Figure 3-2 and see 99875607

ExpressCard 2000 Hardware Service Manual for details).
