3 - XY Transport Ribbon Cable Replacement Procedure
To re-install the XY transport ribbon cable, follow these steps:
1) Locate the end of the cable labeled TO J6 XY TRANSPORT BOARD and connect it to the
breakout board on the top deck plate, with the cable coming off the board toward the front of the
device. Press down to make sure the connection is solid.

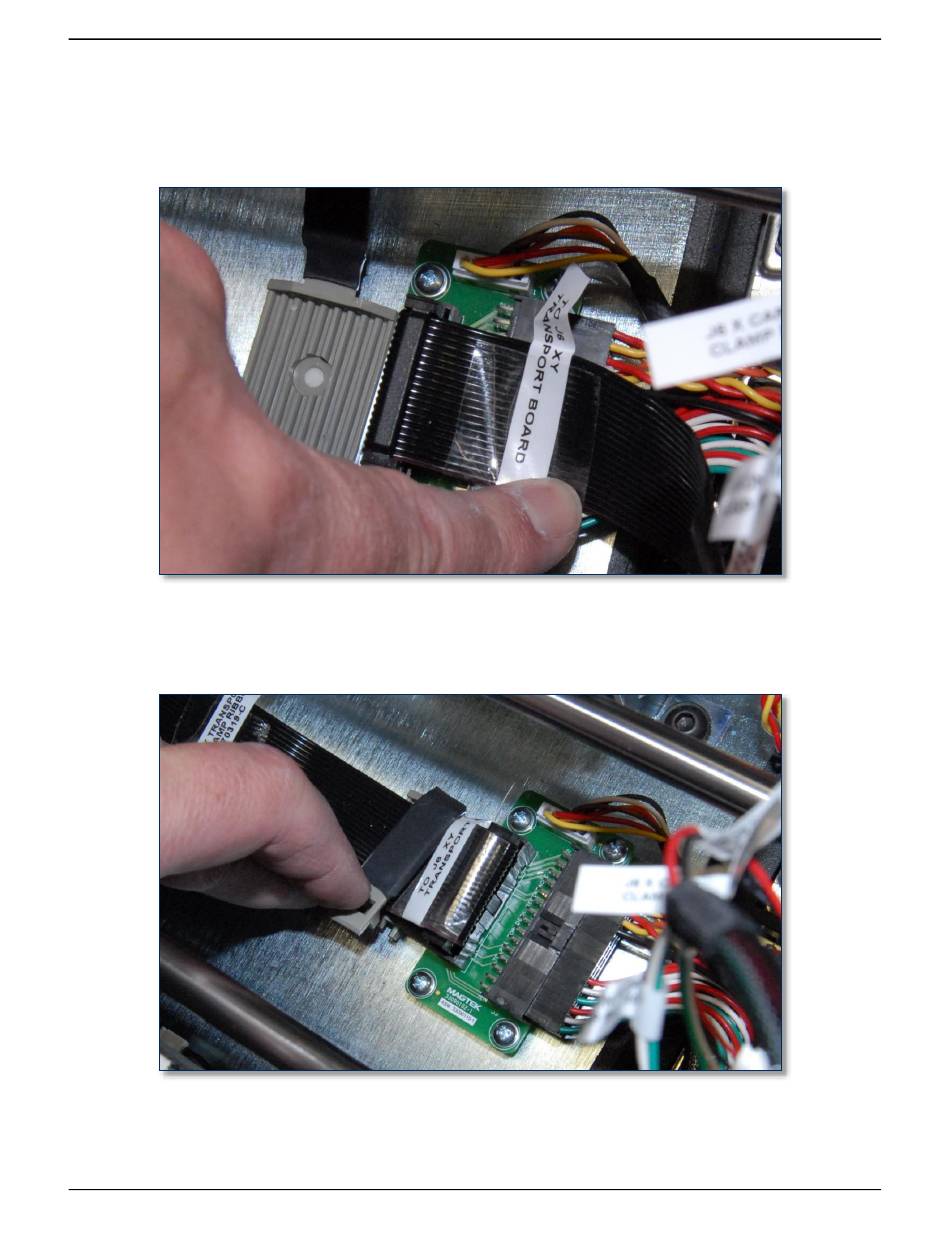

Figure 3-4 - Breakout Board Connection of XY Transport Ribbon Cable (TOP VIEW FROM LEFT)
2) Route the cable through the clip that secures it to the top deck plate, close the clip, and press down
until you feel it click in place (see Figure 3-5).
Figure 3-5 - Locking XY Transport Ribbon Cable In Place (TOP VIEW FROM LEFT)
3) Make sure the loose end of the cable says TO J2 X CLAMP BOARD and is oriented as shown in
Figure 3-6.
