3 - XY Transport Ribbon Cable Replacement Procedure

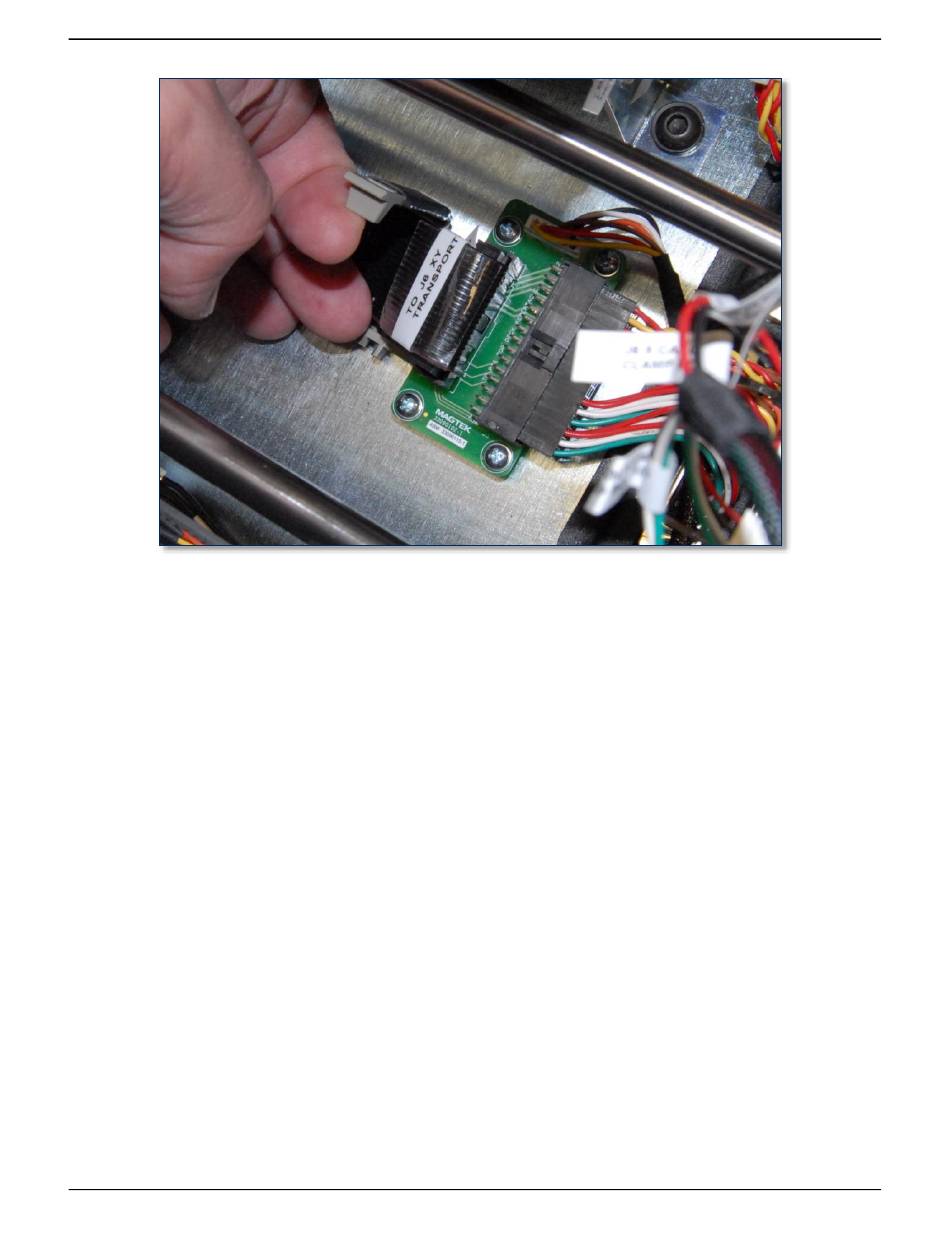

5) Disconnect the ribbon cable from the breakout board on the top deck plate, and set the cable aside.
6) If there is adhesive on any of the connectors, peel or gently scrape it off and discard it.
ExpressCard 2000| Instant Issuance Card Personalization System | XY Transport Ribbon Cable Replacement Procedure
Page 10
