3 - XY Transport Ribbon Cable Replacement Procedure

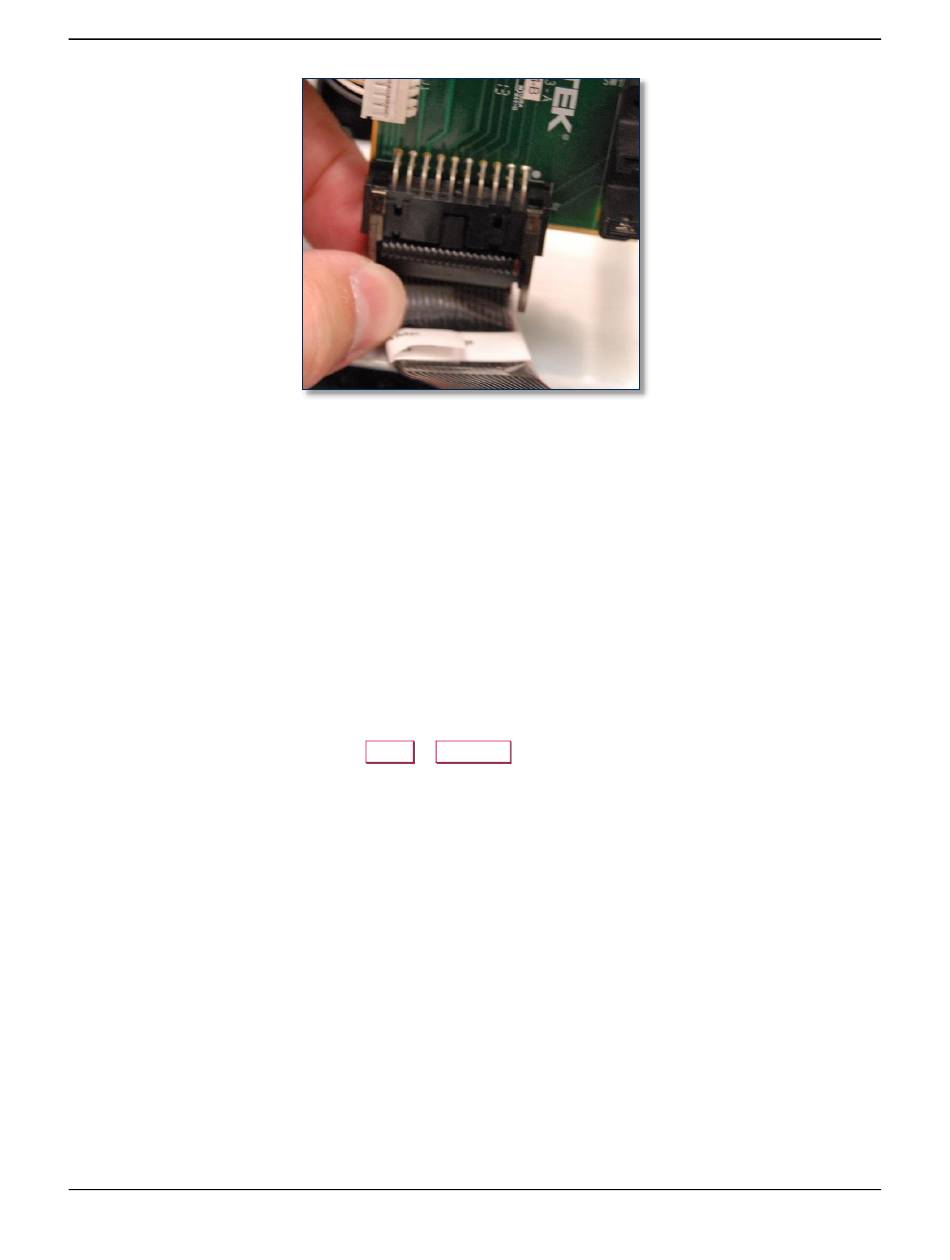

6) Move the XY transport to the rear of the device (see 99875607 ExpressCard 2000 Hardware
Service Manual) and inspect it to make sure it looks like Figure 3-1.
7) Use the belt to push the XY Transport back and forth across the full length of the rails to make sure
the ribbon cable moves as it should:
a) The ribbon cable should wind and unwind in a straight line; it should not twist, bend diagonally,
or move to the side.
b) The ribbon cable should not contact any objects in its path.
c) If the ribbon cable touches other parts or bends incorrectly, re-check its connections and
orientation according to the installation steps, then re-test.
8) Complete any other service that requires the device to be powered off and open.
9) Close the top access door.
10) Re-attach the power cable, network cable, and any security hardware.
11) Power up the device.
12) From the touchscreen, navigate to
functions properly and the sample looks correct.
ExpressCard 2000| Instant Issuance Card Personalization System | XY Transport Ribbon Cable Replacement Procedure
Page 13
Menu > Samples , create a sample card, and make sure the device
