Minimum Framing Requirements - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

remote inline installation
EN
8.2

minimum framing requirements

note:
For optimal performance, we recommend installing DHC™ Plus within the top 12" (30.5cm) of the enclosure.
The DHC™ Plus must be mounted above the appliance.
A bulkhead may need to be constructed to house the venting and blower housing assembly with appropriate
blower access panel. Always maintain clearance to combustibles.

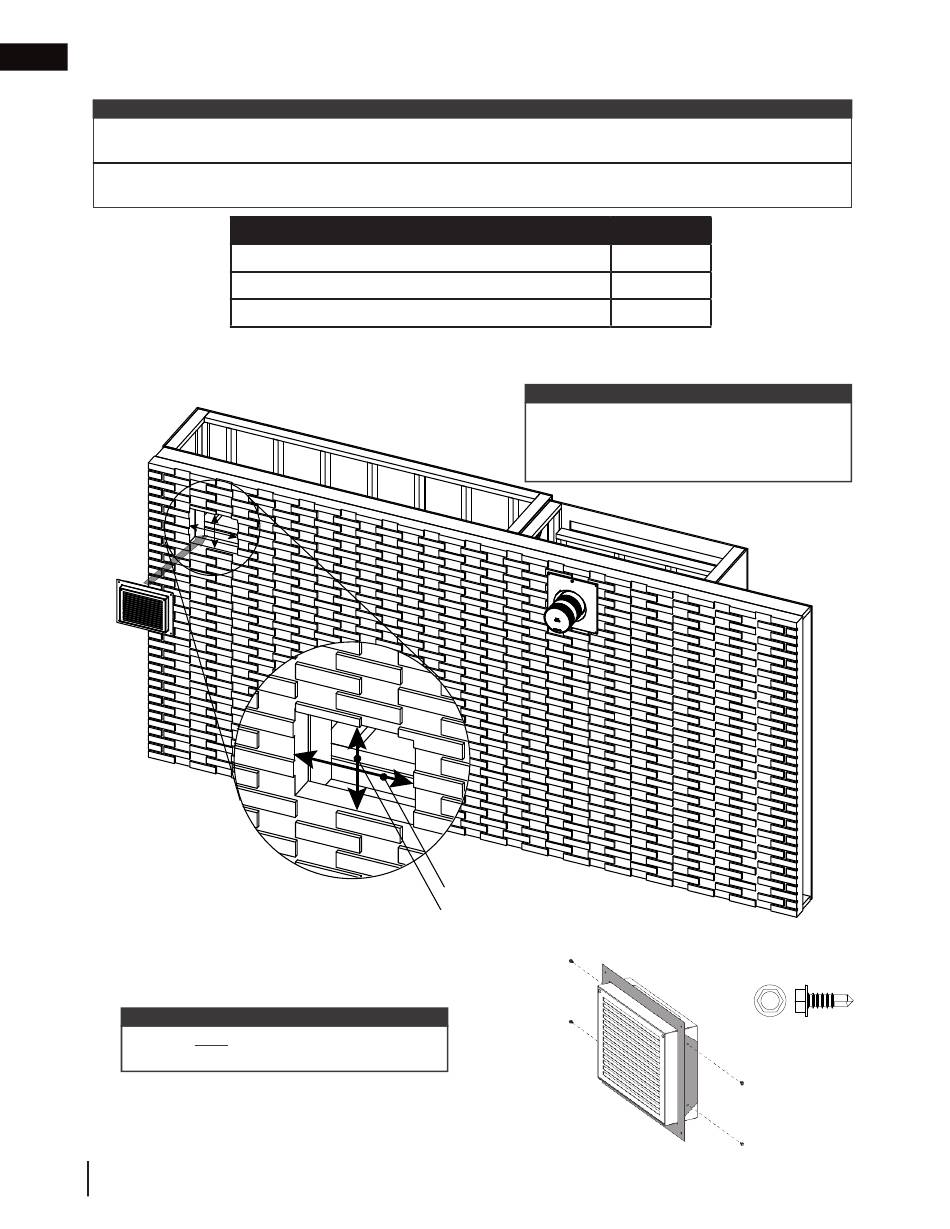

1. Determine the desired location for the hot air exhaust assembly on the exterior wall and frame a 14 1/2"
(36.8cm) wide by 11 3/8" (28.9cm) high opening (Fig. 1).
Fig. 1
2. Fasten the wall flashing onto the hot air exhaust assembly using
4 screws (supplied) (Fig. 2).
note:
Ensure to NOT install the wall flashing too far
forward or the grill could be damaged.
22
W415-1789 / C / 01.29.19
Minimum Clearance to Combustibles
DHCP-BK
DHCP-HK
Vent pipe, collars, firestops, etc.
note:
It may be necessary to shim the blower
housing in the rough opening to provide a
secure fit. If the blower is not secured properly,
excessive noise and vibration may result.
14 1/2" (36.8cm) min.
11 3/8" (28.9cm)
Clearance
0"
0"
1" (25mm)
Interior
Interior
Exterior
Exterior
x 4
Fig. 2
