Protruding - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

mounting options
EN
6.2

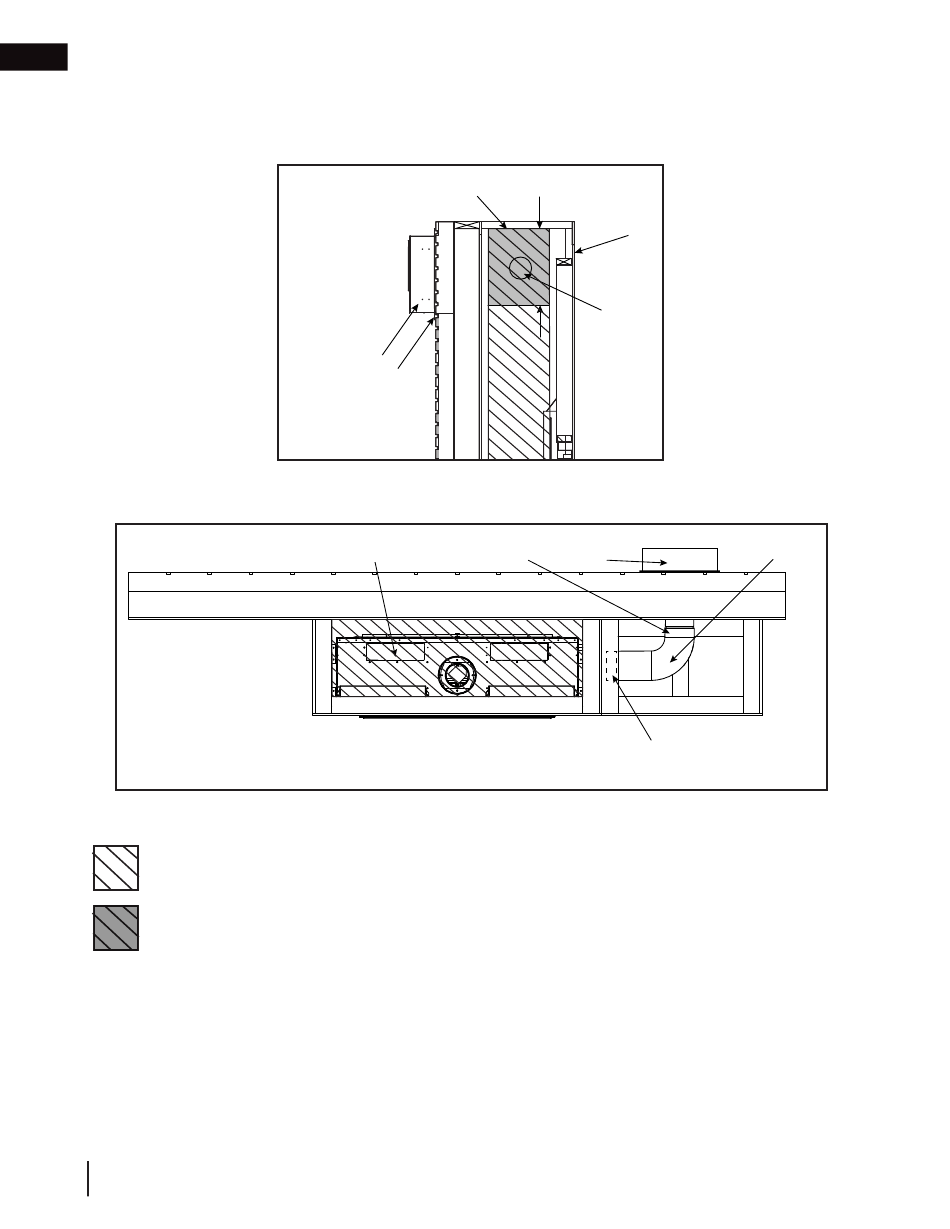

protruding

In this mounting option, the wall flashing is flush with finished exterior wall but the exterior housing assembly is
protruding from the finished exterior wall. A
framed into the exterior wall
Exterior
Interior
(Remote Exterior Installation illustrated. Some components may not apply to your unique installation.)
No materials of any type permitted in this area with the exception of an approved appliance vent system
or the DHC™ Plus system.
Recommended DHC™ Plus collar plate assembly installation zone (12" [30.5cm]).
18
W415-1789 / C / 01.29.19
14 1/2" (36.8cm) by 17 1/4" (44cm) rectangular opening must be
(see "minimum framing requirements" section for details).
Top of
Enclosure
Exterior
Exterior Housing
Asssembly
Wall Flashing
Left Side Profile View
(Remote Exterior Installation illustrated. Some components may not apply
to your unique installation.)
Appliance
(LVX38 Illustrated)
Top Side View
12"
(30.5cm)
Air Outlet
Opening
Interior
Ø 6" (152mm)
Hole &
Installed
Collar Plate
Assembly
Air Damper Exterior Housing
Assembly Assembly
Installed 6" Collar
Plate Assembly
6' Rigid
Steel Venting
