8.1

remote inline installation overview

! WARNING
• Minimum clearance to combustibles must be maintained or a serious fire hazard could result.
• DO NOT cover or place any items in the Dynamic Heat Control™ air outlet opening. Failure to comply with
these instructions will create a fire hazard.
• DHC™ Plus CANNOT be mounted directly above or below the appliance vent terminal as this will
cause the system to fail. It MUST be mounted to the left or right of the appliance vent terminal.
• For optimal performance, we recommend installing DHC™ Plus within the top 12" (30.5cm) of the enclosure.
However, it MUST be installed above the appliance.
• The minimum height requirement above the appliance will vary depending on the appliance size. See "minimum
venting requirements" section of your appliance manual for details.

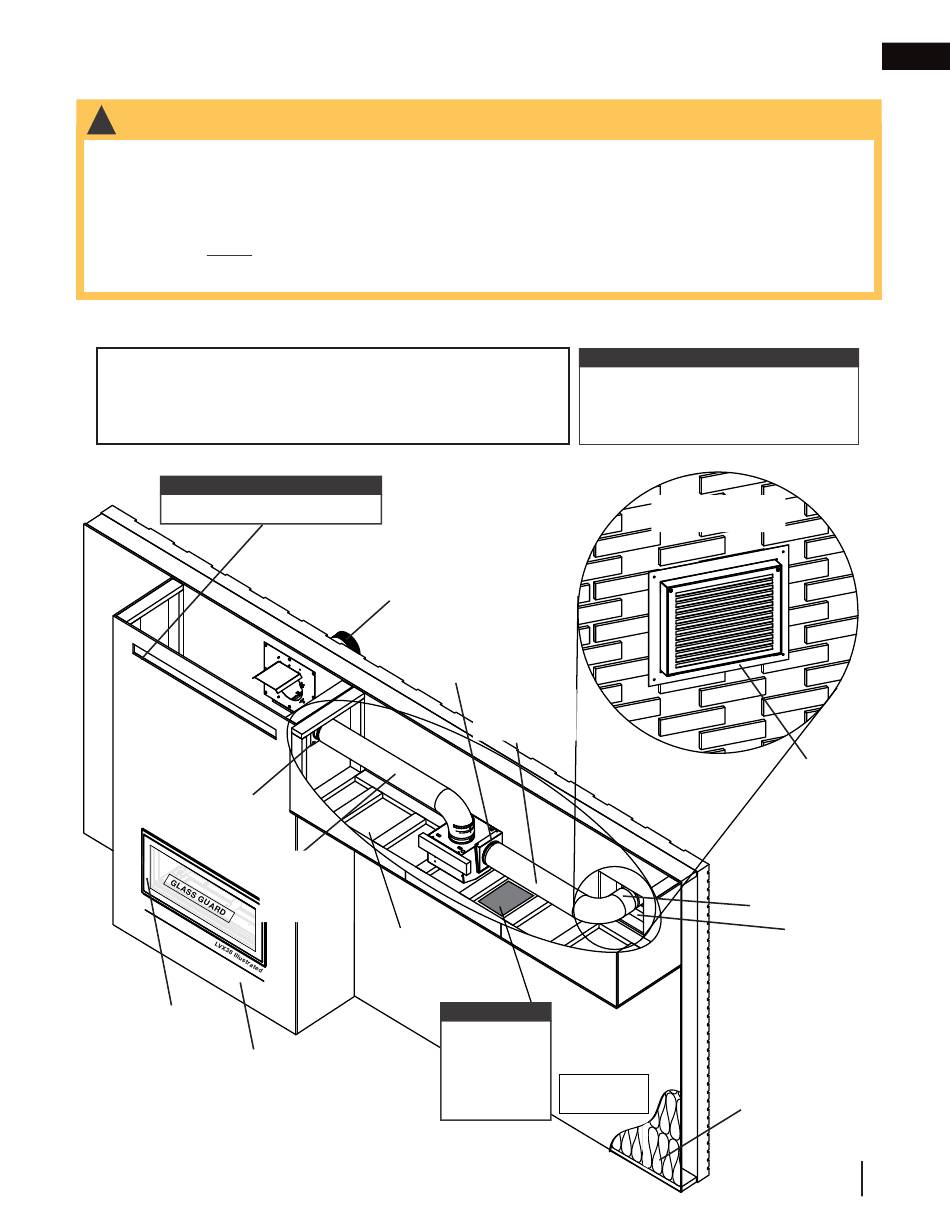

DHC™ Plus remote inline installation can be installed inline anywhere between the appliance enclosure and the
hot air exhaust assembly with a total vent length up to 60' (18.2m).
Required:
•
• DHCP-BK
• DHCP-HK •
note:
MUST have air outlet opening.
Collar Plate
Assembly
Appliance
Enclosure
Venting, 6" rigid steel (not supplied)
Duct, steel 6" (not supplied)
Appliance Vent
Terminal (if
applicable)
6" Collar
Connector
Assembly
6" Steel
Duct
(Not
Supplied)
Inside View of
Bulkhead (Some
Framing and
Finishing Hidden
for Clarity)
MUST have
access panel
for service or
maintenance of
blower.

8.0 remote inline installation

note:
Diagram is for illustrative purposes
only. Installation must comply with all
electrical and local codes.
6" Rigid Steel
Venting (Not
Supplied)
note:
Interior
Maintain
distance to
combustibles.
View of Opposite
Exterior Wall
Wall
Flashing
Air Damper
Assembly
Hot Air Exhaust
Assembly
Exterior
Insulation
