FOR EXTERIOR AND REMOTE EXTERIOR INSTALLATIONS ONLY
! WARNING
• Minimum clearance to combustibles must be maintained or a serious fire hazard could result.
DO NOT cover or place any items in the Dynamic Heat Control™ air outlet opening. Failure to comply with
•
these instructions will create a fire hazard.
• DHC™ Plus CANNOT be mounted directly above or below the appliance vent terminal as this will
cause the system to fail. It MUST be mounted to the left or right of the appliance vent terminal.
• For optimal performance, we recommend installing DHC™ Plus within the top 12" (30.5cm) of the enclosure.
However, it MUST be installed above the appliance.
• The minimum height requirement above the appliance will vary depending on the appliance size. See "minimum
venting requirements" section of your appliance manual for details.
note:
Consider blower location carefully as the air flow sound from the blower is more apparent the closer it is to the
appliance. See "sound considerations" section for details.
6.1

flush

In this mounting option, the wall flashing and exterior housing assembly are flush with the finished exterior wall.
A 14 1/2" (36.8cm) by 17 1/4" (44cm) rectangular opening must be framed into the exterior wall
framing requirements" section for details).
Enclosure
Exterior
Exterior Housing
Asssembly
Wall Flashing
Ø 6" (152mm)
Hole & Installed Collar
Plate Assembly

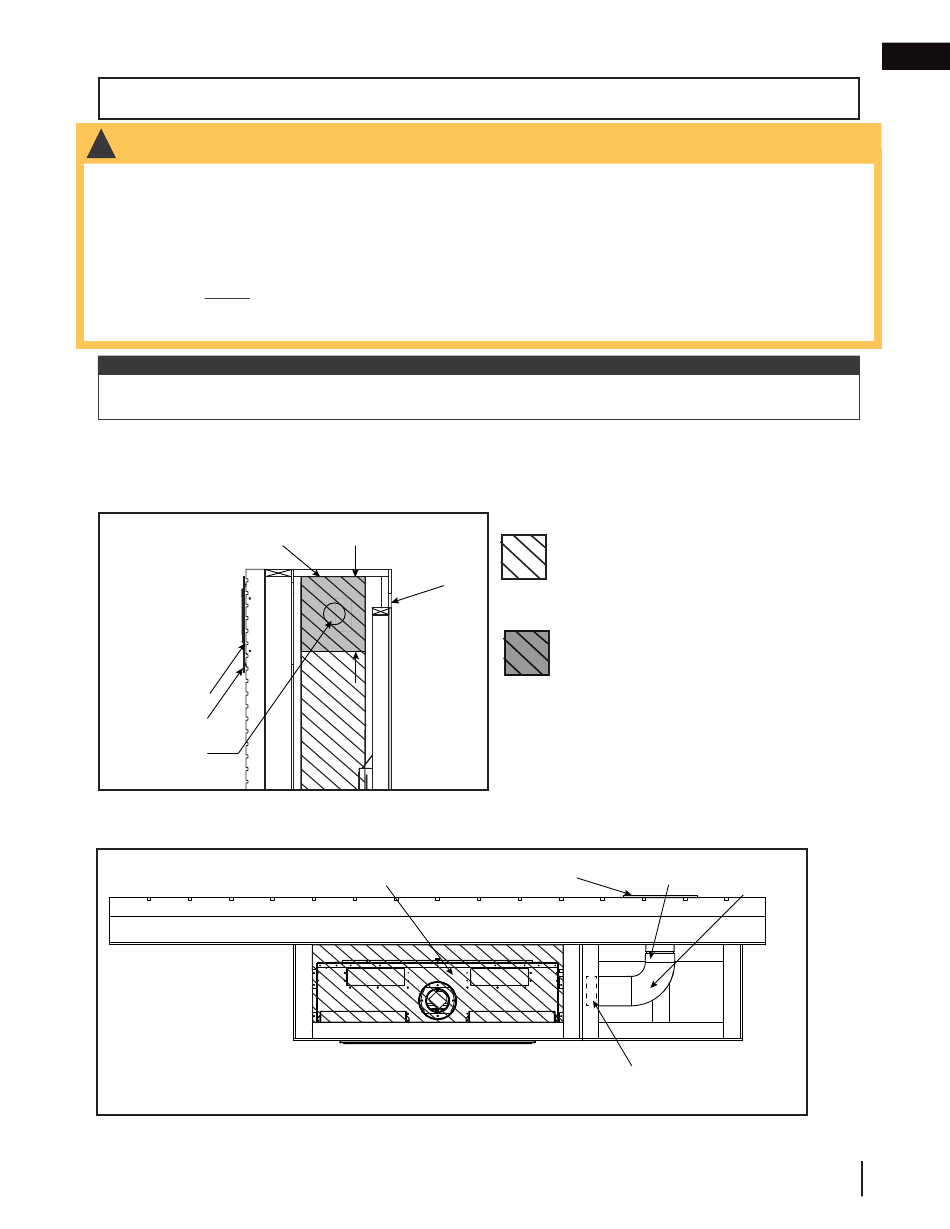

Left Side Profile View
(Remote Exterior Installation illustrated. Some components may not apply
to your unique installation.)
Exterior
Interior
(Remote Exterior Installation illustrated. Some components may not apply to your unique installation.)
Top of
12"
(30.5cm)
Air Outlet
Opening
Interior
Appliance
(LVX38 Illustrated)
Top Side View

6.0 mounting options

No materials of any type permitted in this
area with the exception of an approved
appliance vent system or the DHC™ Plus
system.
Recommended DHC™ Plus collar plate
assembly installation zone (12" [30.5cm]).
Air Damper
Exterior Housing
Assembly
Assembly
Installed 6" Collar
Plate Assembly
EN
(see "minimum
6' Rigid
Steel Venting
(not supplied)
17
