exterior installation
EN
3. Attach the exterior housing assembly to the exterior wall by securing the wall flashing using the appropriate
fasteners (not supplied) (Fig. 3).

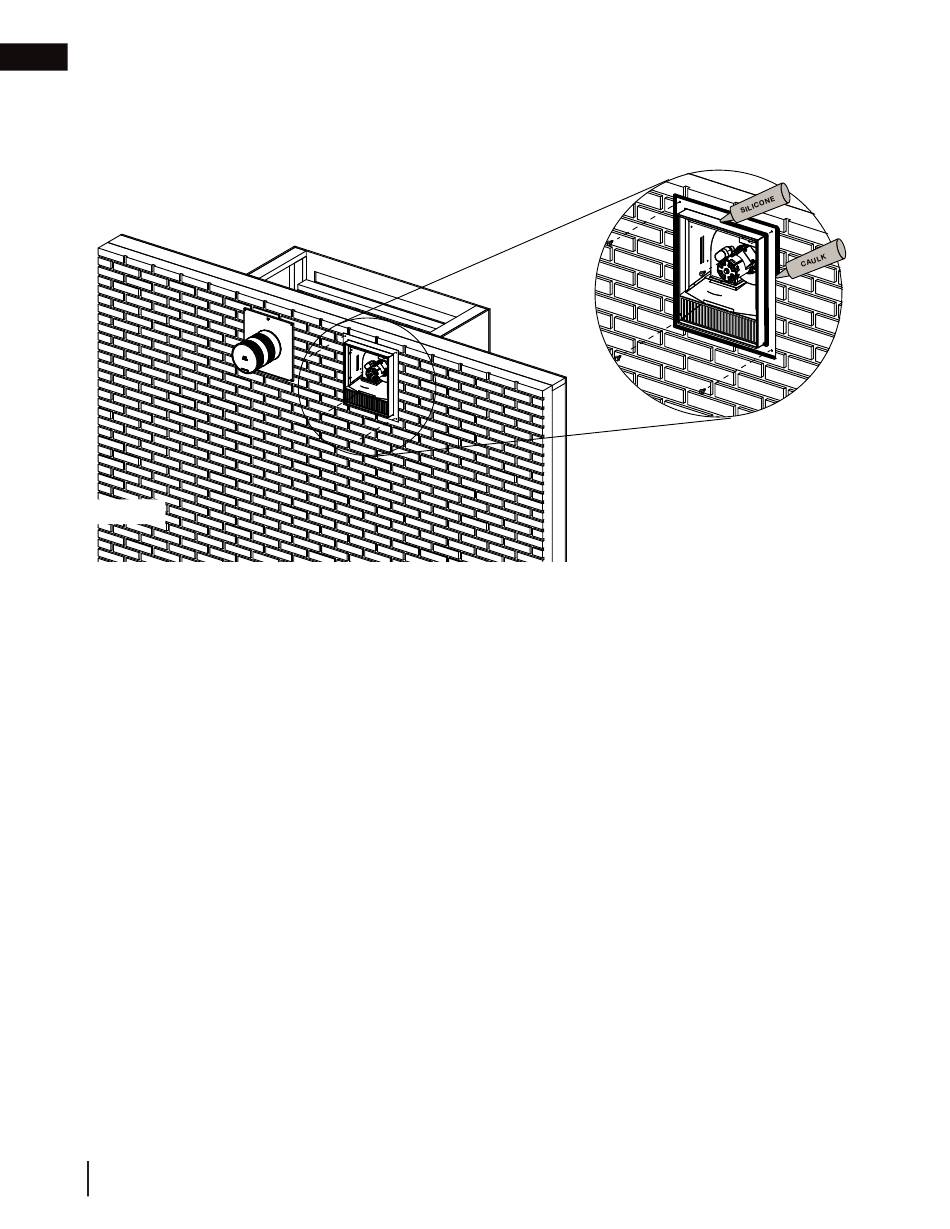

4. Apply silicone to the joint after installation, and caulk or seal the wall flashing appropriately for the finish mate-
rial (Fig. 4).
Interior
Exterior
5. We recommend installing the inline cover assembly and decorative cover last, after all electrical wiring is com-
plete. See "electrical information" section for installation instructions.
12
W415-1789 / C / 01.29.19
Exterior Installation Illustrated
Fig. 3
Fig. 4
