Minimum Framing Requirements; Ducting Installation - Napoleon DYNAMIC HEAT CONTROL PLUS Series Installation And Operation Manual

5.2

minimum framing requirements

See "minimum framing requirements" in exterior installation section for details.
5.3

ducting installation

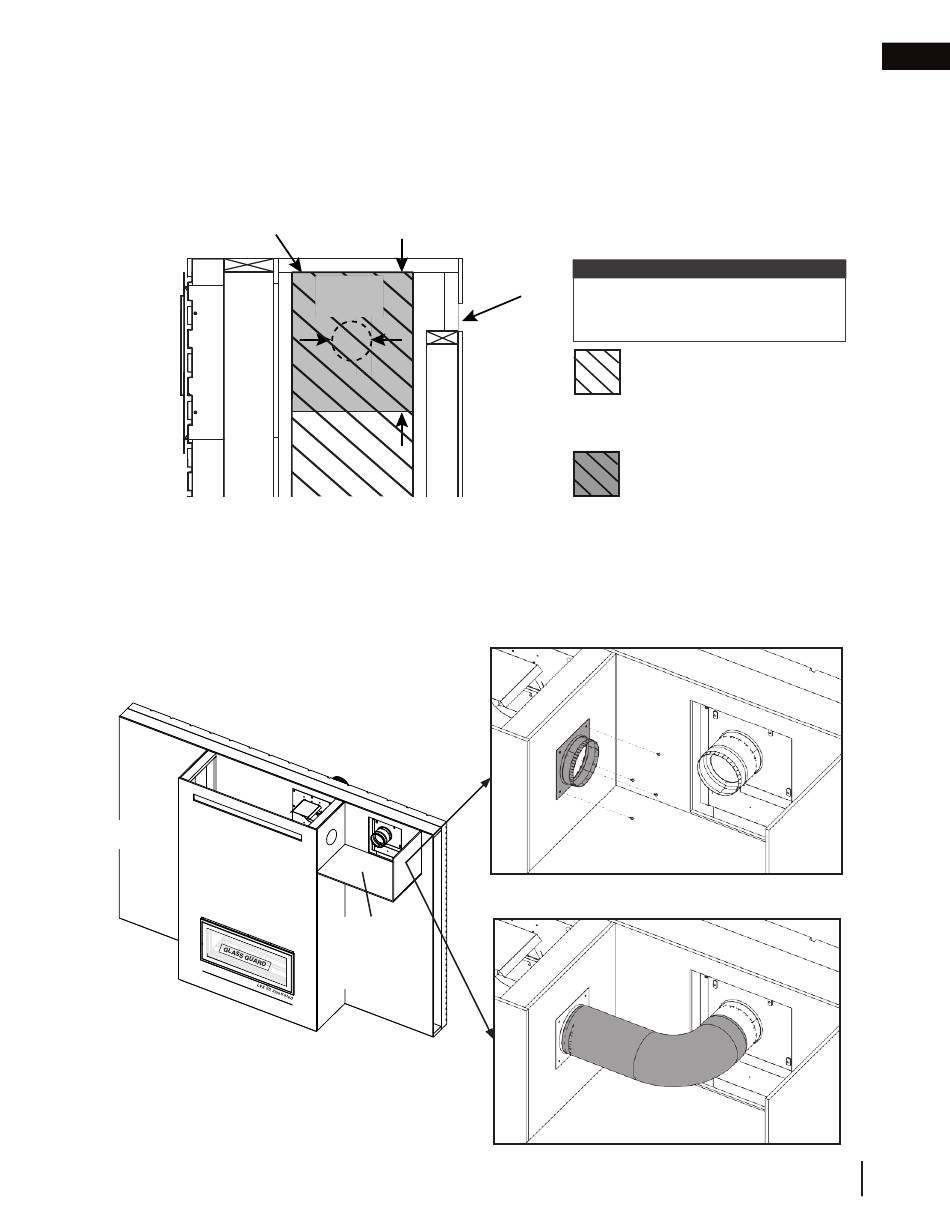

1. Determine the location for the 6" (152mm) collar plate assembly on the appliance enclosure, and then cut a
hole 6" (152mm) in diameter (Fig. 1).
Top of Enclosure
Exterior
Left Side Profile View
2. Using appropriate fasteners (not supplied), secure the 6" (152mm) collar plate assembly over the hole inside
the bulkhead (Fig. 2).
3. Install 6" rigid steel venting (not supplied) from the appliance enclosure to the blower housing assembly (Fig.
3).
Exterior
Interior
12"
(30.5cm)
Air Outlet
Ø 6"
Opening
(152mm)
Interior
Fig. 1
Inside View
of Bulkhead
(Some Framing
and Finishing
Hidden for Clarity)
remote exterior installation
note:
Ensure to create the Ø 6" (152mm)
hole within the top 12" (30.5cm) of the
enclosure (Fig. 1).
No materials of any type
permitted in this area with
the exception of an approved
appliance vent system or the
DHC™ Plus system.
Recommended DHC™ Plus
collar plate assembly installation
zone (12" [30.5cm]).
