Summary of Contents for First Degree Fitness E720A
- Page 1 USER GUIDE E720A...

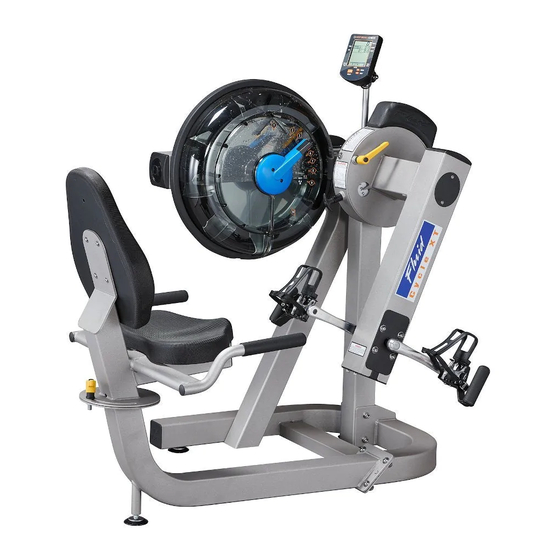

- Page 3 Training with the E720A Congratulations on your purchase of E720A. FIRST DEGREE FITNESS is proud to present the Unit as a full commercial use product featuring patented Adjustable Fluid Resistance. As with any piece of fitness equipment, consult a physician before beginning your E720A exercise program.
-
Page 4: Table Of Contents
Contents Safety ................... 5 Assembly ................7 Box Contents ................8 Assembly Instructions ............. 9 Operation Instructions Bluetooth Auto-Adjust Monitor ..........14 Calibration Procedure ............15 Maintenance & Troubleshooting Tank Belt Adjustment International Warranty ............19... -
Page 5: Safety
Safety Safety Information • Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The Unit is intended for use solely in the manner described in this manual. • UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT •... - Page 6 Inspection • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all FIRST DEGREE FITNESS equipment use only replacement parts supplied by FIRST DEGREE FITNESS. • EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating equipment as well as to keep your liability to a minimum.
-
Page 7: Assembly
Assembly Product Specifications Product Class: SC Braking System: Speed Independent Product Net Weight: 101.4kg (223.5lb) Product Gross Weight: 120.8kg (266.3lb) Maximum Safe Operating Surface Area: 253cm (99.61”) Length x 217cm (85.43”) Width Dimensions: 1330mm (52.36”) Length x 970mm (38.19”) Width x 1520mm (59.84”) Height Maximum User Weight: 150kg (330lb) Footprint:1930mm x 1570mm... -
Page 8: Box Contents
Box Contents Item Qty. Description Item Qty. Description Main Frame Right Crank Pedal Lower Seat Frame Seat Frame lubricating grease Upper Seat Frame Multi-Tool Seat Back D Cell Duracell Battery Lower Seat Touch Up Paint L-pin Funnel and Hose Leveler Owners Manual Hardware KIT M6x20mm Bolt... -
Page 9: Assembly Instructions
Assembly Instructions STEP 1 Assembly Seat Back and Lower Seat REQUIRED Seat Back[4] to Upper Seat Frame[3] using Upper Seat Frame [3] 4x M6x20mm Bolts[15] and 4x M6 Washers[17] Seat Back [4] b) Lower Seat[5] to Upper Seat Frame[3] using 4x M6x20mm Bolts[15] and 4x M6 Washers[17] Lower Seat [5] 8 x M6 x 20mm Blots [15]... - Page 10 Assembly Instructions STEP 3 Assembly Upper Seat Frame and Lower Seat Frame REQUIRED Upper Seat Frame[3] onto Main Frame[1] and secure using 1x Main Frame [1] M10x25mm Bolt[16],1x M10 Nyloc Nut[20], 2xM10 Washers Upper Seat Frame [3] [18], M10 Plastic Washer[19] and L-pin[6]. L–...
-
Page 11: Operation Instructions
360 degree range of motion. justing/tightening chain. Pull up the T-pin to allow the control arm to rotate while supporting the control arm The E720A Pedal: with the other hand. This patented design allows for usage in both the recumbent... - Page 12 (rechargeable via USB) available as an option. We recommend this to any commercial facility, with multiple units, that has a need to drain and refill Tanks from time to time. To purchase, contact your nearest First Degree Fitness distributor or go to our website on www.firstdegreefitness.com for details.
- Page 13 Operation Instructions CHANGING RESISTANCE LEVEL Changing resistance on your Unit is simple. The level of resistance is determined by the level indicator lo- cated on the front of the Tank. Level one indicates lightest resistance, level ten represents heaviest resistance. The Tank’s variable fluid resistance technology ensures an instant catch and constant resistance throughout the movement.
-
Page 14: Bluetooth Auto-Adjust Monitor
Bluetooth Auto-Adjust Monitor Auto Start: Commence exercise to activate. Reset all values: Press and hold RESET button for 3 seconds. Auto Power Down: Over 5 minutes. All values revert to zero after restart. WATT: Power measured in watts WORK: Duration of exercise segment REST: Duration of rest period POWER GRAPH: Press RESET to change display from Power Curve to Cumulative Power Graph... -
Page 15: Calibration Procedure
Calibration Procedure Press and hold 「RESET」and「REST」for 5 seconds. Display will show “ - - - - “ Turn handle to Level 1. Press Reset. Display will now show Level 2. Level 1 Calibration is complete. Turn handle to Level 2. Press Reset. -
Page 16: Maintenance & Troubleshooting
Tanks from time to time. To purchase, contact your nearest First Degree Fitness distributor or go to our website on www.firstdegreefitness.com for details. The computer display is erratic and It is possible that there is a loose connection. - Page 17 Crank Arm threads, necessitating securely tightened into replacement. Crank Arm. To ensure maximum lifespan and optimal performance follow these steps: Keep your E720A in a dry, clean climate controlled environment at room temperature. 2. Only treat water with FDF genuine Water Treatment Tablets.
-
Page 18: Tank Belt Adjustment
Tank Belt Adjustment 2. Using a long tool, push out the rear 1. Remove large metal inspection plate. end cap as pictured below left. This will give you access to the Tank tensioning Bolt (shown lower right). End Cap 3. Loosen both the rear and front Tank 4. -
Page 19: International Warranty
Metal Frame – 10 Year Limited Warranty First Degree Fitness will repair or replace the metal Main Frame should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating. - Page 20 NOUS CONTACTER Pour le soutien à la clientèle, veuillez visiter firstdegreefitness.com/support TAÏ WAN T: +886 3 478 3306 764 Chung Shan South Rd Yangmei Taoyuan Taiwan R.O.C.
