Summary of Contents for Axicon 12500 2D VERIFIER

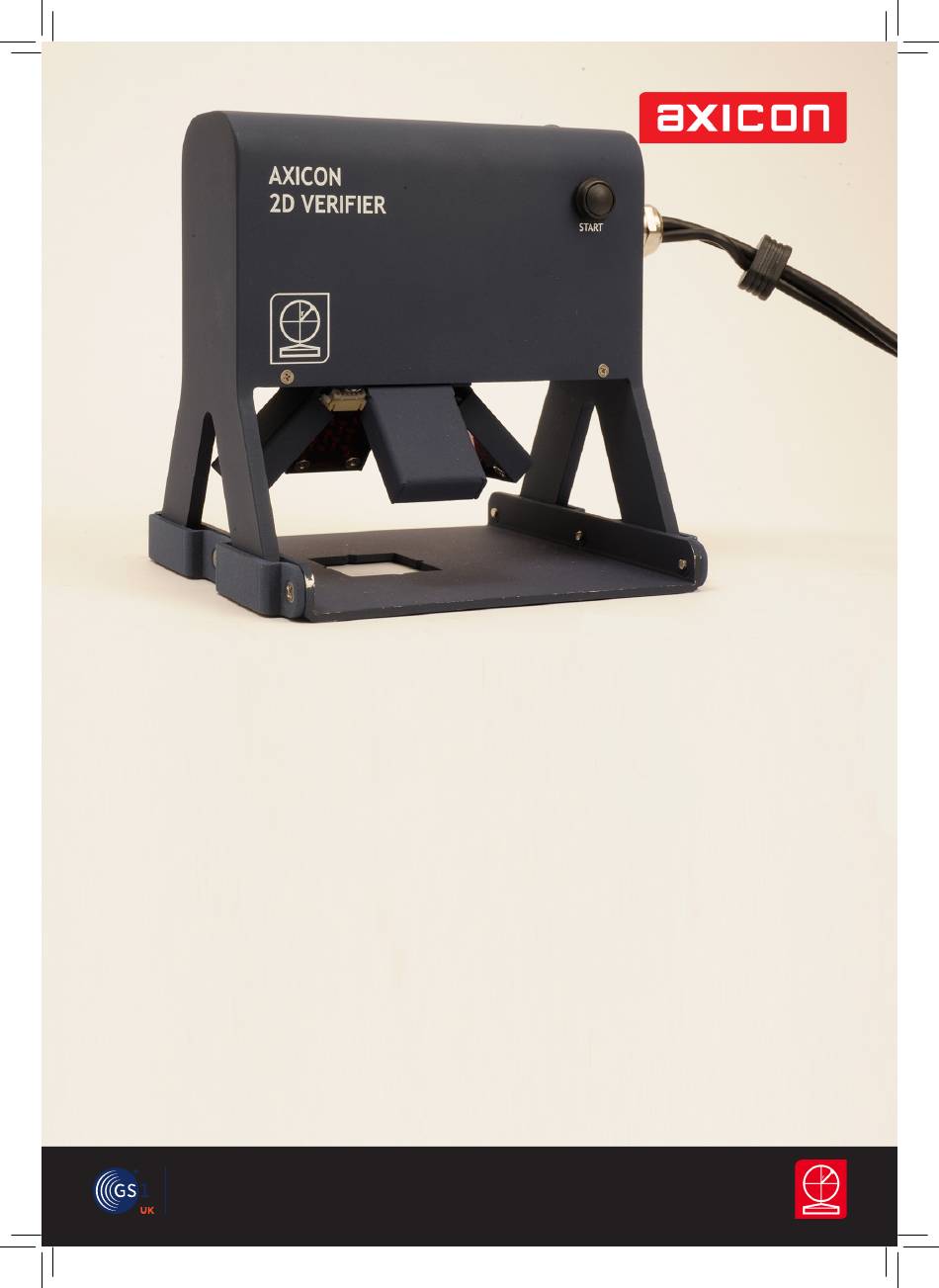

- Page 1 THE BARCODE EXPERTS Axicon 12000 & 12500 2D barcode verifier user guide Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Industry Tel: +44 (0)1869 351155 | Email: sales@axicon.com Partner Web: www.axicon.com...
- Page 2 Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 2 of 20...
-
Page 3: Table Of Contents
Contents Introduction Installation Getting started Calibration Using the verifier Setup Axicon warranty Software licence agreement Annual servicing Certificate of conformance Contact us Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 3 of 20... -
Page 4: Introduction
The unit should be returned to Axicon immediately for servicing. Axicon recommends that the verifier is factory recalibrated annually. The unit should be returned to Axicon or to your approved Axicon reseller for this check to be performed. - Page 5 Mains lead. • Wallet containing this documentation booklet, software CD and the calibration card. Optional extras Axicon also offer the following optional extras to be used in conjunction with the system: • Installation qualification and operational qualification procedural documentation. •...
-
Page 6: Installation
USB 2.0 port .NET Framework version 4.0 or later The Axicon 2D Verifier application requires the .NET Framework version 4.0 or later to be installed. The Axicon software installation process will automatically check whether the .NET framework is present, and install it if is not present. -
Page 7: Getting Started
This is provided at the beginning of this user guide. The next window that appears, Axicon 2D verifier, is the command window, and it will include a message asking you to calibrate the verifier. -
Page 8: Calibration
The red lights will flash during this process. When calibration is successful a message will appear on the command window. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 8 of 20... -
Page 9: Using The Verifier
Unused Error Correction, and the x-dimension of the symbol in µm. The print gain is measured as a percentage of the x-dimension. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 9 of 20... - Page 10 AIs in brackets, and indicates whether the data content is correct or not. Clicking in the white panel will open another window, GS1 Data Content, that provides more details as shown below. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 10 of 20...
- Page 11 The date and time of the verification, the user name, the results of any plugin that has been used, and a summary of all the individual parameters that have been graded will also be provided. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 11 of 20...
-
Page 12: Setup
FDA Title 21 CFR Part 11. Further controls are also recommended if FDA Title 21 CFR Part 11 compliance is required, and these are explained on the Axicon website. If the Data, date & time option is chosen, the file will named like this: xxxxxx- CCYYMMDD-HHMMSS, where xxxxxx represents the encoded data. - Page 13 200 µm (8 mils), as defined by the GS1 General Specifications. The pass grade may also be changed from the default value of 1.5. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 13 of 20...
- Page 14 The option for averaging five scans is now redundant as the standard, ISO/IEC 15415, no longer requires this for the verification process. Axicon Auto ID Limited | 12000 & 12500 user guide | June 2017 Page 14 of 20...
-
Page 15: Axicon Warranty
Axicon warranty The Axicon 12000 or 12500 is sold with a one year parts and labour warranty against manufacturing defects. This is a return to bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to us the original case (plus appropriate packaging) must be used. -
Page 16: Software Licence Agreement
Software licence agreement This software is Copyright © 2008-2016 Axicon Auto ID Limited. Use of the software is subject to the Axicon software licence terms set out below. Using the software indicates your acceptance of these licence terms. If you do not accept these licence terms within 14 days, you may return the entire unused product for a full refund. - Page 17 Neither Axicon Auto ID Limited nor the vendor of this verifier can accept any liability for any loss or damage (consequential or otherwise) which may be caused by its use.
- Page 18 Return the verifier (including all cables) in its original case with the completed RMA form, purchase order and your payment details to us at Axicon Auto ID Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take responsibility for units returned in alternative packaging.
-
Page 19: Annual Servicing
Authorised signatory Signatory Name At or before the expiry date the verifier should be returned to Axicon for its annual servicing. This VCAS (verifier conformance and alignment service) will ensure that the verifier remains conformant to ISO/IEC 15426-2 for another year. -
Page 20: Contact Us
+44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
