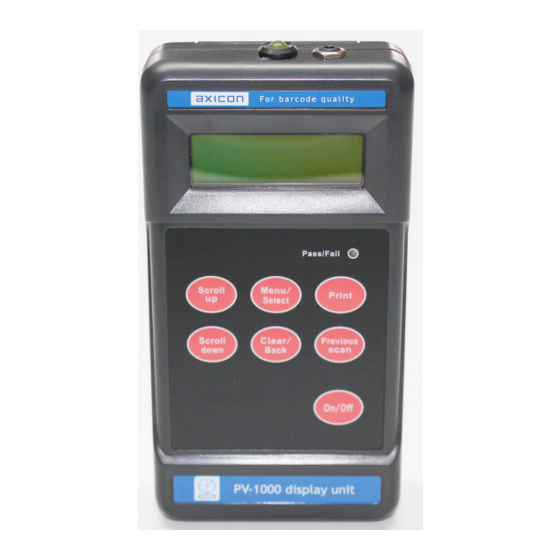

Portable display unit

Advertisement

Quick Links

Axicon PV-1000
portable display unit
operating manual
Industry
Partner
Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK
Tel: +44 (0)1869 351155 | Email: sales@axicon.com
THE BARCODE EXPERTS
Web: www.axicon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-1000 and is the answer not in the manual?

Questions and answers

Rick Lincoln
April 3, 2025

can I buy new battery connections for this unit

Subscribe to Our Youtube Channel

Summary of Contents for Axicon PV-1000

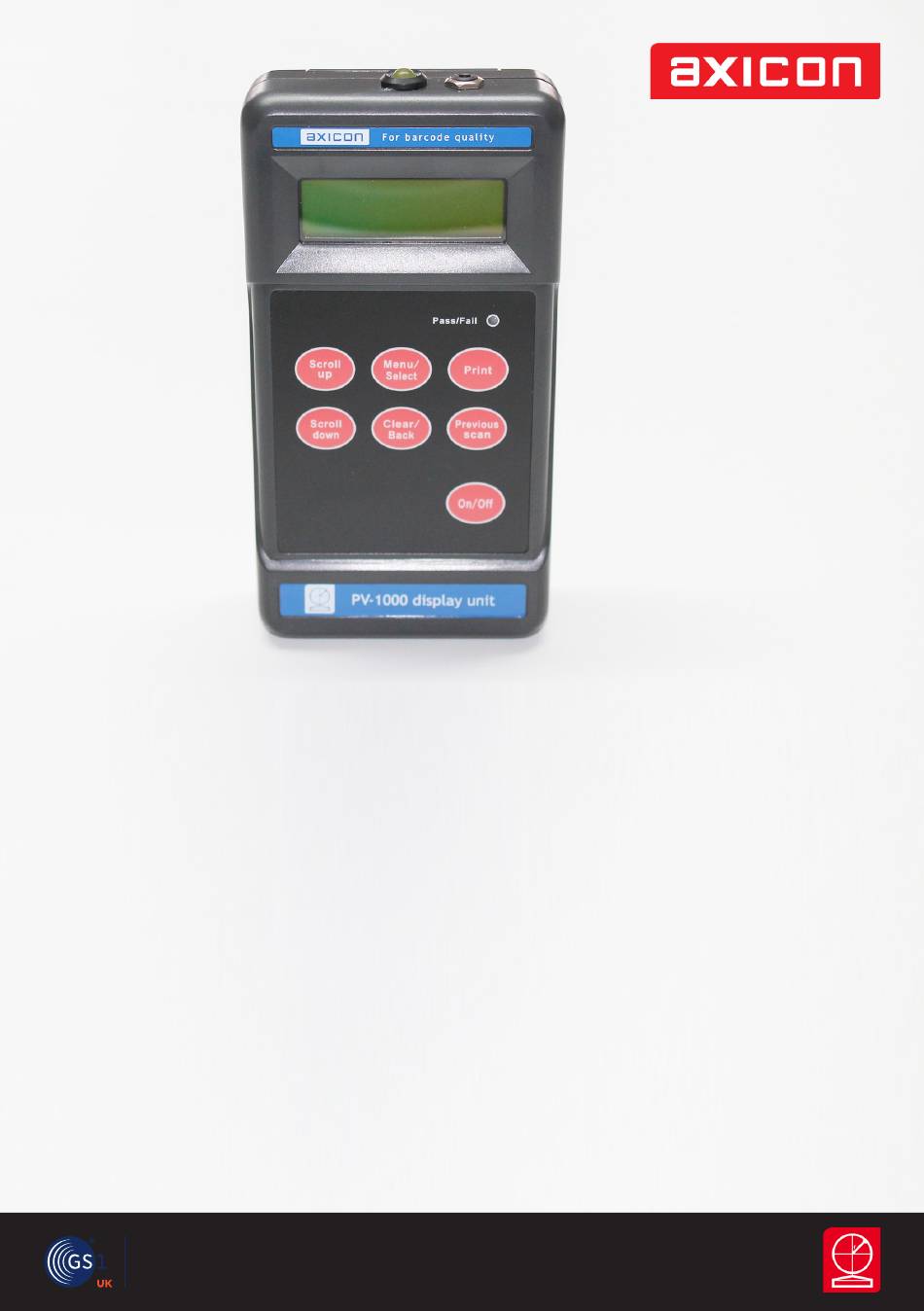

  • Page 1 THE BARCODE EXPERTS Axicon PV-1000 portable display unit operating manual Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Industry Tel: +44 (0)1869 351155 | Email: sales@axicon.com Partner Web: www.axicon.com...
  • Page 2 Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 2 of 24...
  • Page 3: Table Of Contents

    ISO/IEC or ANSI grades Menu screen formats Frequently asked questions Technical specifications Software licence agreement Axicon warranty Declaration of ISO/IEC Declaration of CE Contact us Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 3 of 24...
  • Page 4: Important Information

    The Axicon PV-1000 portable display unit is designed to operate in conjunction with any of the Axicon 6000, 6500 or 7000 series verifiers. Please note that the Axicon PV-1000 cannot be used in conjunction with any of the Axicon S range verifiers.
  • Page 5: Introduction

    What is in the case. The PV-1000 ISO/ANSI portable display unit. Documentation wallet containing the operating manual. A set of four AA-sized alkaline batteries (supplied in UK only). Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 5 of 24...
  • Page 6: Getting Started

    Observe the correct polarity when inserting the batteries. Ensure their output is at least 2500 mAh. Plug in an Axicon 6000, 6500 or 7000 series verifier to the USB port on the base of the PV-1000. Switch on the verifier by pressing the on/off switch.
  • Page 7: Calibration

    Calibration The calibration card is supplied with the PV-1000 and is kept in the wallet. With the Ready to Scan message showing on the screen, Press the Menu/select key. And the screen will show ► Information Press the button until the screen displays Scroll down ►...
  • Page 8: Using The Pv-1000

    Multi-scan averaging The PV-1000 allows you to take up to 10 scans of a barcode at different points throughout the height of the barcode which will be averaged automatically to grade the barcode.
  • Page 9 Automatic saving facilities are also included as an option, and the files are saved in two formats. The first is a text-file, and the second is the Axicon .scn format. This second format can be viewed using the Axicon PC verifier software.
  • Page 10 (the .scn files) that Scans have been saved. These files may be uploaded to a PC and viewed using the Axicon PC verifier software. Data from these files may also be merged into a quality management document using the Axicon Scan File Data Extractor plugin.
  • Page 11: Configuration Set-Up

    Configuration set-up Setting date and time The PV-1000 has its own clock, so the user scan set the date and time which will be recorded with each record. To set the date and time, press the Menu/Select button to see the message ►...
  • Page 12 Configuration set-up Power Management The PV-1000 has facilities for the user to control the elapsed time before Sleep Mode Power Off are enabled. To set the Sleep Mode button to see the message ► On the main screen press the...
  • Page 13: Iso/Iec Or Ansi Grades

    ISO/IEC or ANSI grades By default the PV-1000 will display the final barcode quality grade in the ISO/IEC format such as 2.0/06/660 where the 2.0 is the print quality grade, 06 the aperture reference number and 660 is the wavelength of light used expressed in µm.
  • Page 14: Menu Screen Formats

    Set Rmax Calibrate Setup Average No Pass grade Units Language Autosave Show ANSI Time Time zone Time Date Power Sleep Power off Printer Trailing LF Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 14 of 24...
  • Page 15: Frequently Asked Questions

    Whether using alkaline or rechargeable batteries, make sure they have a rating of at least 2500 mAh (one that is suitable for powering a motor or similar device). How many scans can I store in my PV-1000 before I have to transfer them to a computer? If three-scan verifications are made, approximately 1000 scan files can be saved before they need to be transferred.
  • Page 16 Press to confirm the language Menu/Select Press twice to return to the Message. Clear/Back Ready to scan Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 16 of 24...
  • Page 17: Technical Specifications

    © Copyright information The Axicon software embedded in the PV-1000 together with any accompanying Axicon software is the copyright of Axicon Auto ID Ltd and is subject to the software licence described below. This manual is copyright to Axicon Auto ID Ltd and may not be reproduced in whole or in part, nor may it be stored in any electronic storage or retrieval system without the express permission in writing from a director of Axicon Auto ID Ltd.
  • Page 18: Software Licence Agreement

    Software licence agreement This software is Copyright © Axicon Auto ID Limited. Use of the software in the PV-1000 is subject to the Axicon software licence terms set out below. Using the software indicates your acceptance of these licence terms.
  • Page 19 Axicon Auto ID Limited is limited to the cost of the product. You should bear this limitation in mind if you use this display unit in any situations where the acceptance or rejection of shipments of goods or your reputation may depend upon the quality of a barcode.
  • Page 20: Axicon Warranty

    Axicon warranty The Axicon PV-1000 is sold with a one year parts and labour warranty against manufacturing defects. This is a Return to Bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to Axicon the original case (plus appropriate packaging) must be used.
  • Page 21: Declaration Of Iso/Iec

    ISO/IEC 24724 GS1 DataBar bar code symbology specification We also certify that this equipment conforms to ISO/IEC 15426-1 barcode verifier conformance standard for linear symbols. Martin Morrison Managing Director Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 21 of 24...
  • Page 22 Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 22 of 24...
  • Page 23: Declaration Of Ce

    This equipment meets the requirements of the directives 2004/108/EC (Electromagnetic Compatibility), 2006/95/EC (Low Voltage), based on our own relevant test reports. Martin Morrison Managing Director Axicon Auto ID Limited | PV-1000 operating manual | January 2022 Page 23 of 24...
  • Page 24: Contact Us

    +44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
